Valve Seat
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

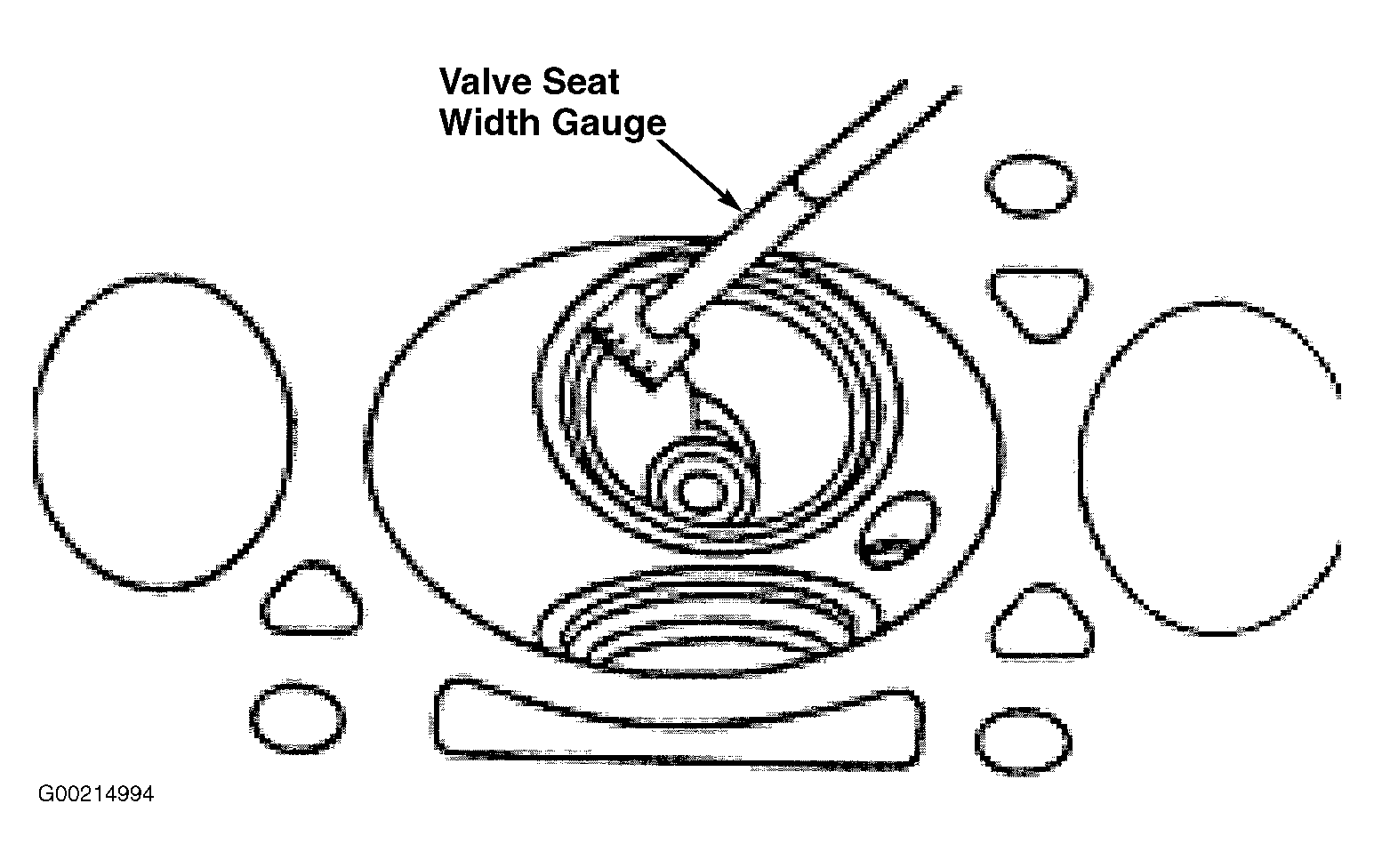

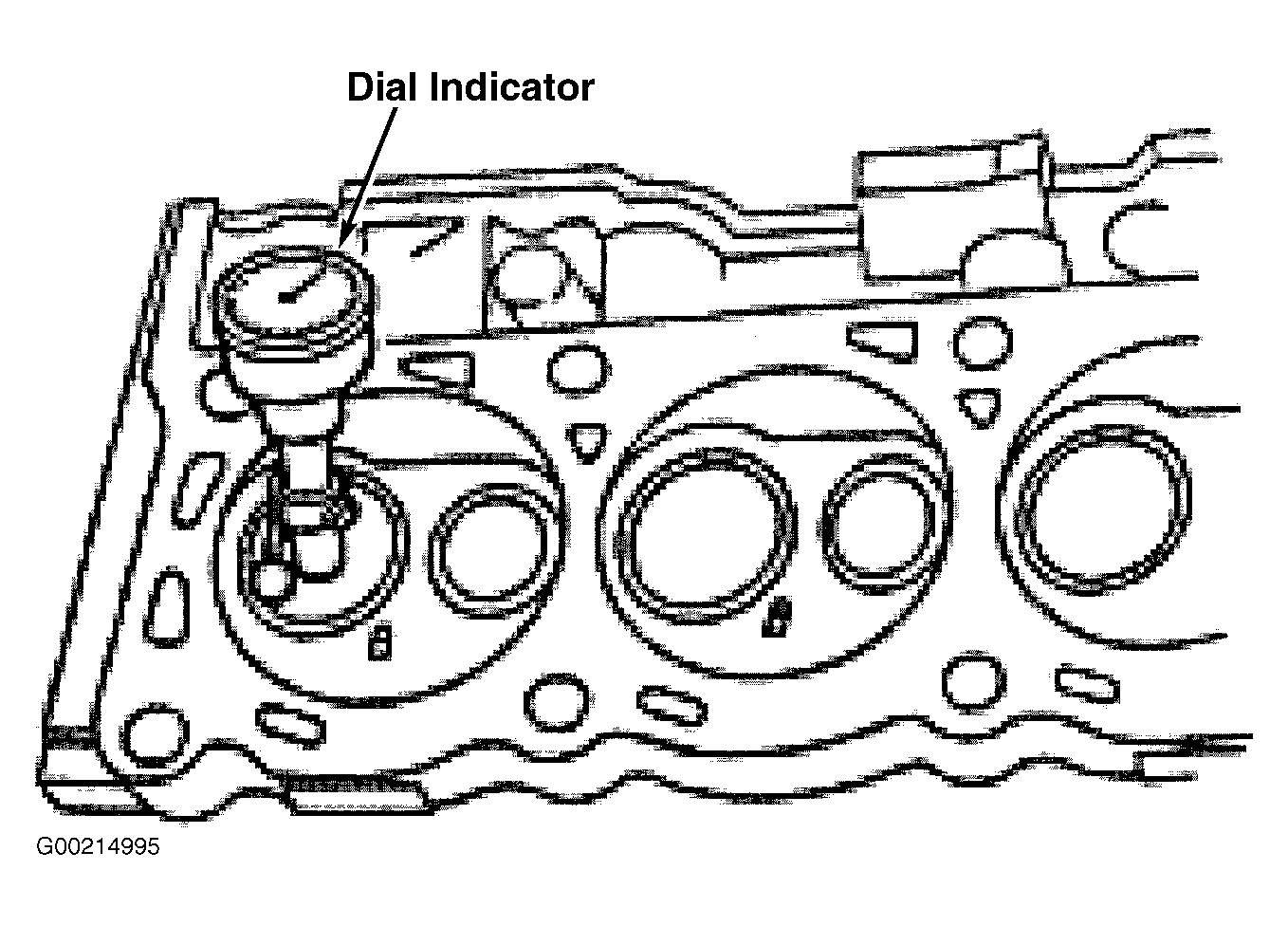

Check valve seat width and runout. See Fig 1 and Fig 2 . Grind valve seat if not within specification. See CYLINDER HEAD table under ENGINE SPECIFICATIONS. Ensure valve spring installed height is correct after grinding valve seats. See VALVE SPRINGS .
