Oil Cooler Assembly: Removal
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect negative cables. Drain cooling system. See COOLING SYSTEM BLEEDING under REMOVAL & INSTALLATION. Raise and support vehicle.

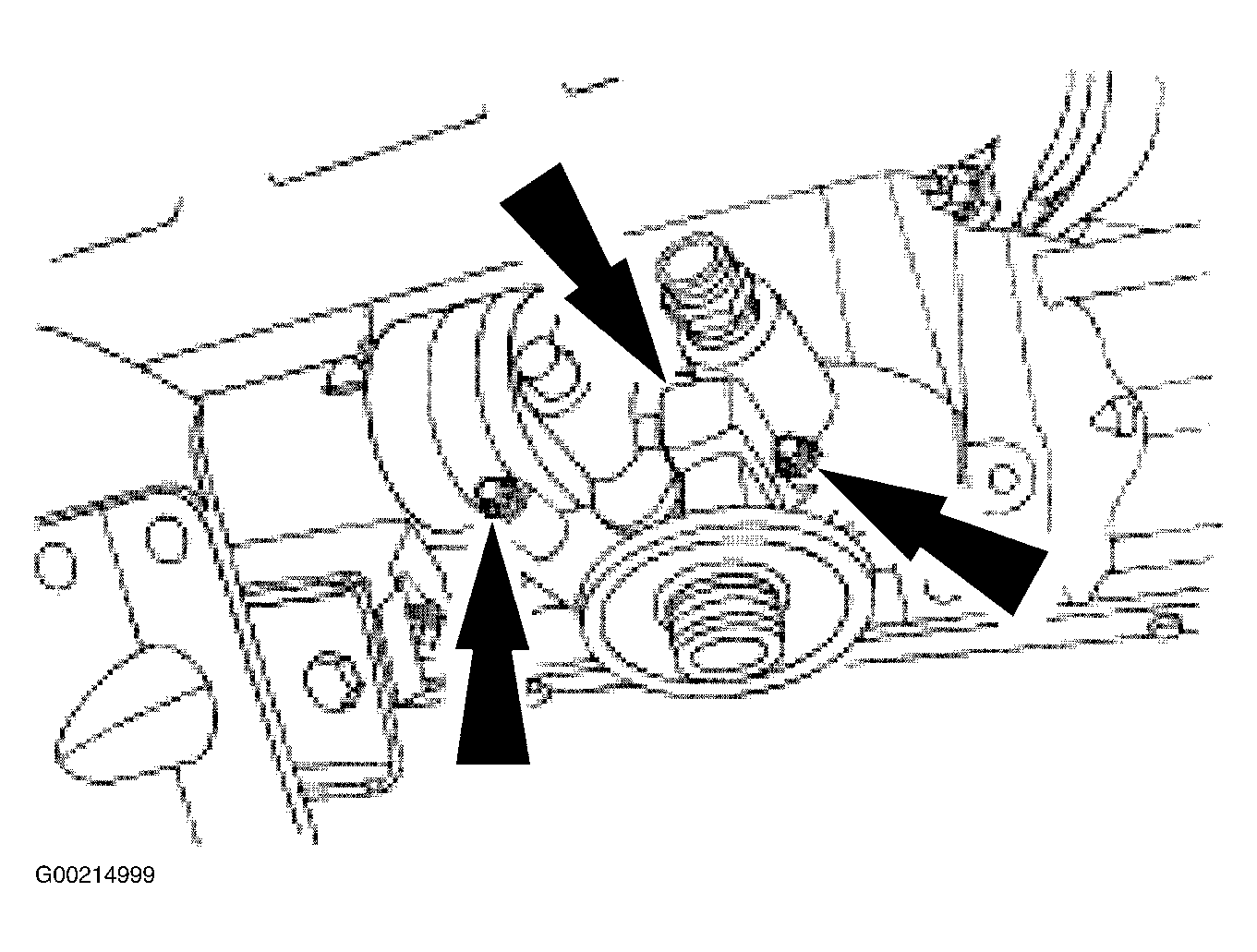

- Disconnect exhaust pipe at turbocharger for access to oil cooler if necessary. Remove oil cooler front header-to-cylinder block bolts. See Fig 1. Drain engine oil into a suitable drain pan and remove oil filter.
- Disconnect retainer and cable from cylinder block heater. See Figure. Cylinder block heater is located on driver-side rear corner of cylinder block, just below exhaust manifold, near oil filter.
- Remove oil cooler rear header-to-cylinder block bolts. See Fig 2. Remove oil cooler assembly and gaskets.
