Low Pressure Oil Pump: Inspection
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect components for damage and wear. Install inner and outer rotors in low pressure oil pump body. Place straightedge across low pressure oil pump body so it is above both rotors.

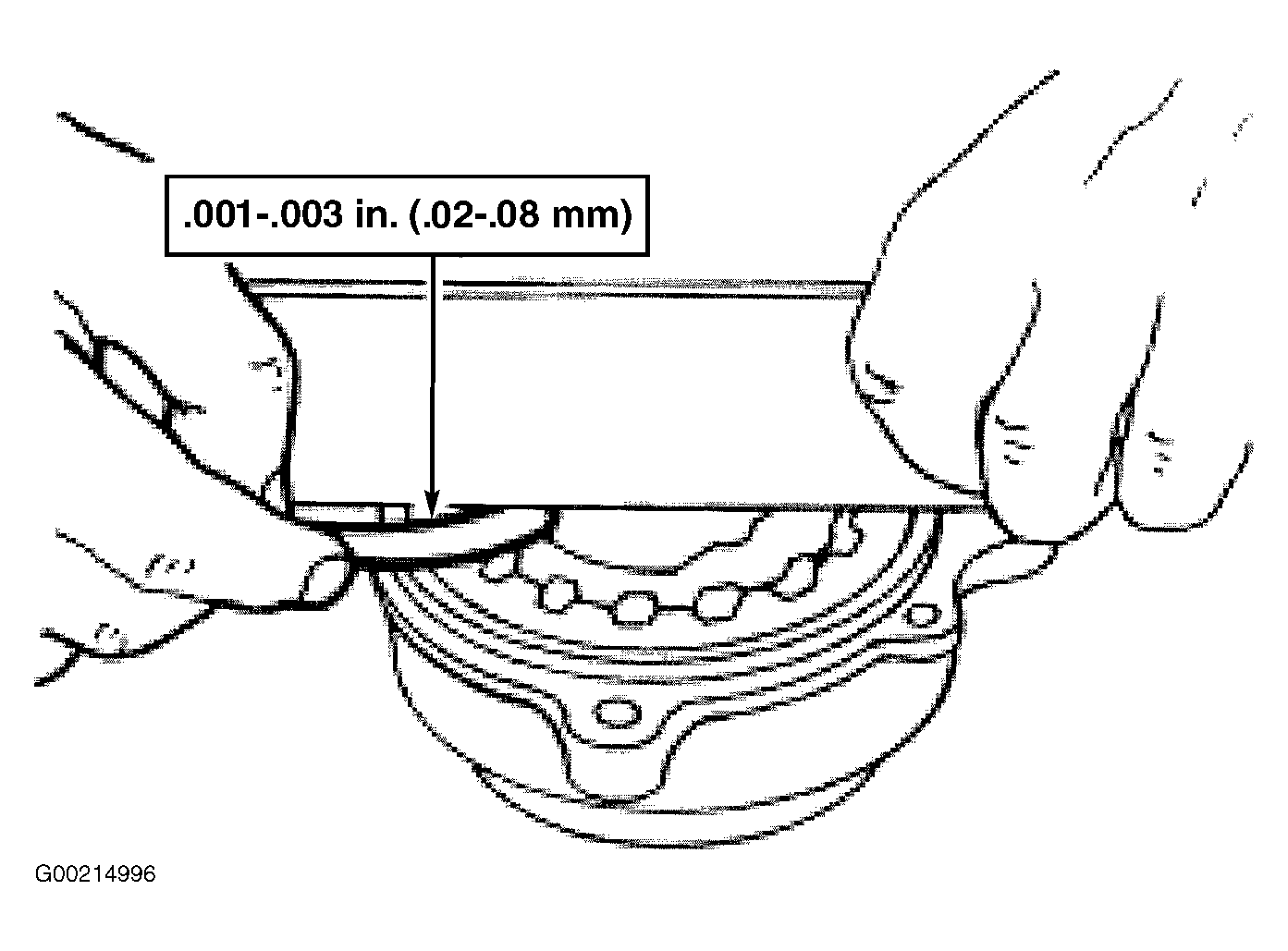

- Using feeler gauge, measure rotor end clearance between rotor and straightedge. See Fig 1. Rotor end clearance should be .00078-.00315" (.020-.080 mm).

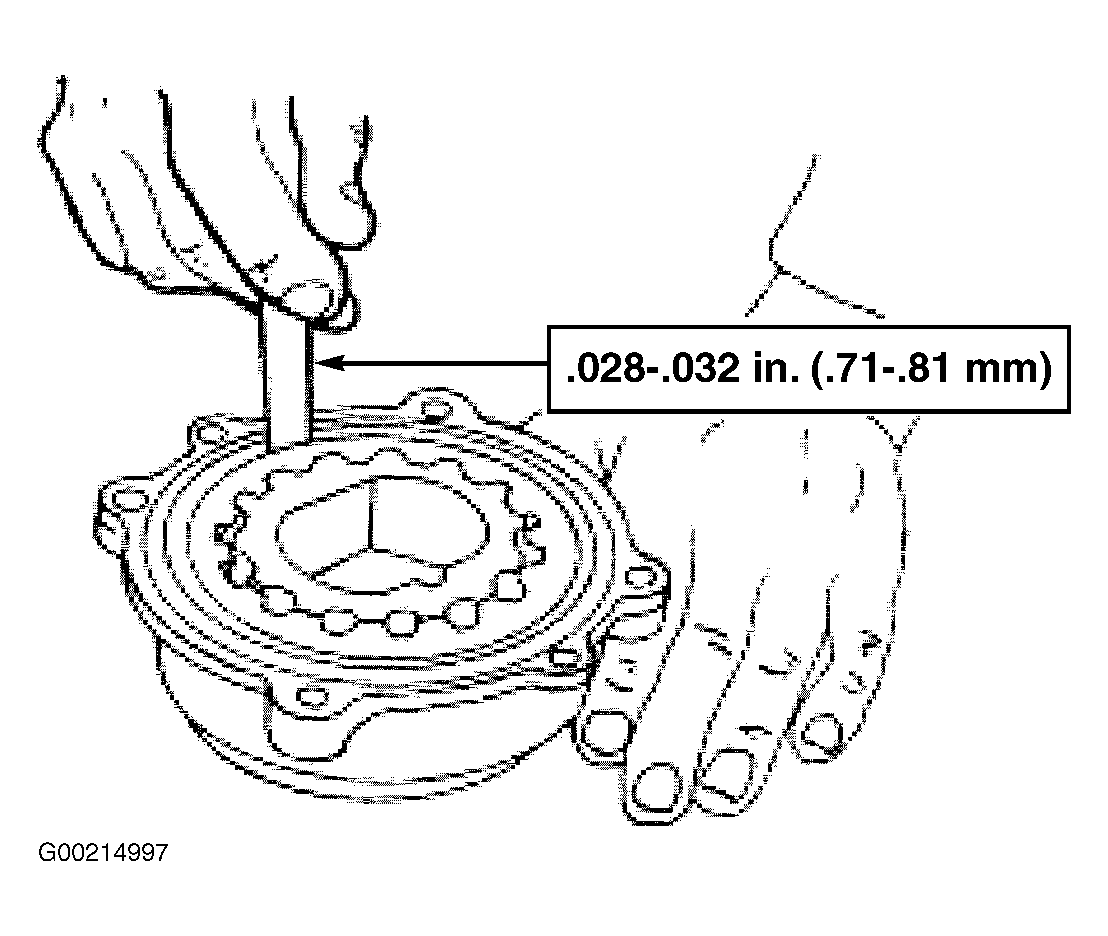

- With both rotors installed in low pressure oil pump body, use feeler gauge to measure clearance between outer edge of outer gerotor and oil pump body. See Fig 2.
- Outer gerotor-to-oil pump body clearance should be .02795-.03189" (.71-.81 mm). Replace low pressure oil pump if any measurement is not within specification.
