Drive Shaft Slip Yoke: Disassembly

WARNING: This page is about a different car, the 2002 Ford Pickup, 2002 Ford F550 Super Duty, 2002 Ford F450 Super Duty, 2002 Ford Excursion, and 2002 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the drive shaft on a suitable workbench. DO NOT damage the drive shaft tube. Remove the drive shaft slip yoke from the drive shaft. Cut and discard the drive shaft slip yoke boot clamps.
  2. Index mark the drive shaft slip yoke and the stub shaft. See Fig 1. Cut and discard the drive shaft slip yoke boot clamps. Separate the drive shaft slip yoke from the stub shaft and remove the drive shaft slip yoke.
  3. Remove and discard the drive shaft slip yoke boot. Check the lubricant for contamination. If the lubricant feels gritty, clean and inspect the stub shaft and drive shaft slip yoke for wear. See Fig 2. Install NEW components as necessary.
Fig 1: Identifying Drive Shaft Slip Yoke & Stub Shaft Index Marks
G00199305Courtesy of FORD MOTOR CO.

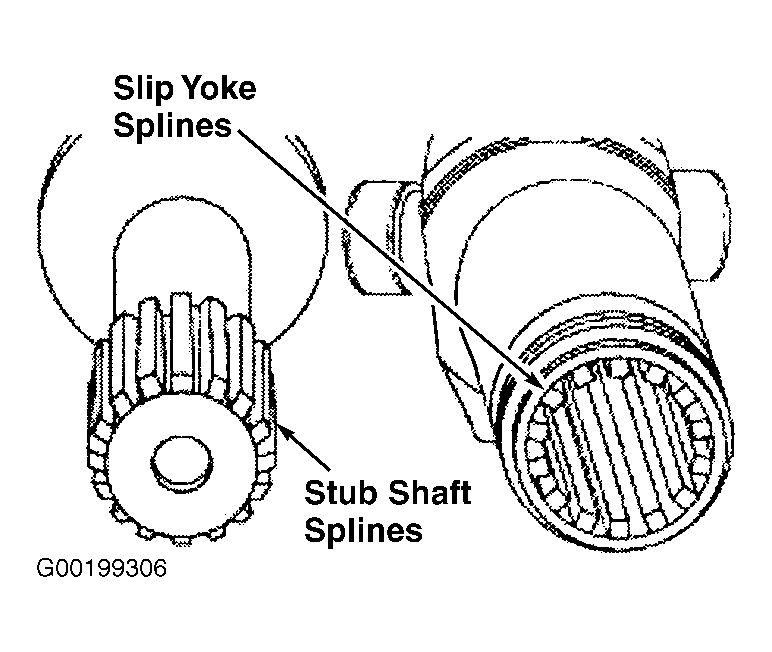

Fig 2: Inspecting Stub Shaft & Slip Yoke Splines
G00199306Courtesy of FORD MOTOR CO.
