Pilot Bearing: Removal
WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

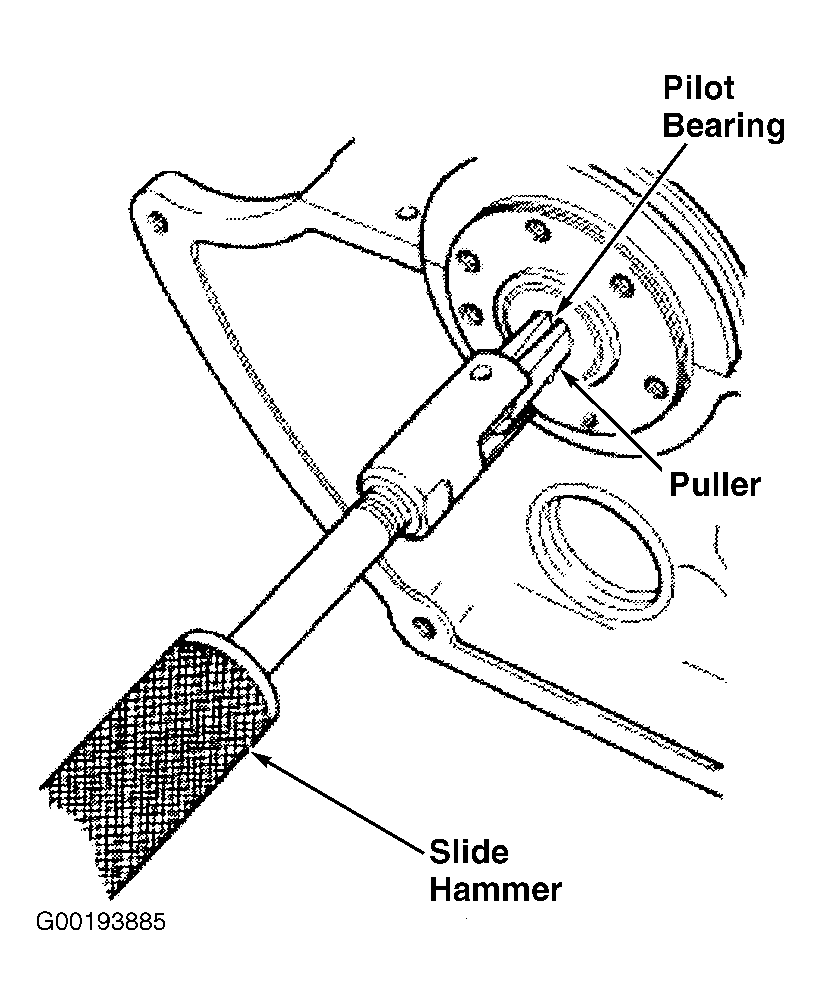

Remove transmission. See TRANSMISSION . Remove flywheel. See FLYWHEEL . Using Impact Slide Hammer (307-005, T59L-100-B), Puller (308-001, T58L-101-B) and remove the transmission input shaft pilot bearing. See Fig 1 or Fig 2 .
