Pilot Bearing: Installation

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: On F150 models, pilot bearing can only be installed with the seal facing the transmission. The pilot bearing is pre-greased and does not require additional lubrication. A NEW pilot bearing must be installed whenever it is removed. Never install a used transmission input shaft pilot bearing.

Using the Pilot Bearing Replacer (308-105, T85T-7137-A), install the pilot bearing. See Fig 1 .

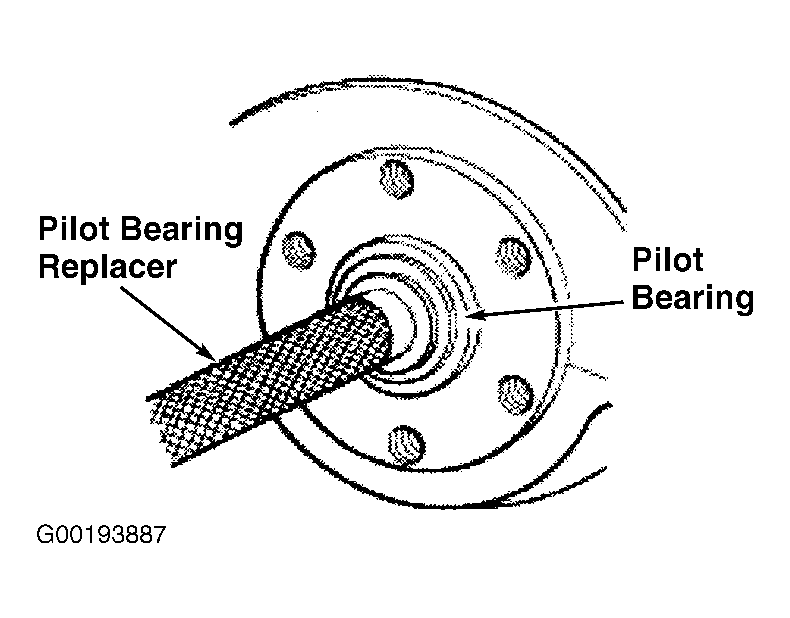

Fig 1: Installing Pilot Bearing (All Models)

Courtesy of FORD MOTOR CO.
