Installation (F150)

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Position the flywheel and install the bolts. Tighten the bolts to specification in 2 stages:

Loosely install the flywheel bolts.
Tighten the flywheel bolts in sequence to specification. See Fig 1 . See TORQUE SPECIFICATIONS .

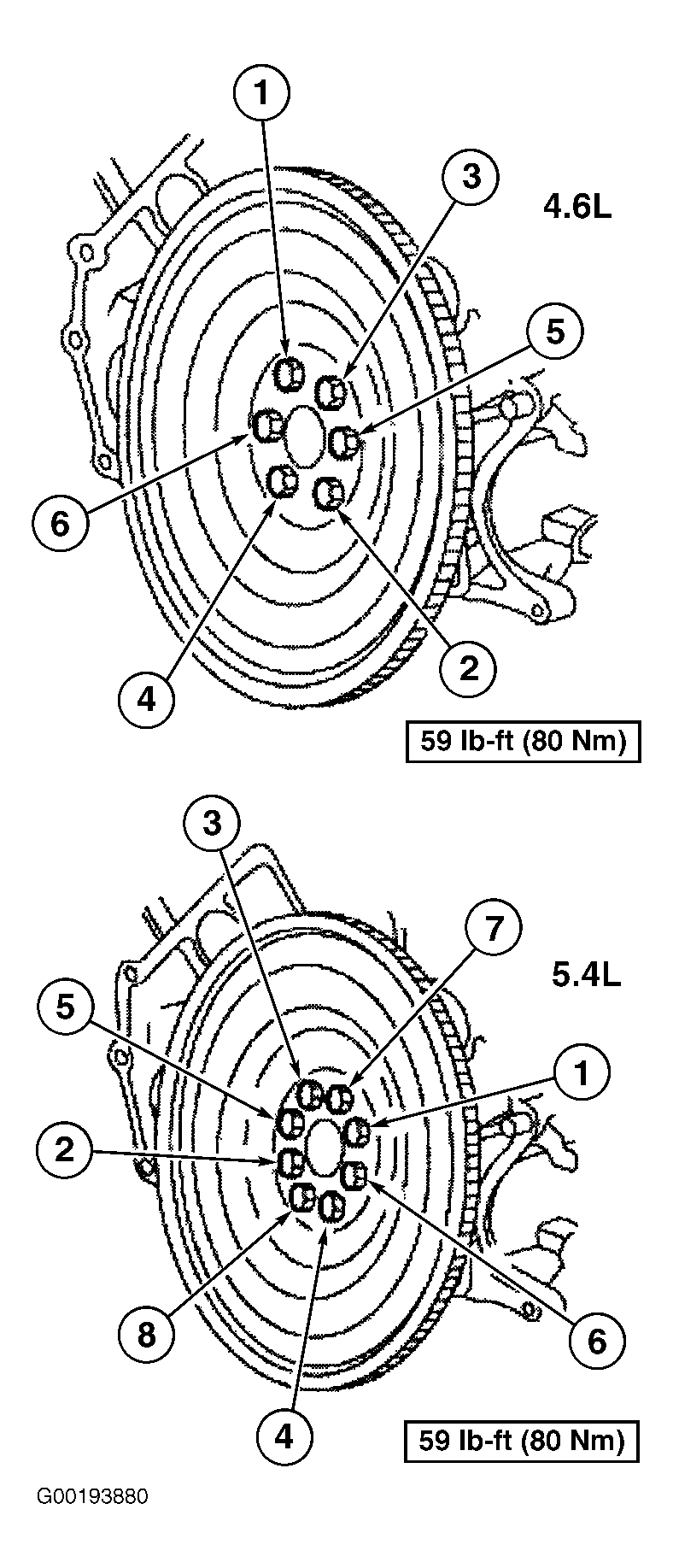

Fig 1: Identifying Flywheel Bolt Torque Sequence (F150 - 4.2L, 4.6L & 5.4L)

Courtesy of FORD MOTOR CO.
