Installation (F150)
WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

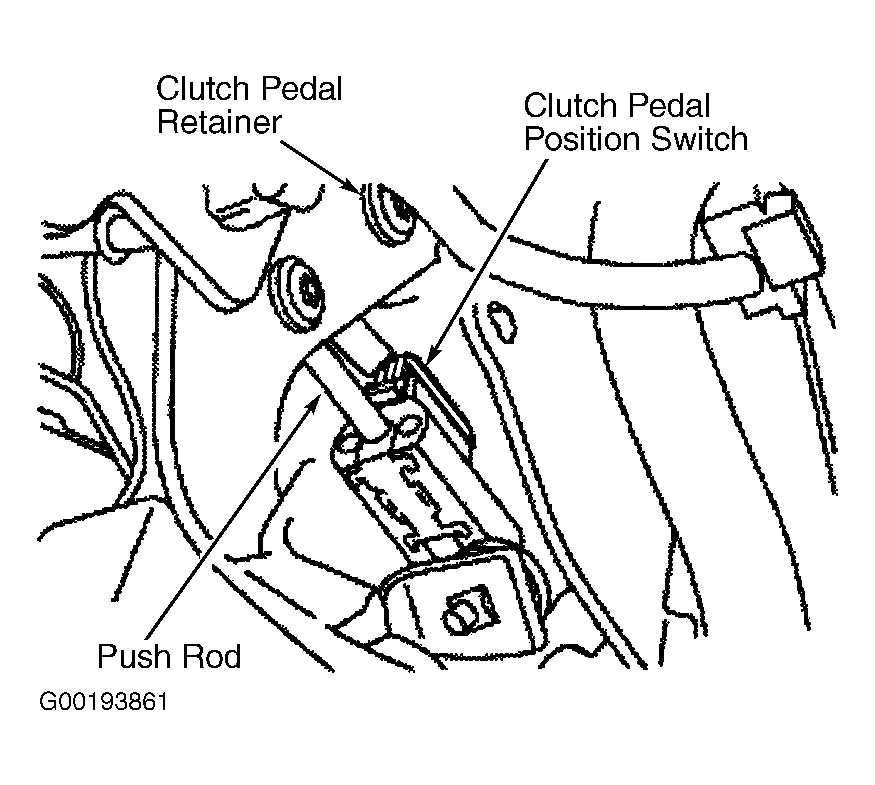

Install the clutch pedal assembly by installing the clutch pedal bushings and washers. Install the clutch pedal shaft threads, the clutch/brake pedal support and brake pedal. Install the retainer ring. Install the clutch master cylinder push rod to pedal pin. See Figure .
