Clutch Master Cylinder & Reservoir (F150): Removal
WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the clutch master cylinder push rod from the clutch and brake pedal pivot shaft lever. Disconnect the Clutch Pedal Position (CPP) switch. See Fig 1 .
- Remove the pushpins and remove clutch master cylinder reservoir. See Fig 2 . Raise and support the vehicle. Disconnect the clutch hydraulic line from the slave cylinder.

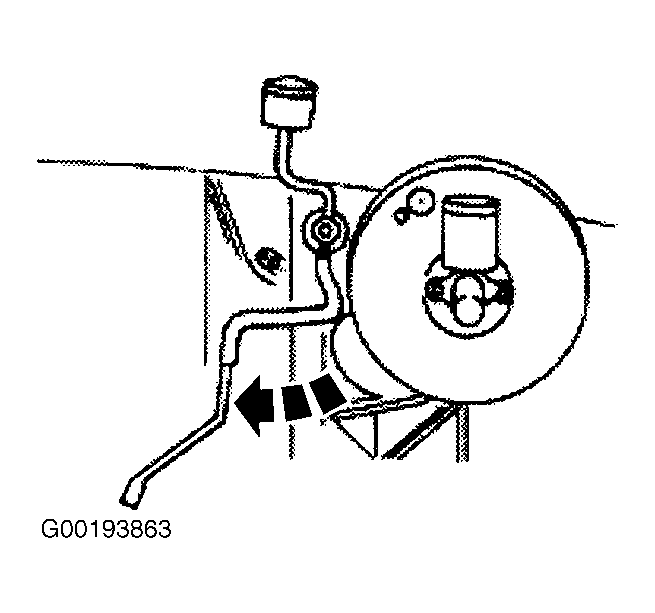

- Lower the vehicle. Remove the clutch master cylinder reservoir and clutch master cylinder. Rotate the clutch master cylinder 45 degrees clockwise. See Fig 3 . Clean all clutch master cylinder components.
NOTE:
On vehicles equipped with air suspension, prior to raising vehicle, turn off electrical power supply to air suspension system. Air suspension switch is located in right side kick panel area.
CAUTION:
Clean all rubber clutch master cylinder parts with High Performance DOT 3 Motor Vehicle Brake Fluid (C6AZ-19542-AB).
