Removal & Installation

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

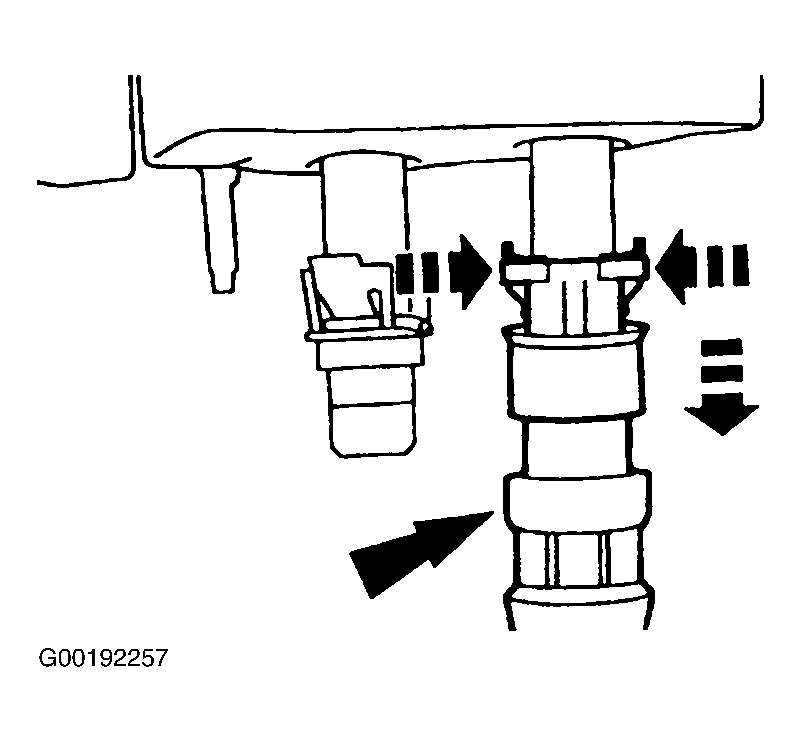

  1. Remove battery and battery tray brackets. Drain cooling system. Remove instrument panel. See appropriate INSTRUMENT PANELS article in ACCESSORIES & EQUIPMENT. Disconnect heater hoses from heater core. See HEATER HOSE COUPLING . See Figure. Remove 2 plenum assembly nuts from engine compartment. See Fig 1.
  2. Remove 2 plenum assembly nuts from under instrument panel. See Fig 2. Lower plenum assembly and remove assembly from vehicle. To install, reverse removal procedure.

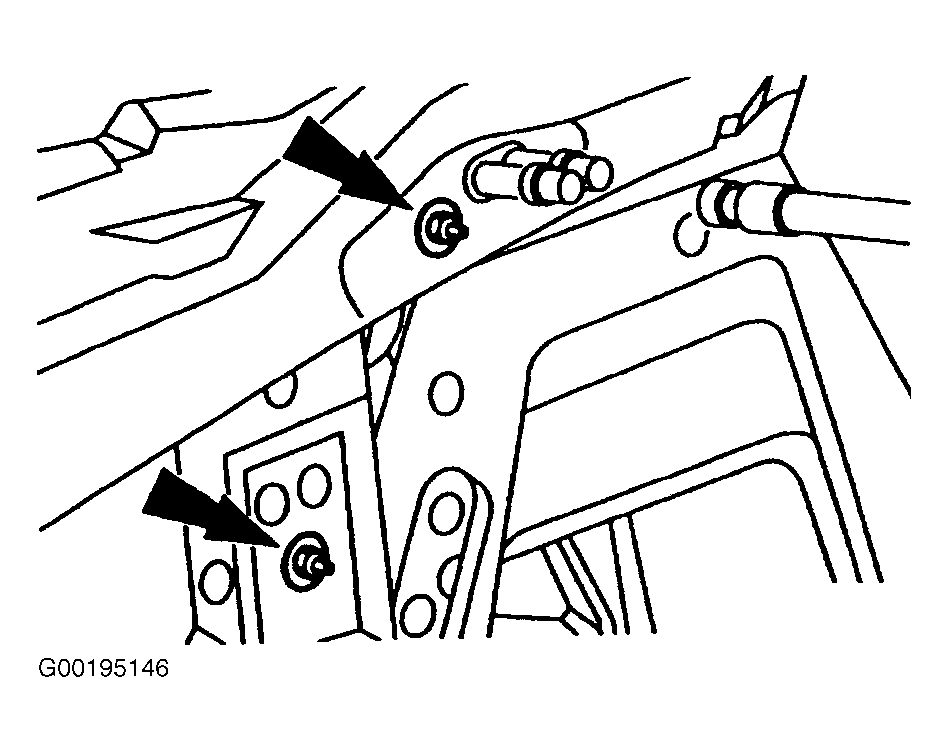

Fig 1: Removing & Installing Plenum Assembly Engine Compartment Nuts
G00195146Courtesy of FORD MOTOR CO.

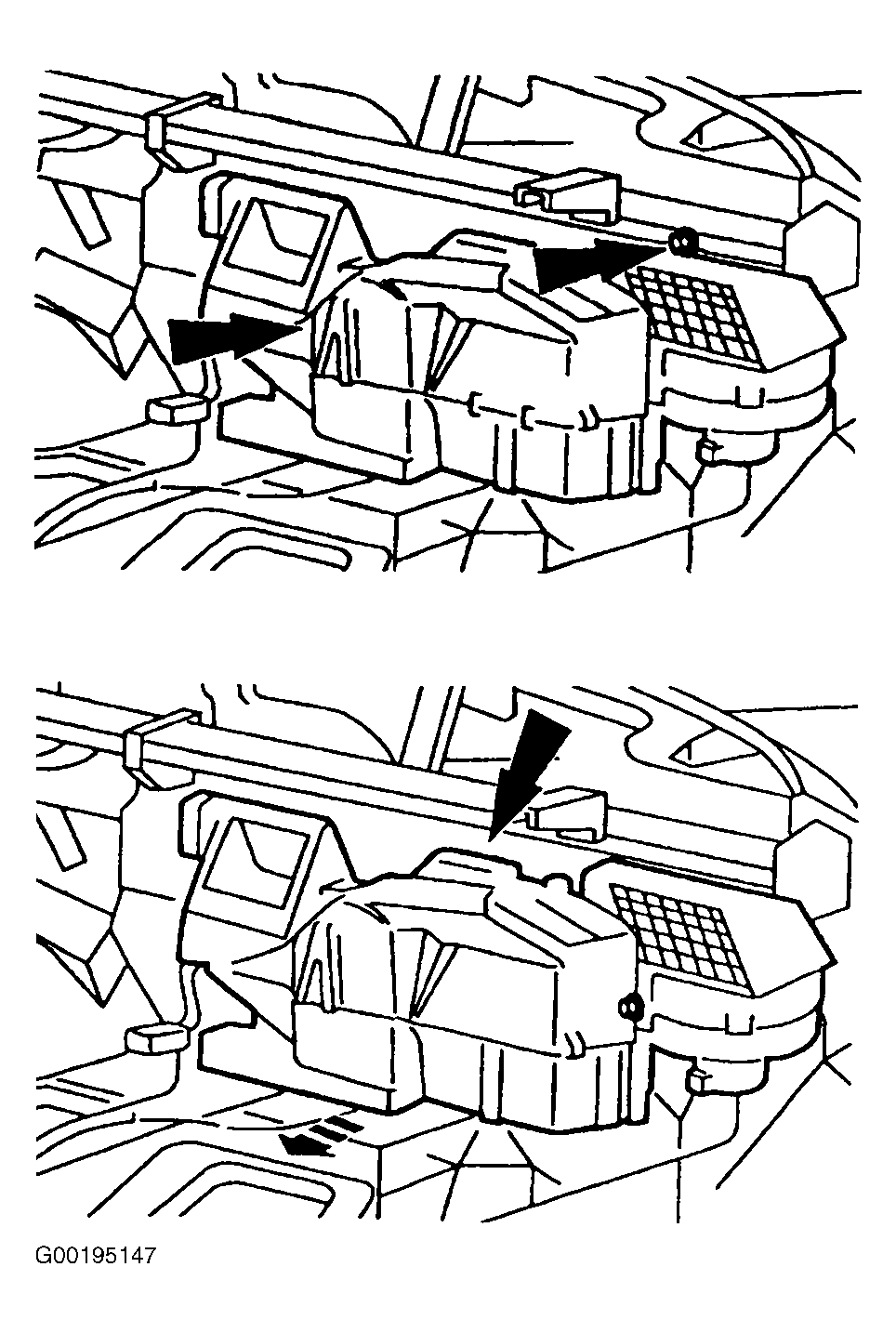

Fig 2: Removing & Installing Plenum Assembly
G00195147Courtesy of FORD MOTOR CO.
