Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the pulse vacuum hublock (PVH) solenoid.
    1. Disconnect the harness connector.
    2. Remove the vacuum hose connector.

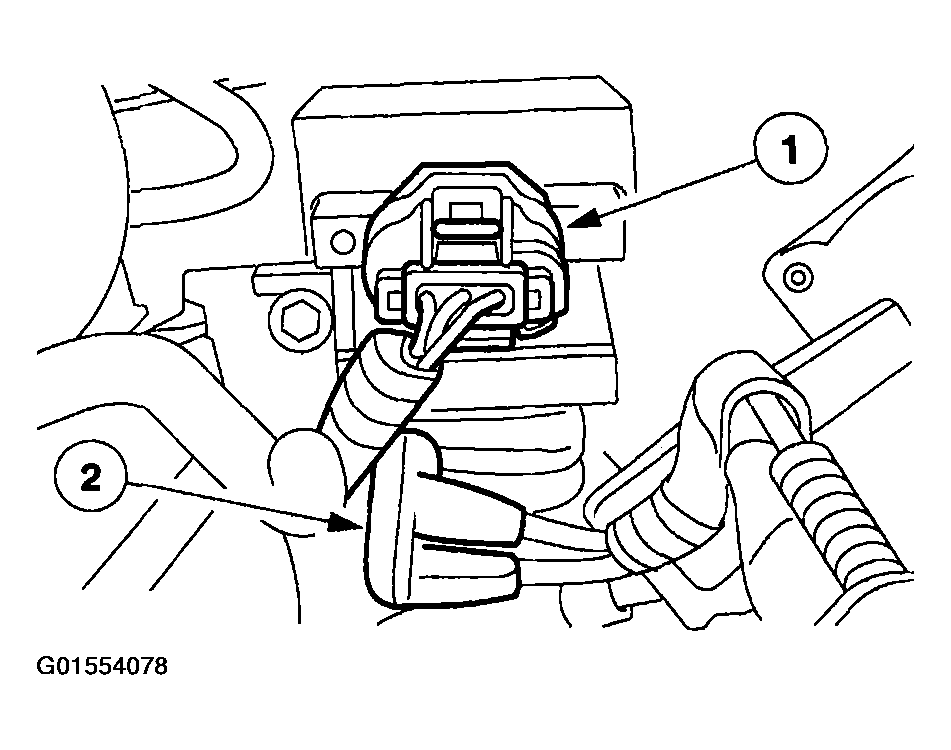

    Fig 1: Removing Vacuum Hose Connector
    G01554078Courtesy of FORD MOTOR CO.
  2. Remove the bolts and the PVH solenoid.

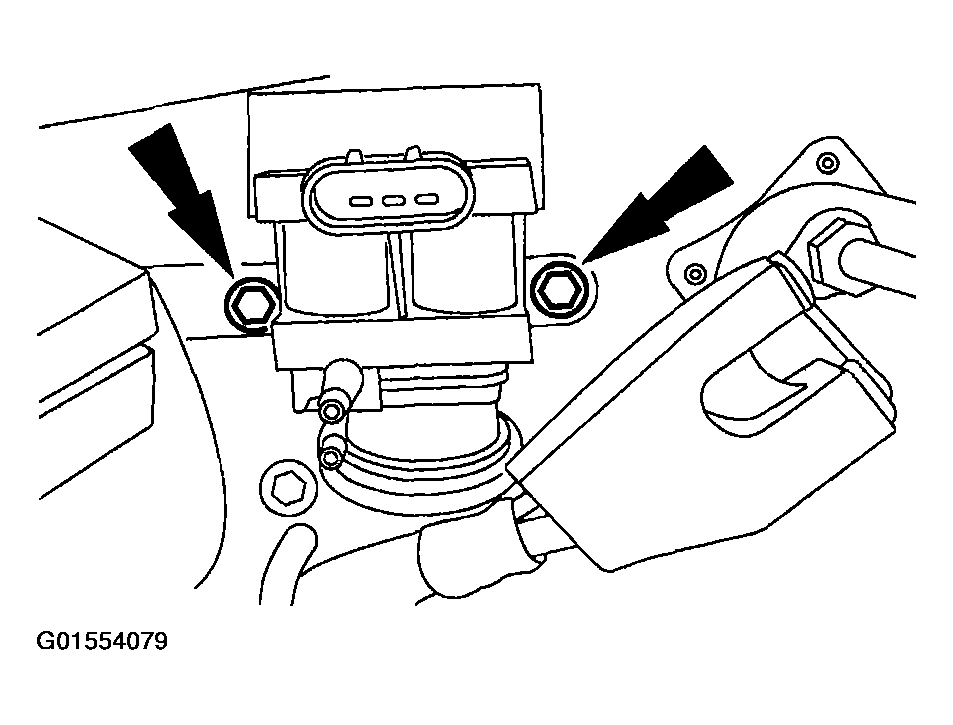

    Fig 2: Removing Bolts And PVH Solenoid
    G01554079Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
