Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to JACKING & LIFTING .
  2. Disconnect the wiring harness connector.
    Fig 1: Disconnecting Wiring Harness Connector
    G01554085Courtesy of FORD MOTOR CO.
  3. Remove the mode indication switch.

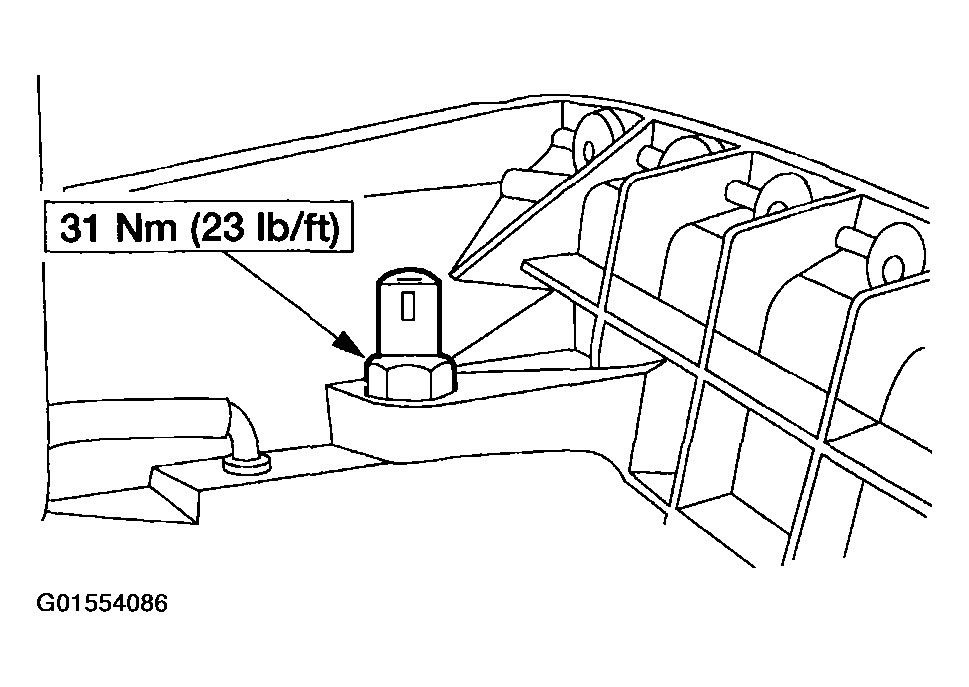

    Fig 2: Removing Mode Indication Switch
    G01554086Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
