Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Prior to removal of the four-wheel drive (4WD) control module, it is necessary to upload module configuration information to a diagnostic tool. This information needs to be downloaded into the new module once installed. Refer to MODULE CONFIGURATION .

Disconnect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
Open and lower the glove box compartment.

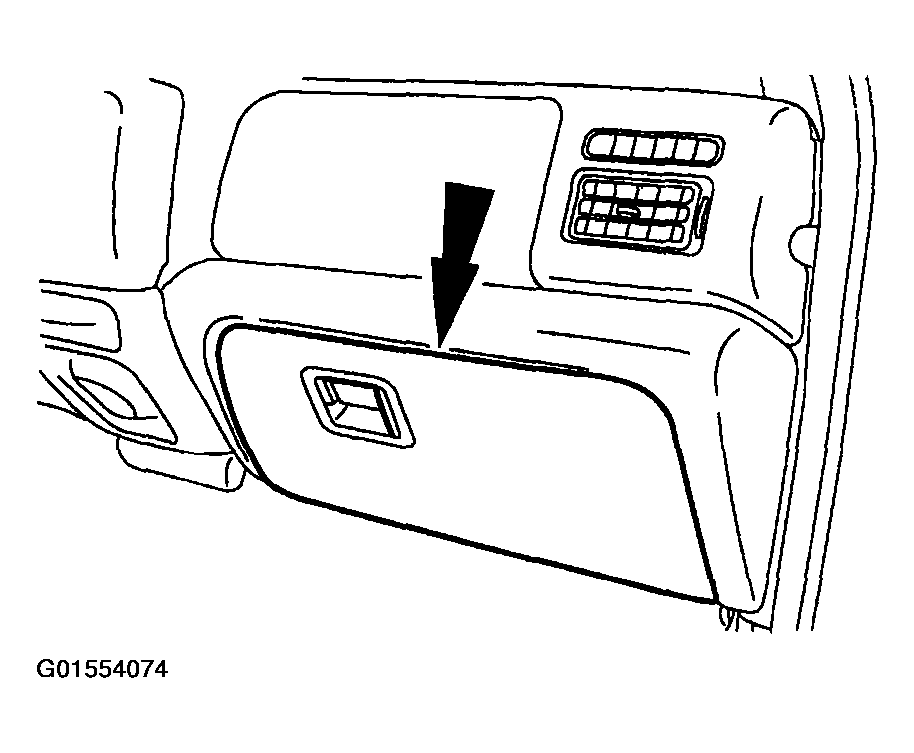

Fig 1: Locating Glove Box Compartment
Courtesy of FORD MOTOR CO.
Disconnect the connectors from the 4WD module.

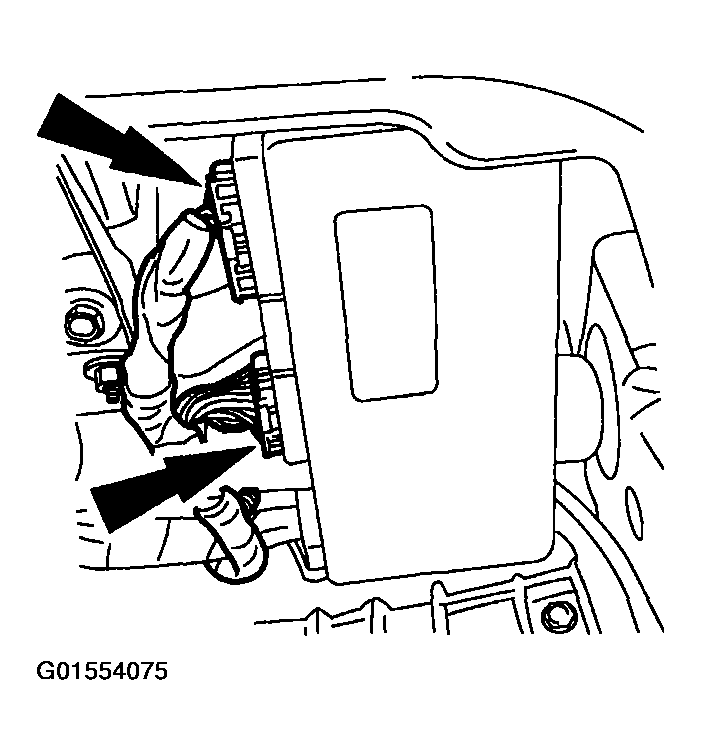

Fig 2: Disconnecting Connectors From 4WD Module
Courtesy of FORD MOTOR CO.
Remove two nuts, one bolt and the 4WD module.

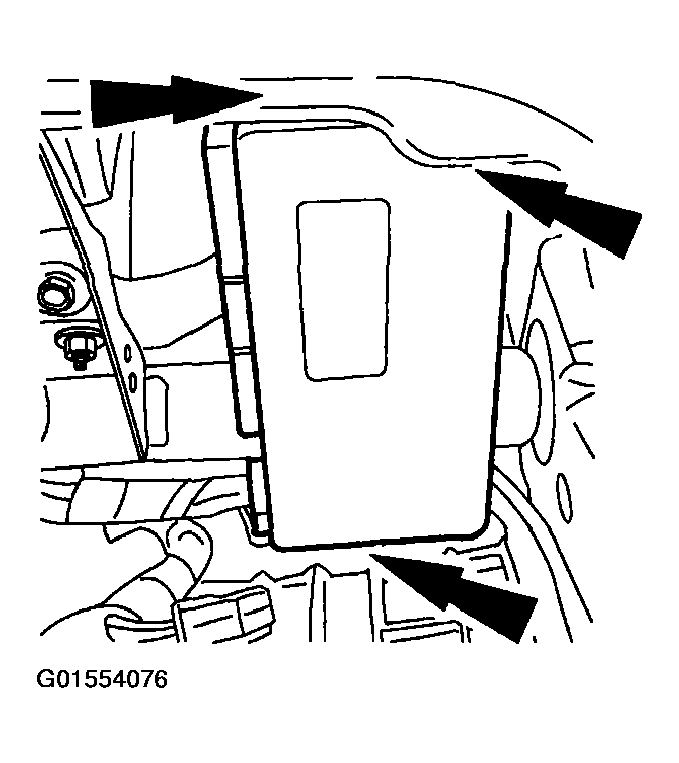

Fig 3: Removing Nuts, Bolt And 4WD Module
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
CAUTION: Once the new 4WD control module is installed, it is necessary to download the module configuration information from the diagnostic tool into the new module. Refer to MODULE CONFIGURATION .
