Pinpoint Test C: Electronic Shift Functional Test

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The function test must be carried out on a hard surface in a vacant area without traffic.

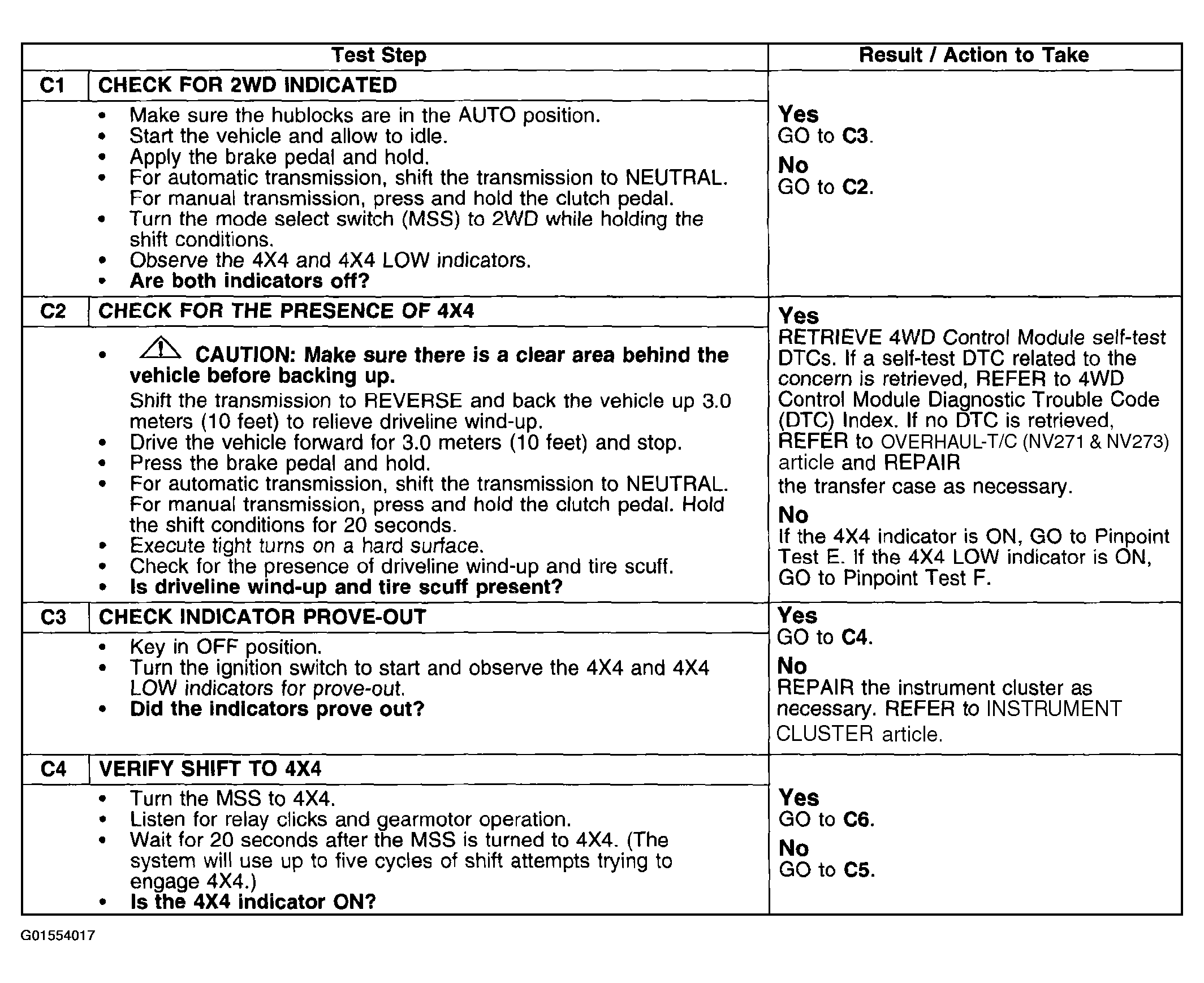

Fig 1: Pinpoint Test C: Electronic Shift Functional Test (Step C1-C4)

Courtesy of FORD MOTOR CO.

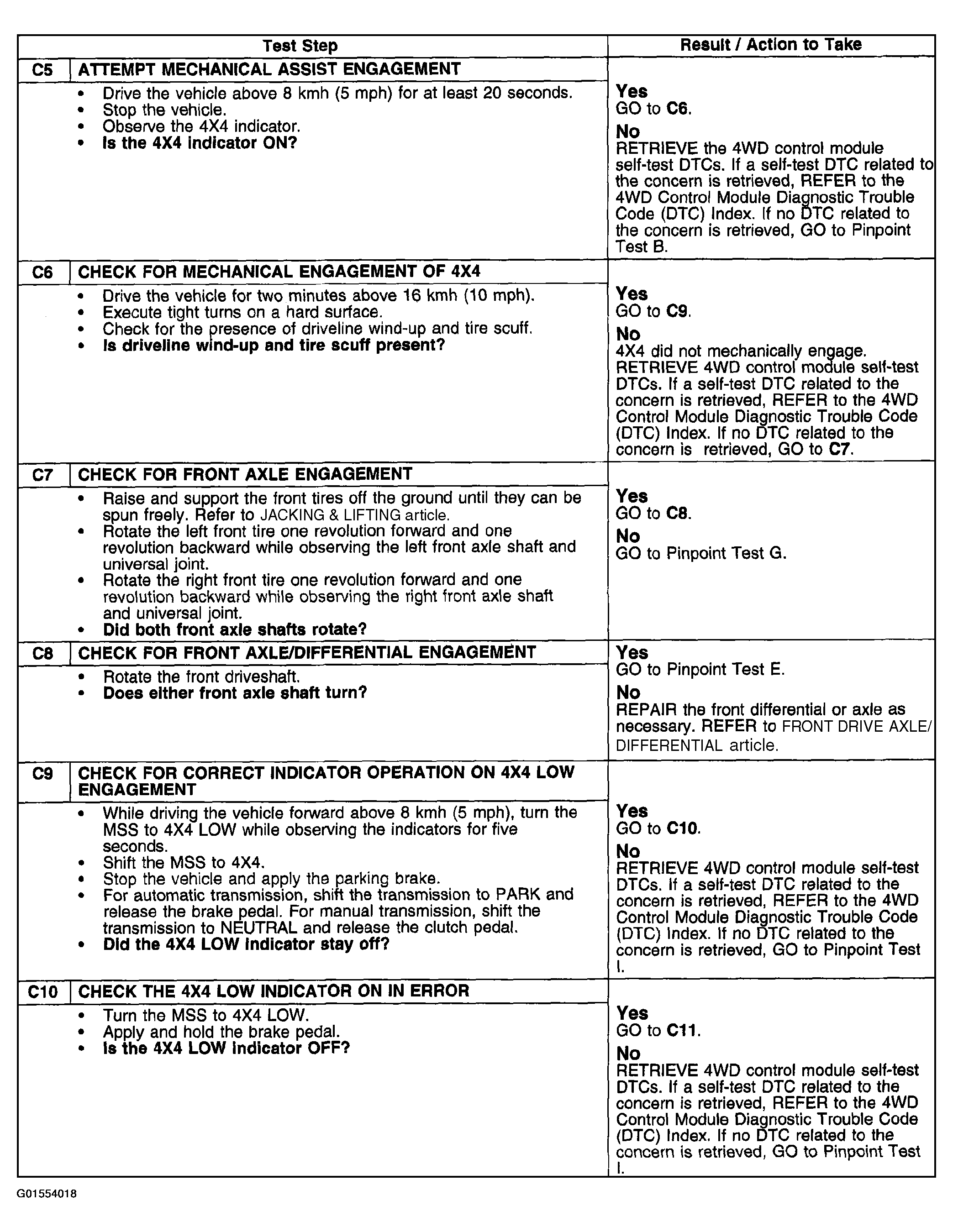

Fig 2: Pinpoint Test C: Electronic Shift Functional Test (Step C5-C10)

Courtesy of FORD MOTOR CO.

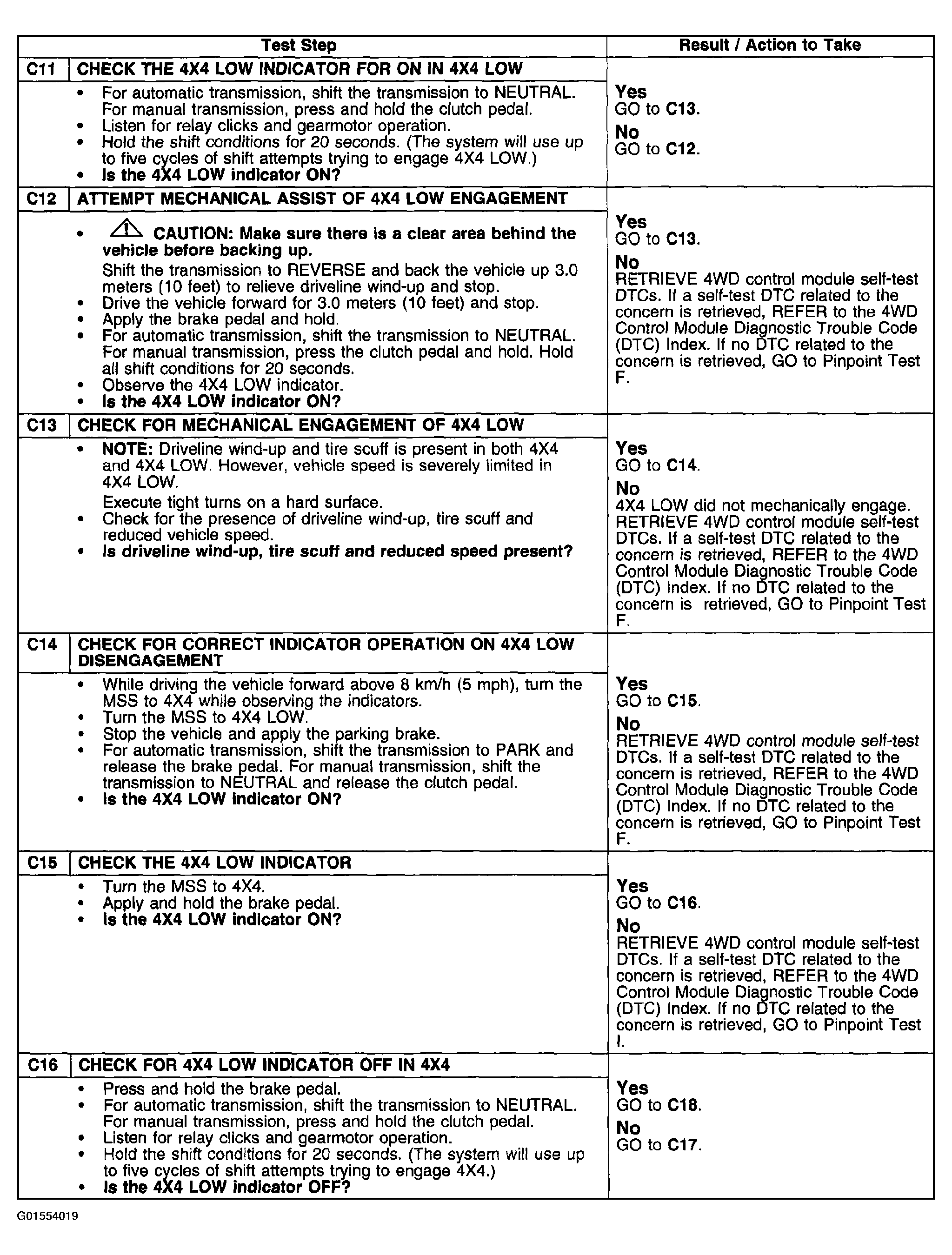

Fig 3: Pinpoint Test C: Electronic Shift Functional Test (Step C11-C16)

Courtesy of FORD MOTOR CO.

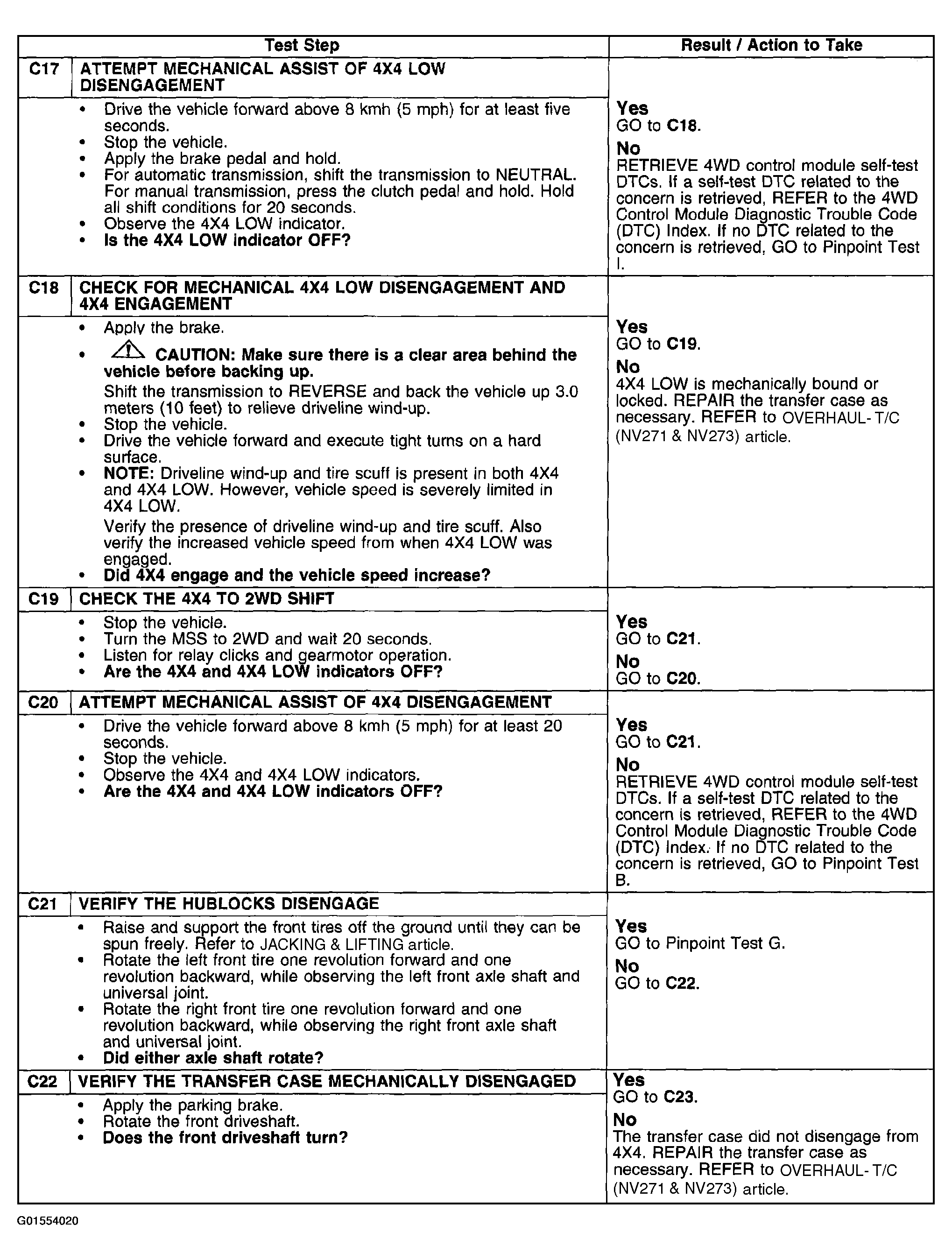

Fig 4: Pinpoint Test C: Electronic Shift Functional Test (Step C17-C22)

Courtesy of FORD MOTOR CO.

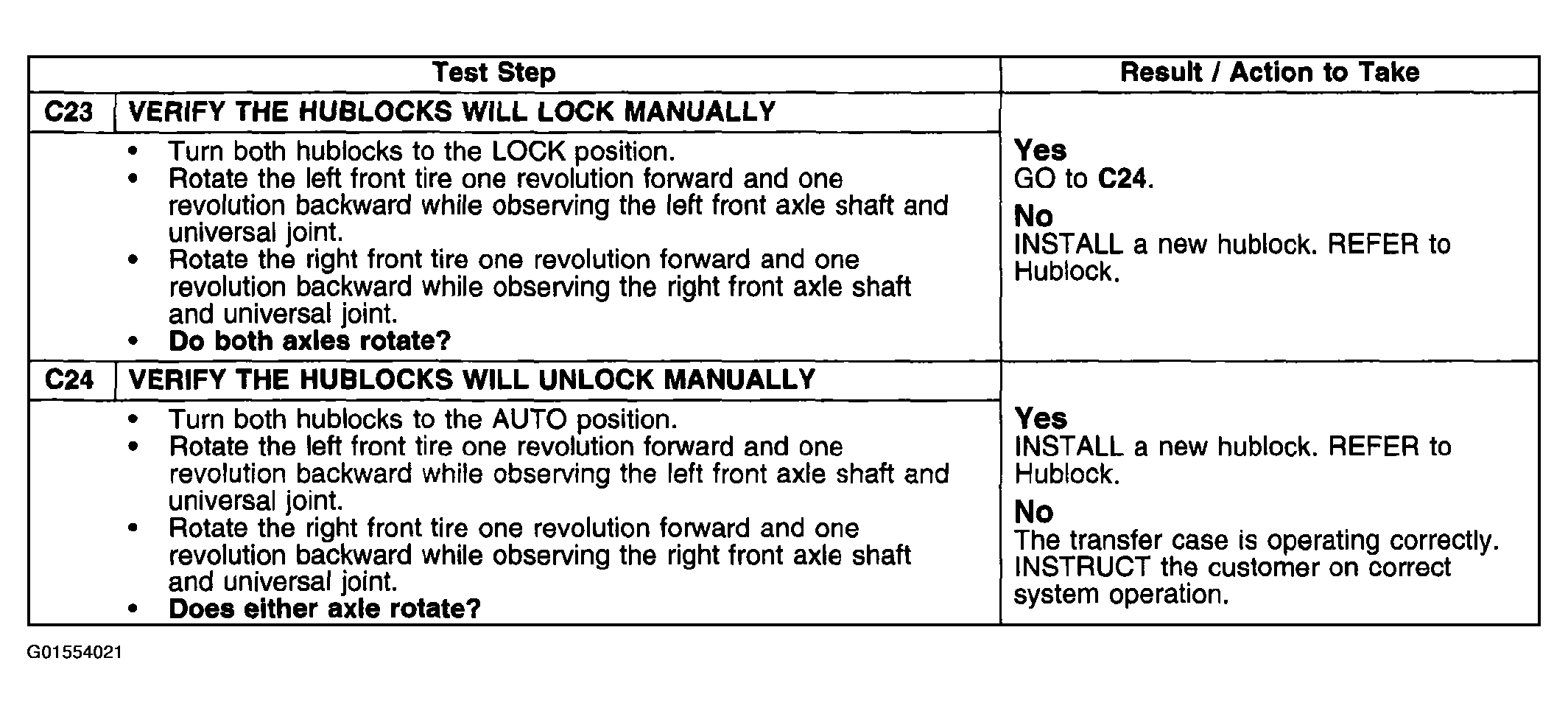

Fig 5: Pinpoint Test C: Electronic Shift Functional Test (Step C23-C24)

Courtesy of FORD MOTOR CO.
