Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Set the parking brake.
Remove the axle shaft bolts.
- Place a drain pan under the rear hub.

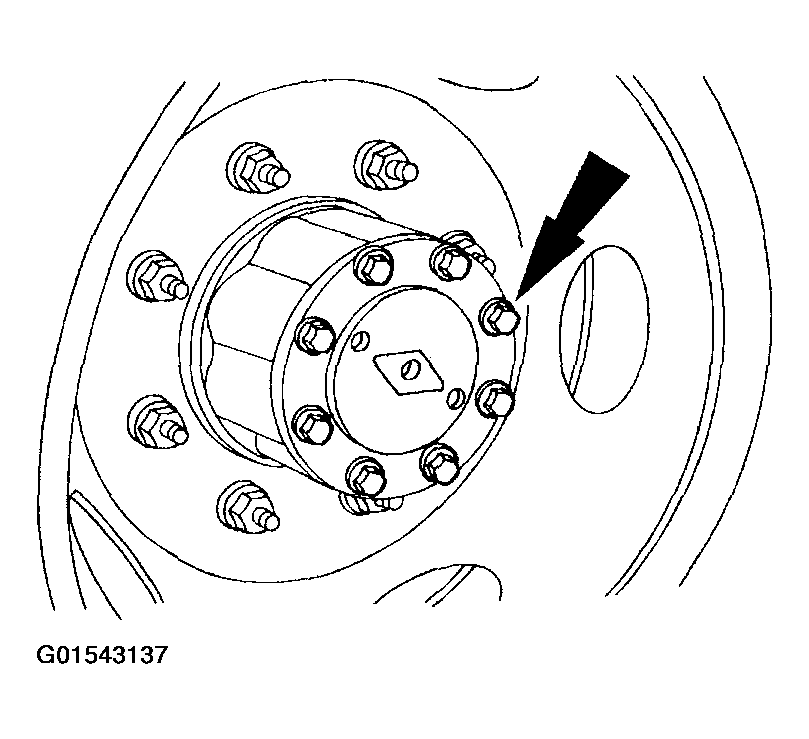

  Fig 1: Removing Axle Shaft Bolts
  Courtesy of FORD MOTOR CO.
Remove the axle shaft (4234).

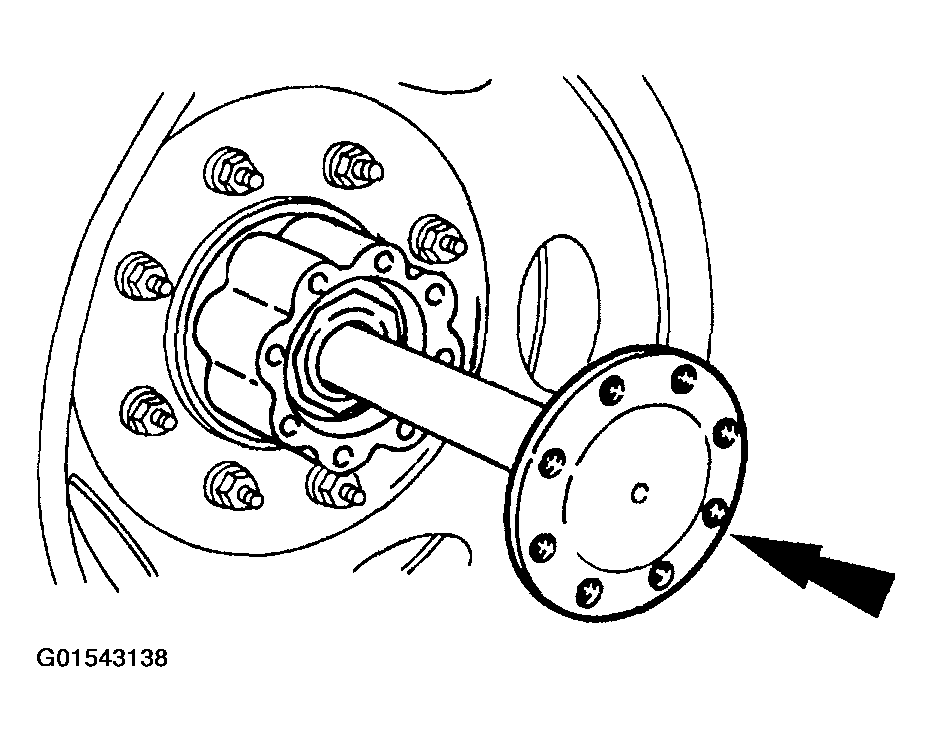

Fig 2: Removing Axle Shaft
Courtesy of FORD MOTOR CO.
Inspect the following components:
- The O-ring for damage. Replace as necessary.
- The axle shaft for cracked material around the holes or oversized holes. Replace as necessary.

  Fig 3: Identifying O-Ring
  Courtesy of FORD MOTOR CO.

NOTE: Lubricate the O-ring with Premium Long-Life Grease XG-1-C or equivalent meeting Ford specification ESA-M1C75-B.

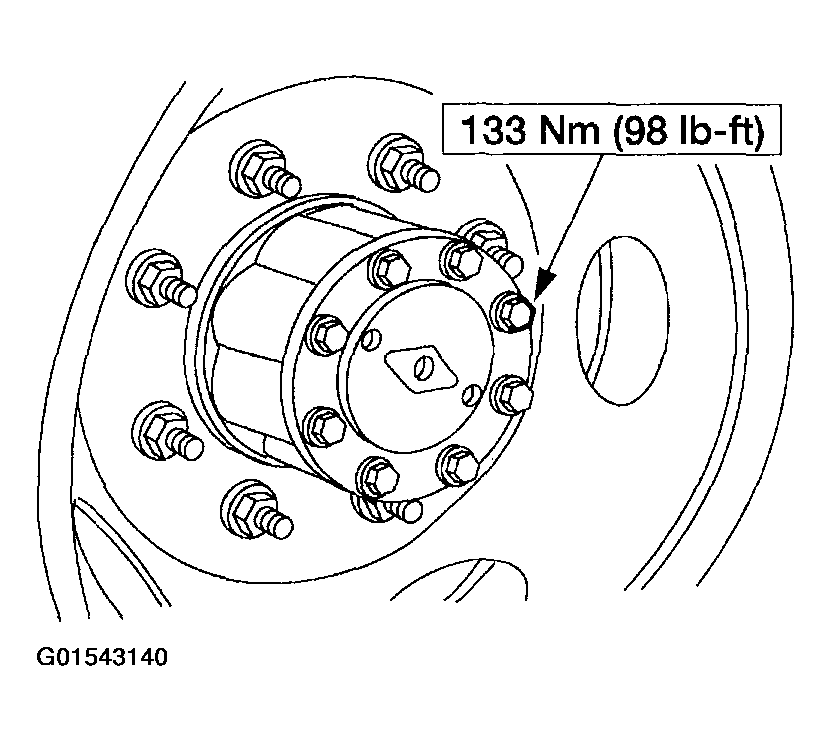

Fig 4: Installing Axle Shaft Bolts

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
