Dana Model S135 Full-Floating Rear Axle, Disassembled View

WARNING: This page is about a different car, the 2003 Ford F550 Super Duty and 2003 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

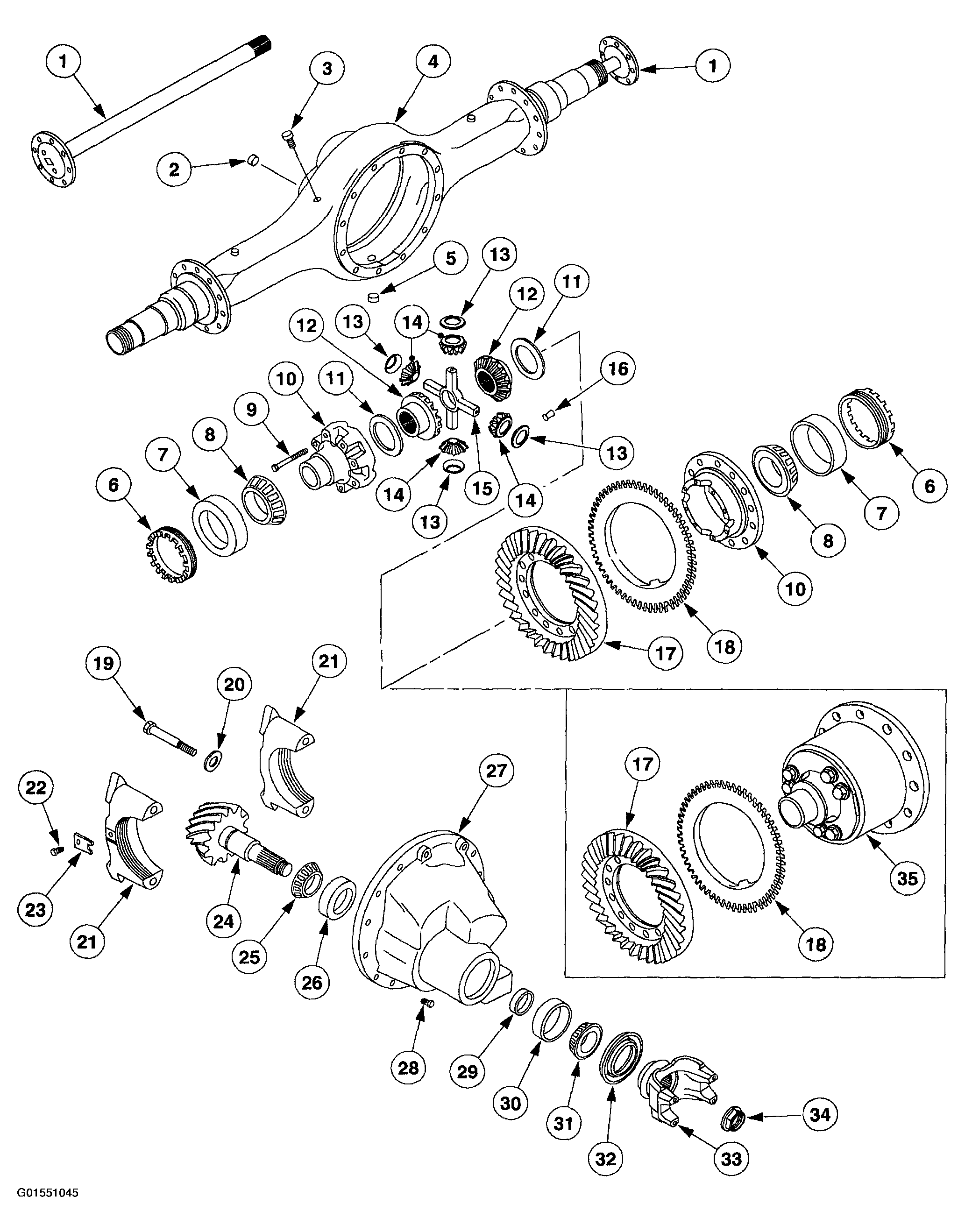

Fig 1: Disassembled View Of Dana Model S135 Full-Floating Rear Axle

Courtesy of FORD MOTOR CO.

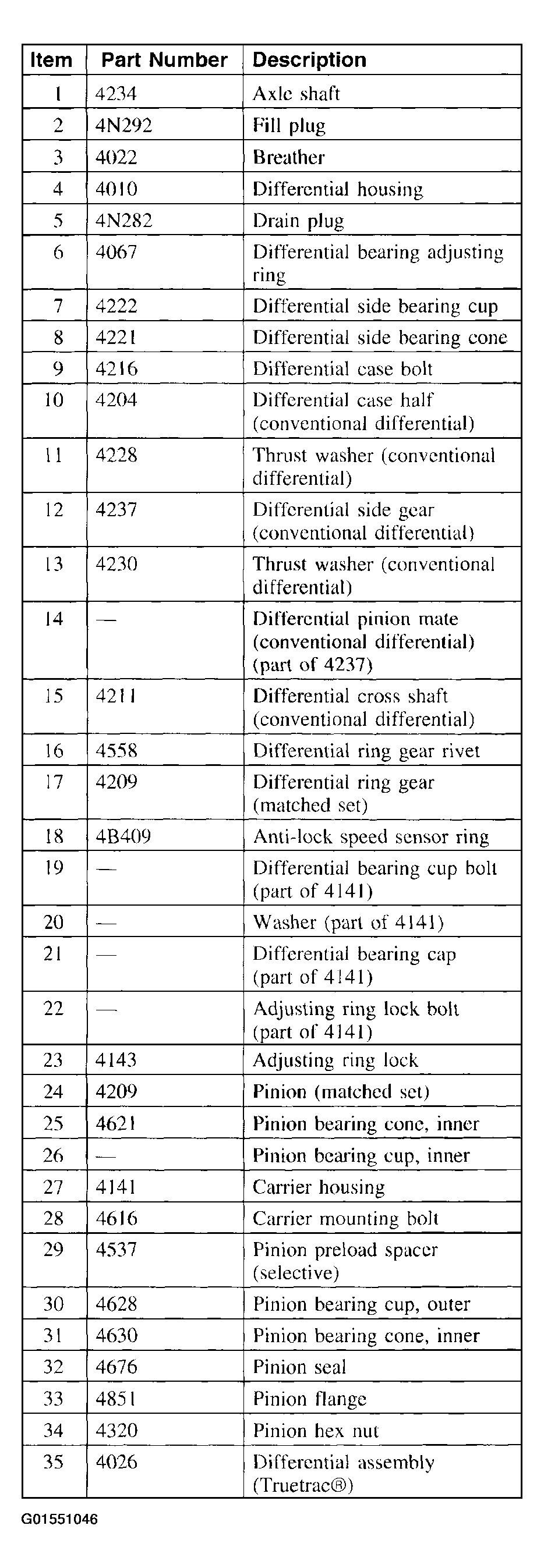

Fig 2: Item Part Number Description Chart

Courtesy of FORD MOTOR CO.

NOTE: Unless noted, the procedures in this article apply to both the conventional differential and the Truetrac® differential, though most of the illustrations used in the procedures show the conventional differential.

The Model S135 rear axle features the following:

a hypoid design differential ring gear and pinion
a two-bearing overhung pinion mounting
full-floating axle shafts
a steel differential housing
a front mounted removable one-piece carrier housing
a conventional differential assembly or a Truetrac® limited slip differential assembly
