Home >> Ford >> 2002 >> Taurus SES, 3.0 2, AX4S >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Disc Brakes & Drum Brakes >> Overhaul >> Rear Brake Caliper >> Notes

Rear Brake Caliper: Notes

CAUTION: Components are not interchangeable from side to side.

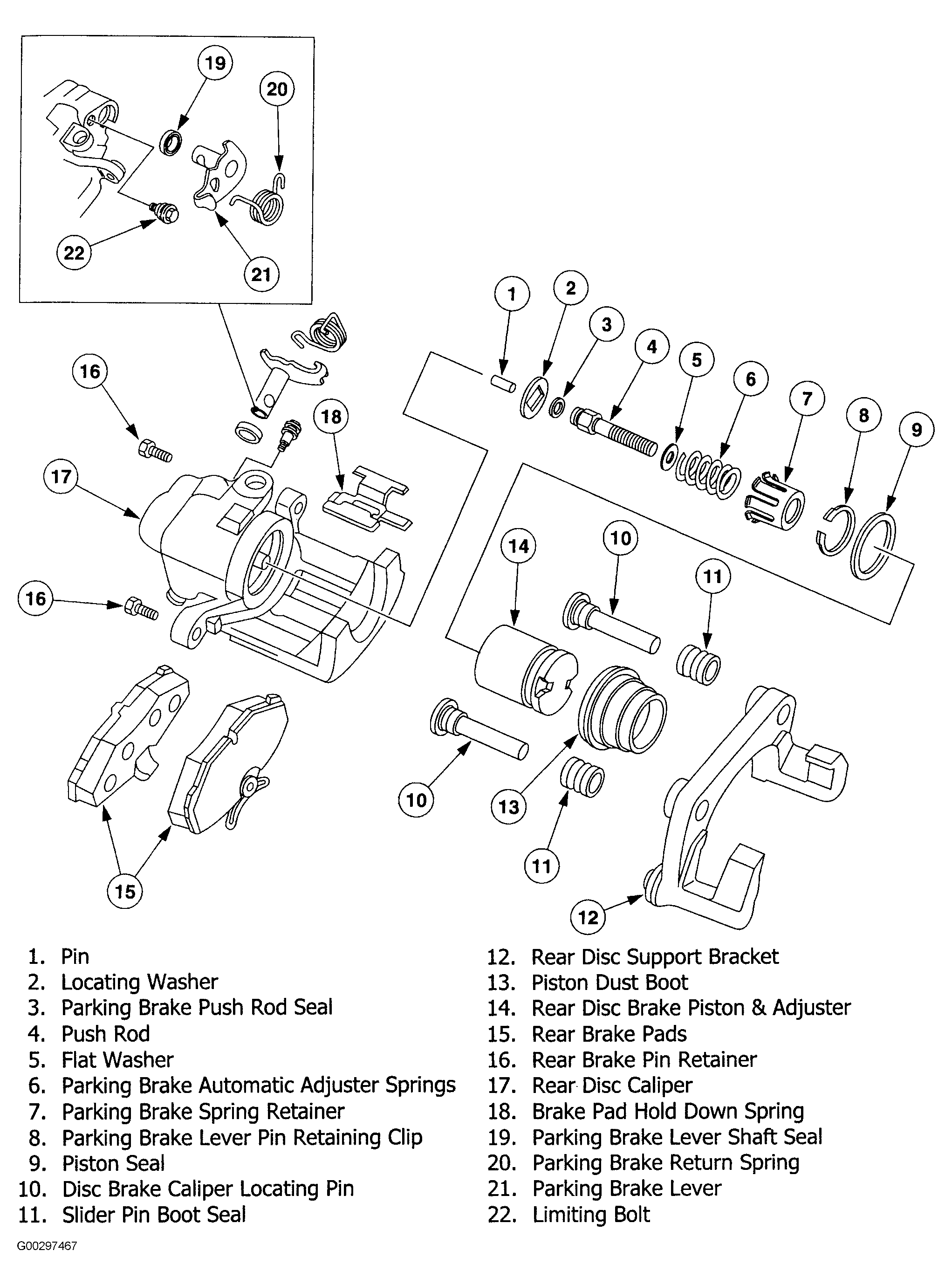

NOTE: To aid in caliper overhaul, refer to illustration. See Figure.
