Parking Brake

The parking brake system is applied by foot at the control and released by pulling the parking brake control release. The parking brake system consists of the components shown. See Fig 1 and Fig 2 .

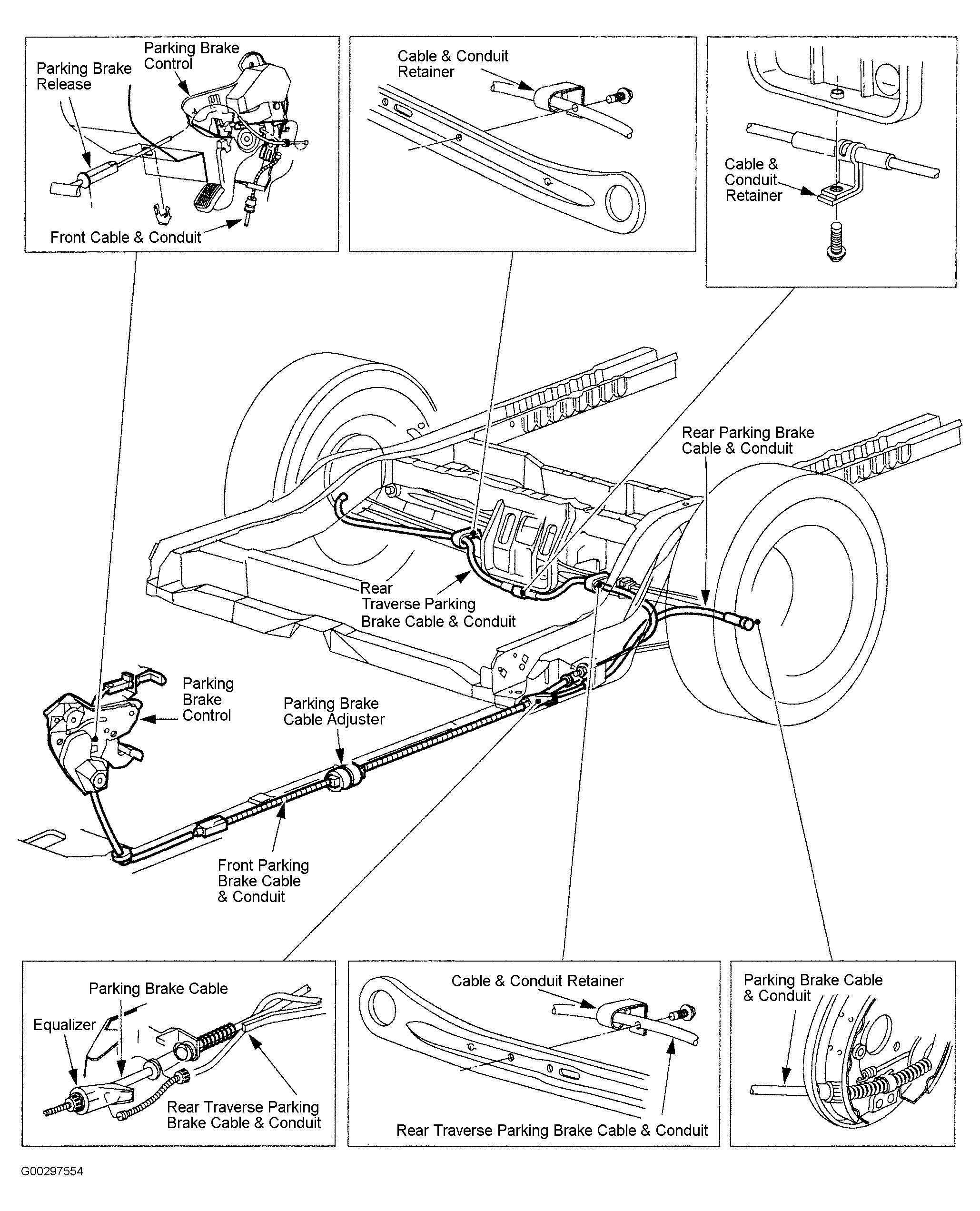

Fig 1: Identifying Parking Brake Components - W/Drum Brakes
G00297554Courtesy of FORD MOTOR CO.

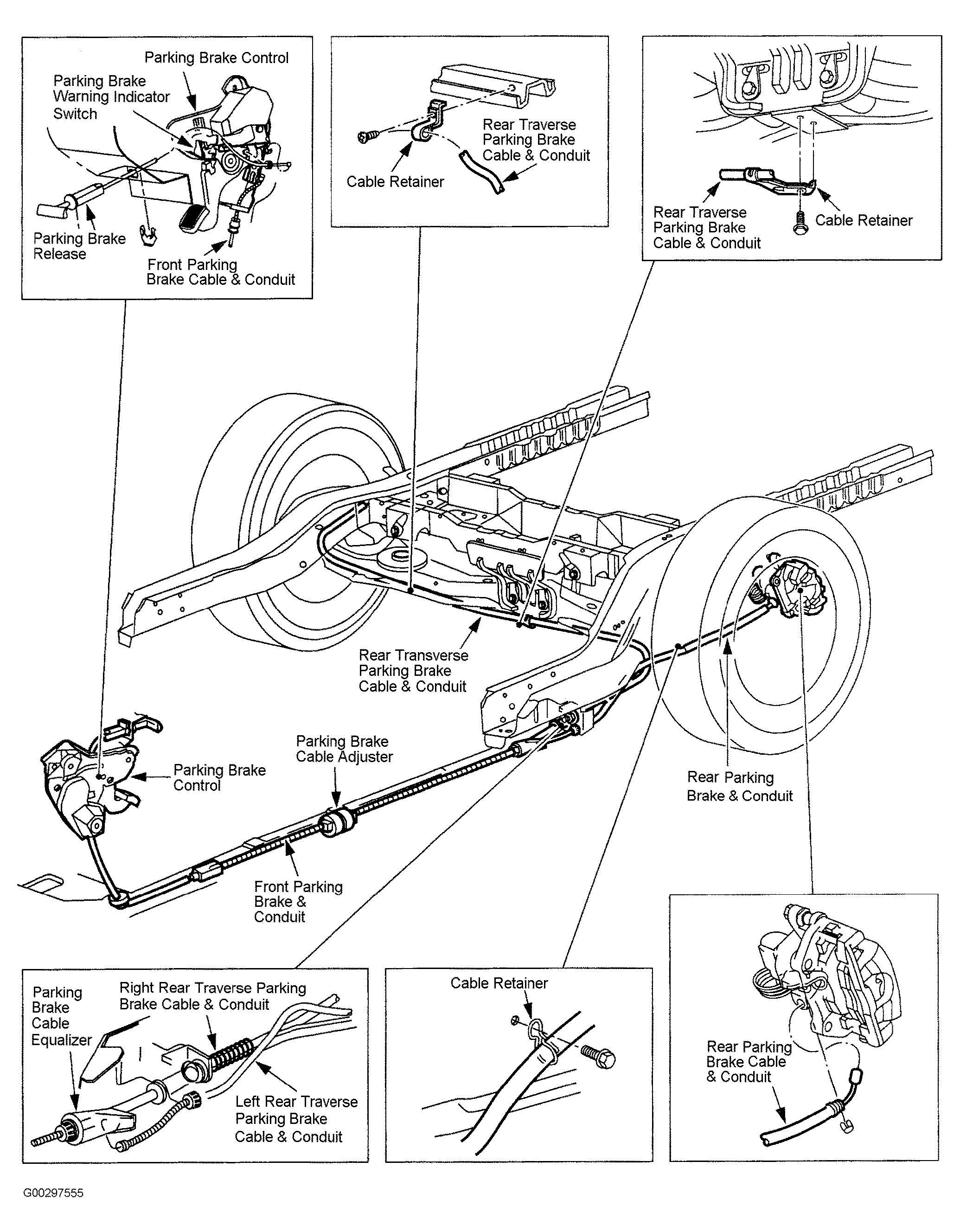

Fig 2: Identifying Parking Brake Components - W/Disc Brakes
G00297555Courtesy of FORD MOTOR CO.
