Drums Removed

  1. This adjustment should be made only after replacing brake lining or if brake applications are insufficient to actuate automatic adjuster. Remove wheel. Remove brake drum.
  2. Use Brake Adjusting Gauge (D81L-1103-A), or equivalent, to determine brake drum diameter and proper shoe diameter. See Fig 1. Hold automatic adjusting lever out of engagement while rotating adjusting screw.
  3. Adjust brake shoes to fit gauge. See Fig 2. Rotate gauge around shoe to ensure proper fit. Install brake drum. Install wheel. Check brake operation by making several stops from varying forward speeds.

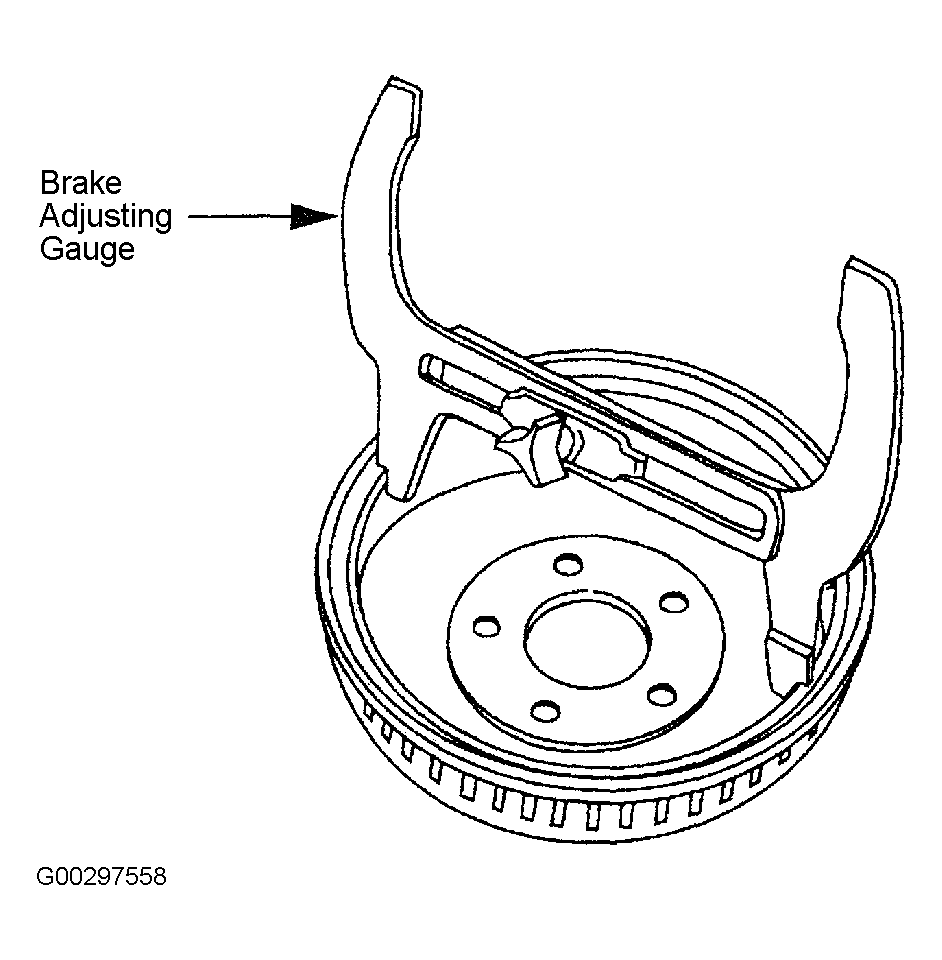

Fig 1: Measuring Inside Drum Diameter
G00297558Courtesy of FORD MOTOR CO.

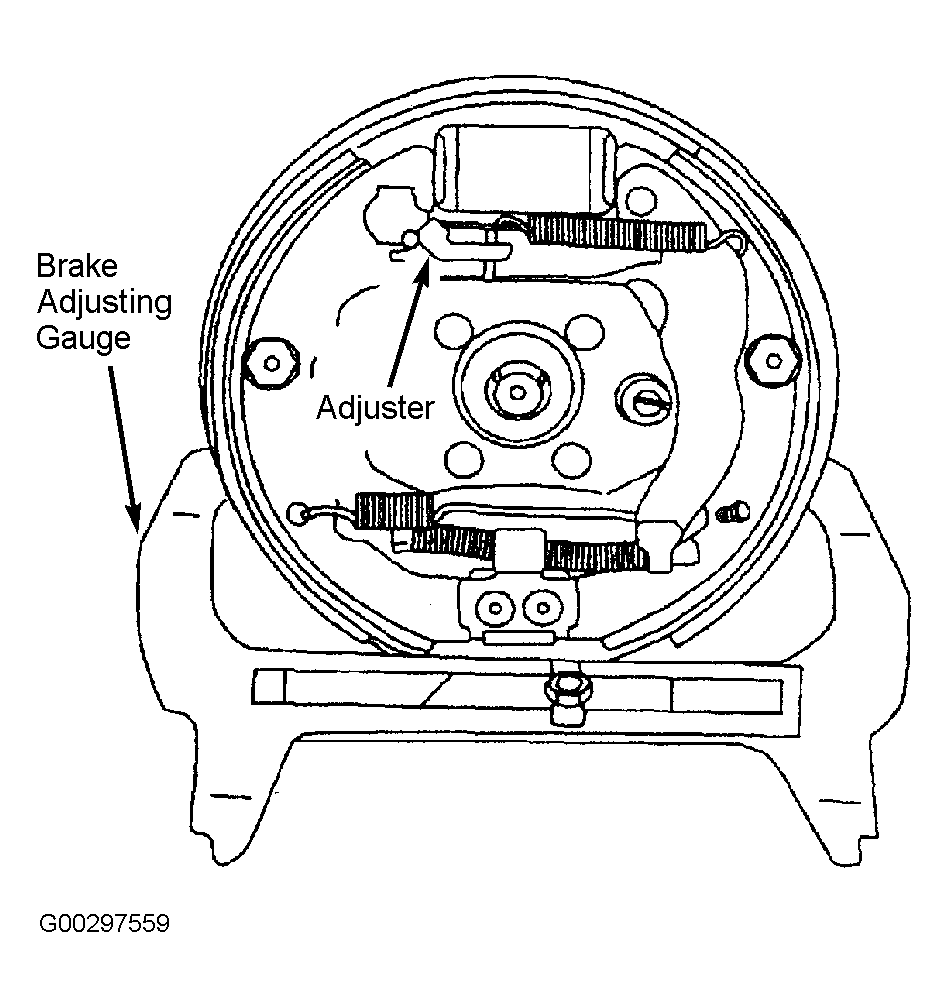

Fig 2: Adjusting Brake Shoes To Drum Diameter
G00297559Courtesy of FORD MOTOR CO.
