Parking Brake Cable
- Ensure parking brake is fully released.
- Raise and support vehicle.

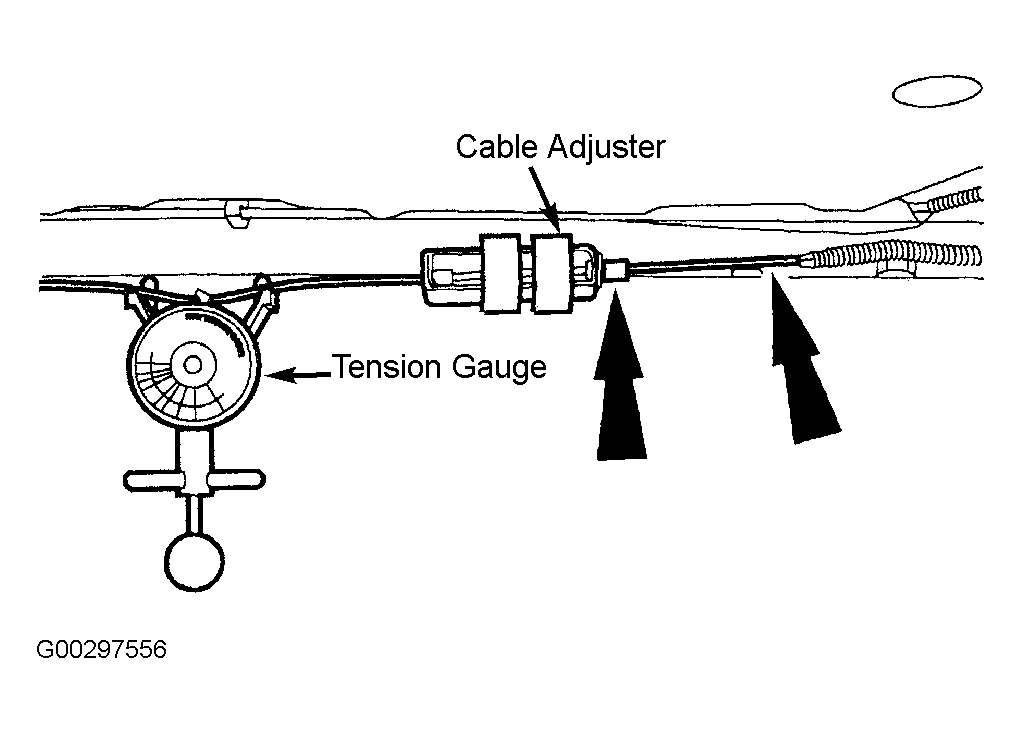

- Install Tension Gauge (T63L-8620-A), or equivalent. See Fig 1.
- Turn the adjustment nut until the cable tension is 34-46 lbs. (15.8 -20.8 Kg).
- Remove tension gauge and lower the vehicle.
- Lower the vehicle and check the operation of the parking brake.
- Raise the vehicle and verify the cable is within specification using the special tool. Ensure there is no drag on the rear brakes.
