Removal & Installation
WARNING: This page is about a different car, the 2002 Lincoln Navigator, 2002 Ford Expedition, 2001 Lincoln Navigator, and 2001 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect negative battery cable. Remove headlight switch. Carefully release 4 retaining clips and remove steering column opening cover.

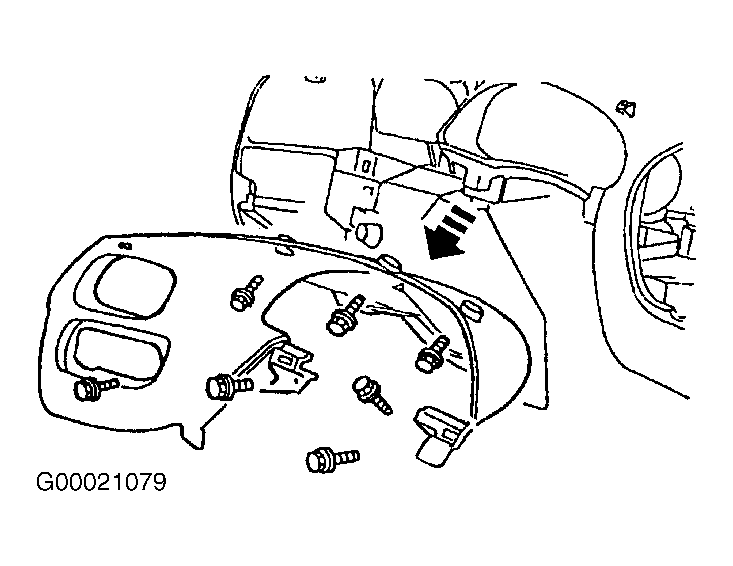

- Remove 7 instrument panel finish trim bolts. See Fig 1. Remove instrument panel finish trim. Remove 4 instrument cluster bolts. Disconnect wiring harness connectors. Remove instrument cluster. Remove transmission range indicator, if equipped. To install, reverse removal procedure.
