Pinpoint Test K: DTC C1799: EPB Hall-Effect Circuit Failure

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

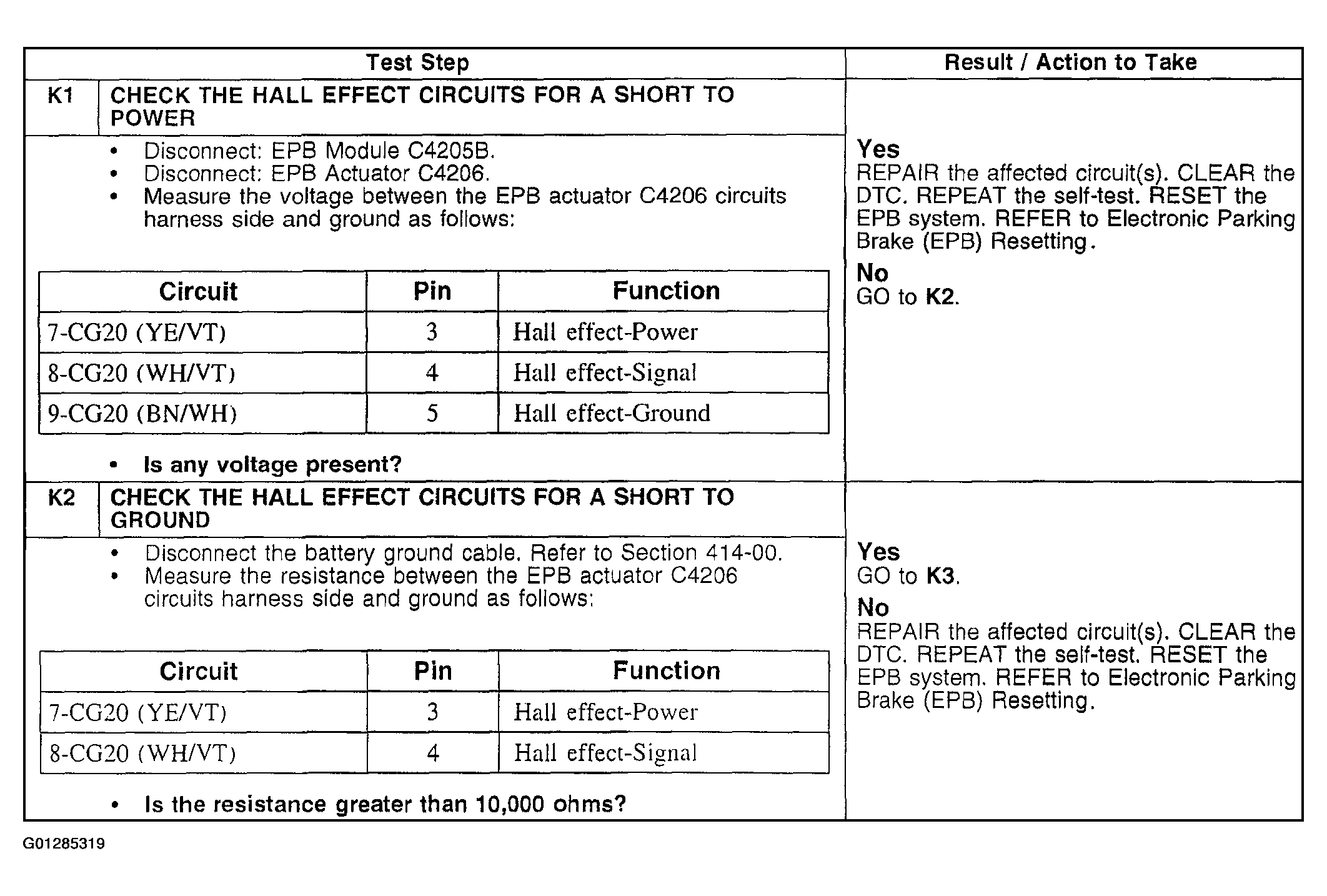

Fig 1: Pinpoint Test K: DTC C1799: EPB Hall Effect Failure (Steps K1-K2)

Courtesy of FORD MOTOR CO.

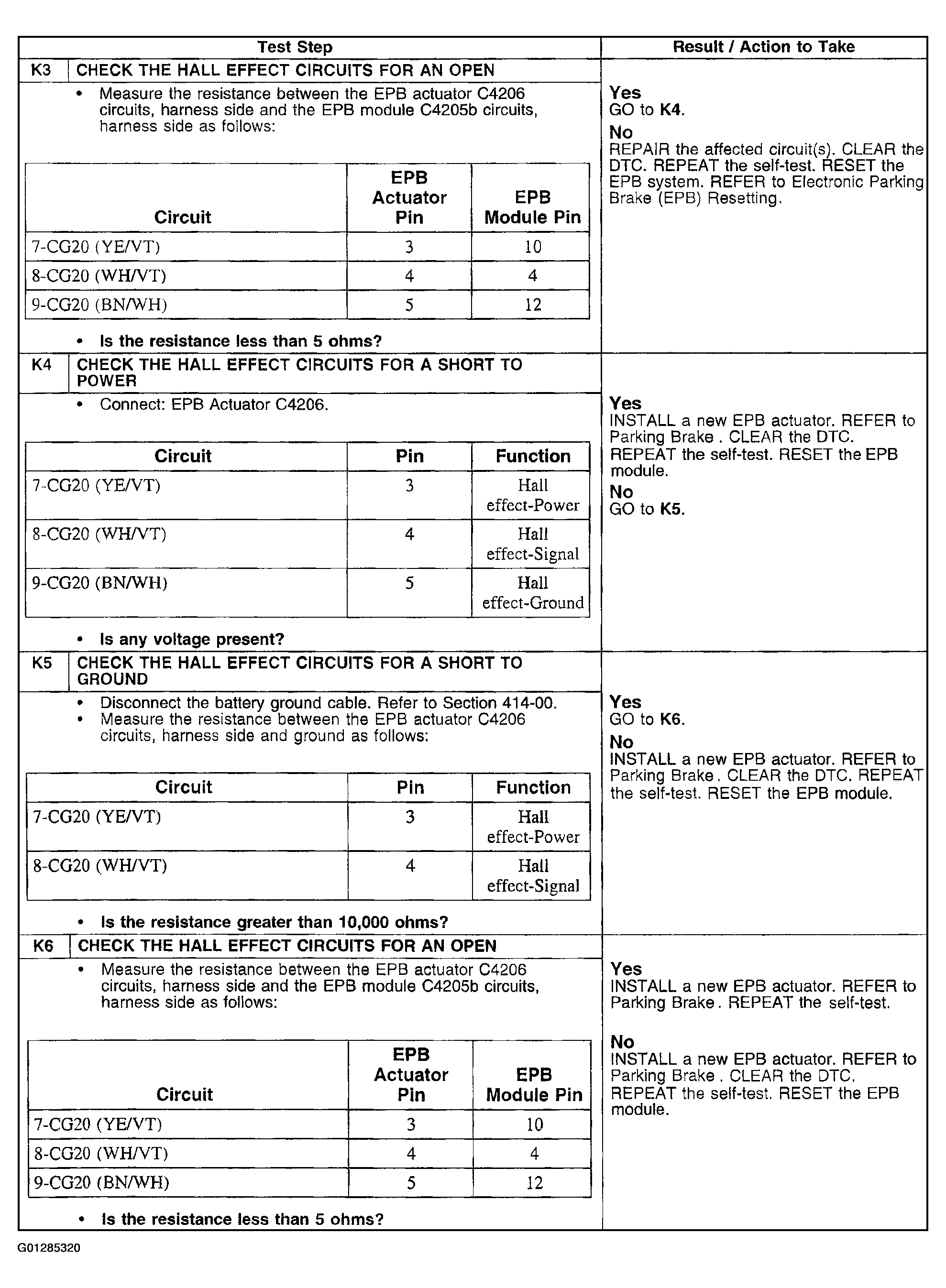

Fig 2: Pinpoint Test K: DTC C1799: EPB Hall Effect Failure (Steps K3-K6)

Courtesy of FORD MOTOR CO.
