Removal And Installation
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

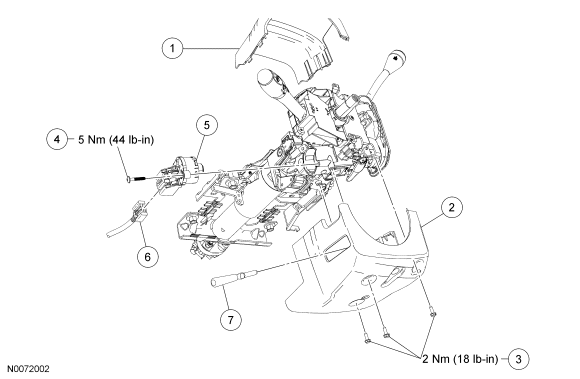

NOTE:
Steering wheel removed for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | 3530 | Upper steering column shroud |
| 2 | 3530 | Lower steering column shroud |
| 3 | W710485 | Lower steering column shroud screws (3 required) |
| 4 | 118572 | Ignition switch screw |
| 5 | 11572 | Ignition switch |
| 6 | - | Ignition switch electrical connector (part of 14401) |
| 7 | 3F609 | Steering column tilt release lever/handle |
- Depower the supplemental restraint system (SRS). For additional information, refer to GENERAL PROCEDURES article.
- Remove the steering column tilt release lever/handle.
- Remove the 3 screws and the upper and lower steering column shrouds.
- To install, tighten to 2 Nm (18 lb-in).
- Remove the ignition switch.
- Disconnect the electrical connector.
- Remove the ignition switch screw and remove the ignition switch.
- To install, tighten to 5 Nm (44 lb-in).
- To install, reverse the removal procedure.
- Repower the SRS. For additional information, refer to GENERAL PROCEDURES article.
NOTE:
Release the upper steering column shroud by pressing the sides inward.
