Removal & Installation

WARNING: This page is about a different car, the 2003 Ford Windstar and 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect battery ground cable
  2. Disconnect the brake pedal motor harness connector. See Figure .
  3. Remove the 2 screws and disconnect the transmission cable assembly from the adjustable pedal motor. See Figure .
  4. Disconnect the cable assembly at the pedal. Remove the cable assemblies from the accelerator and brake pedals by squeezing the exposed tangs and pulling outward at the same time. See Fig 1 .
  5. To install, reverse removal procedure.

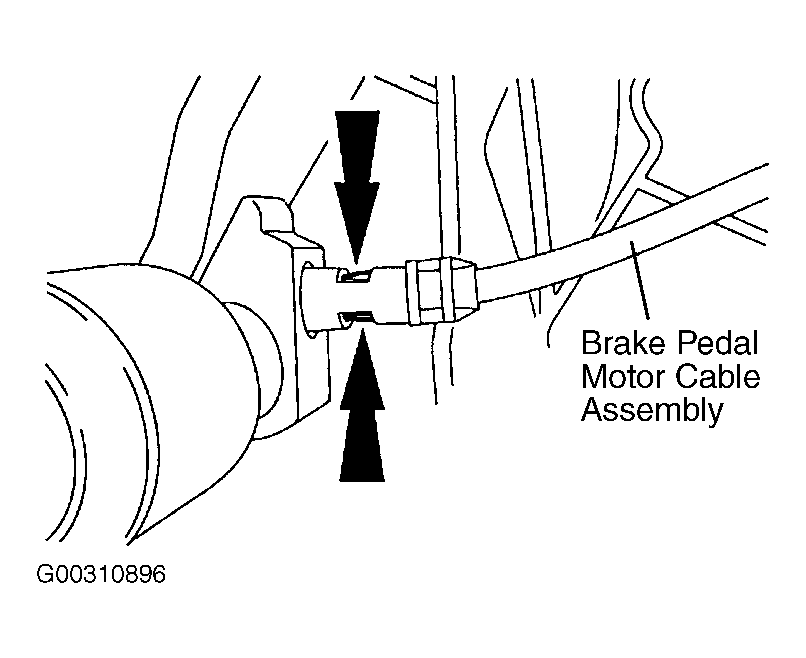

Fig 1: Removing Brake Pedal Motor Cable Assembly
G00310896Courtesy of FORD MOTOR CO.
