Removal & Installation
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, 2004 Ford Cutaway, and 2003 Ford RV Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

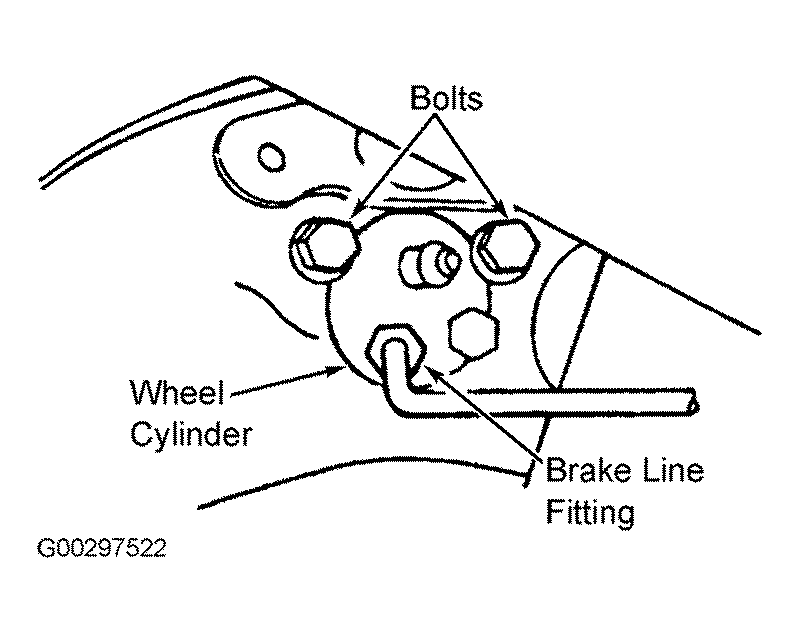

Remove brake drum and brake shoes. See BRAKE SHOES (E150 & E250) . Disconnect the brake line fitting. Remove 2 wheel cylinder mounting bolts. See Fig 1. Remove the rear wheel cylinder. To install, reverse removal procedure. Adjust brakes, and bleed hydraulic system. See BLEEDING BRAKE SYSTEM .
