Pinpoint Test I: DTC B1010 Parking Aid Switch Not Connected

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.
  1. I1 CHECK CIRCUIT 1435 (DG/VT) FOR A SHORT TO VOLTAGE
    • Key in OFF position.
    • Disconnect: Parking Aid Module C3267.
    • Measure the voltage between the parking aid module C3267-11, circuit 1435 (DG/VT), harness side and ground.
    Fig 1: Measuring Voltage Between Parking Aid Module C3267-11, Circuit 1435 (DG/VT), Harness Side & Ground
    G04658189Courtesy of FORD MOTOR CO.
    • Is any voltage present?

    Yes:  REPAIR the circuit. CLEAR the DTCs. REPEAT the self-test.

    No:  GO to  I2.

  2. I2 CHECK PARKING AID SWITCH CIRCUIT FOR AN OPEN
    • While pressing and releasing the parking aid switch, measure the resistance between the parking aid module C3267-11, circuit 1435 (DG/VT), harness side and ground.
    Fig 2: Measuring Resistance Between Parking Aid Module C3267-11, Circuit 1435 (DG/VT), Harness Side & Ground
    G04658190Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms with the switch pressed and greater than 10,000 ohms with the switch released?

    Yes:  GO to  I5.

    No:  GO to  I3.

  3. I3 CHECK CIRCUIT 1435 (DG/VT) FOR AN OPEN
    • Disconnect: Parking Aid Switch C2114.
    • Measure the resistance between the parking aid module C3267-11, circuit 1435 (DG/VT), harness side and the parking aid switch C2114-3, circuit 1435 (DG/VT), harness side.

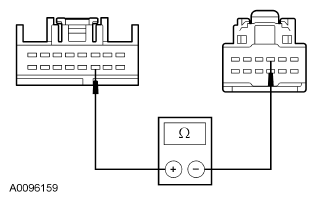

    Fig 3: Measuring Resistance Between Parking Aid Module C3267-11, Circuit 1435 (DG/VT), Harness Side & Parking Aid Switch C2114-3, Circuit 1435 (DG/VT) & Harness Side
    G04658191Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?

    Yes:  GO to  I4.

    No:  REPAIR the circuit. CLEAR the DTCs. REPEAT the self-test.

  4. I4 CHECK CIRCUIT 1205 (BK) FOR AN OPEN
    • Measure the resistance between the parking aid switch C2114-4, circuit 1205 (BK), harness side and ground.
    Fig 4: Measuring Resistance Between Parking Aid Switch C2114-4, Circuit 1205 (BK), Harness Side & Ground
    G04658192Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?

    Yes:  INSTALL a new parking aid switch. REFER to PARKING AID SWITCH . CLEAR the DTCs. REPEAT the self-test.

    No:  REPAIR the circuit. CLEAR the DTCs. REPEAT the self-test.

  5. I5 CHECK FOR CORRECT PARKING AID MODULE OPERATION
    • Disconnect the parking aid module connector.
    • Check for:
    • corrosion
    • pushed-out pins
    • Connect the parking aid module connector and make sure it seats correctly.
    • Operate the system and determine if the concern is still present.
    • Is the concern still present?

    Yes:  INSTALL a new parking aid module. REFER to PARKING AID MODULE . TEST the system for normal operation.

    No:  The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the self-test.
