Pinpoint Test R: The RH Turn Indicator Is Never On

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. R1 VERIFY THE RH TURN SIGNAL OPERATION
    • Verify the RH turn signal operation.
    • Does the RH turn signal operate correctly?
    • Yes  : GO to R2.
    • No  : REFER to EXTERIOR LIGHTING to continue diagnosis of the turn signals.
  2. R2 CHECK CIRCUIT 1392 (LG/OG) FOR POWER
    • Disconnect: Instrument Cluster C220a.
    • Key in ON position.
    • Place the multifunction switch in the RH turn signal position.
    • Measure the voltage between the instrument cluster C220a-16, circuit 1392 (LG/OG), harness side and ground.

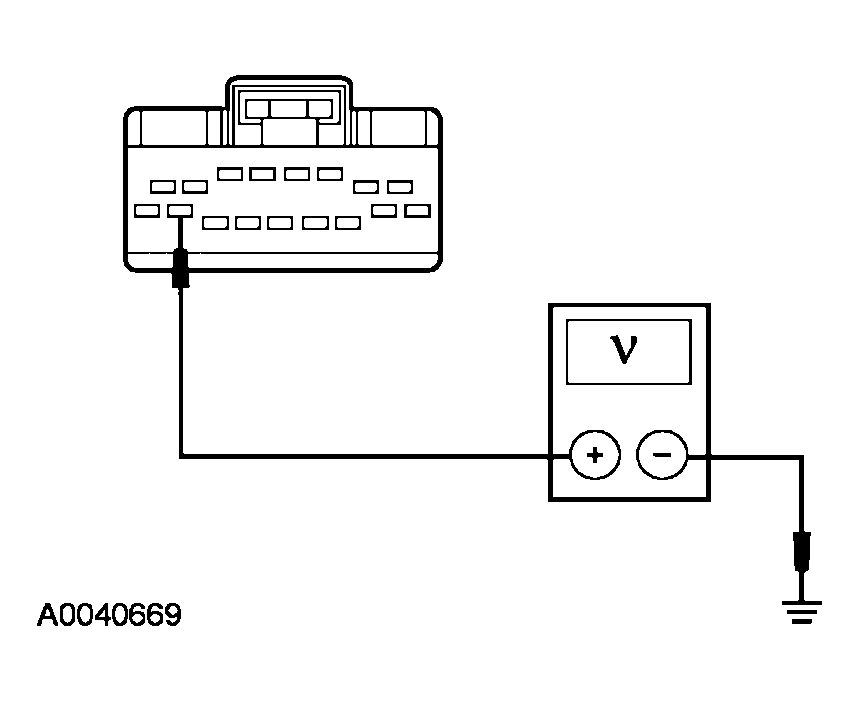

      Fig 1: Measuring Voltage Between Instrument Cluster C220a-16, Circuit 1392 (LG/OG), Harness Side And Ground
      G03945382Courtesy of FORD MOTOR CO.
    • Does the voltage fluctuate between 0 and greater than 10 volts?
    • Yes  : GO to R3.
    • No  : REPAIR the circuit. TEST the system for normal operation.
  3. R3 CHECK CIRCUIT 1205 (BK) FOR AN OPEN
    • Key in OFF position.
    • Disconnect: Instrument Cluster C220a.
    • Measure the resistance between the instrument cluster C220b-11, circuit 1205 (BK), harness side and ground.

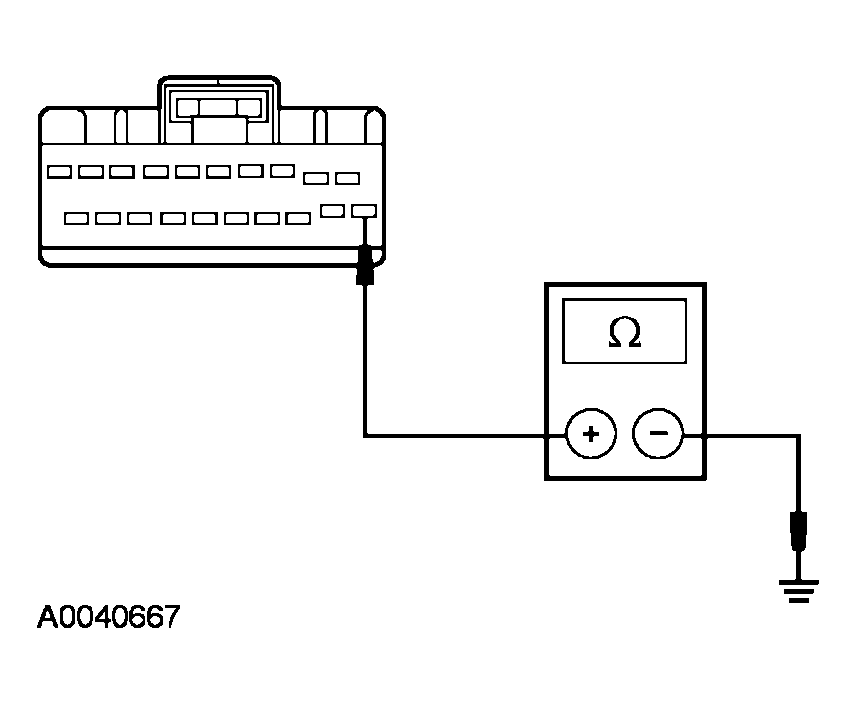

      Fig 2: Measuring Resistance Between Instrument Cluster C220b-11, Circuit 1205 (BK), Harness Side And Ground
      G03945381Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?
    • Yes  : GO to R4.
    • No  : REPAIR the circuit. TEST the system for normal operation.
  4. R4 CHECK FOR CORRECT INSTRUMENT CLUSTER OPERATION
    • Disconnect all the instrument cluster connectors.
    • Check for:
      • corrosion
      • pushed-out pins
    • Connect all the instrument cluster connectors and make sure they seat correctly.
    • Operate the system and verify the concern is still present.
    • Is the concern still present?
    • Yes  : INSTALL a new instrument cluster. REFER to INSTRUMENT CLUSTER . TEST the system for normal operation.
    • No  : The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector.
