Removal & Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front disc brake rotor shield. For additional information, refer to BRAKE DISC SHIELD .
  2. Disconnect the front wheel speed sensor electrical connector.
    CAUTION: Make sure the ABS harness is properly routed to prevent the disc from cutting the ABS harness.
  3. Remove the 2 screws and the front wheel speed sensor.

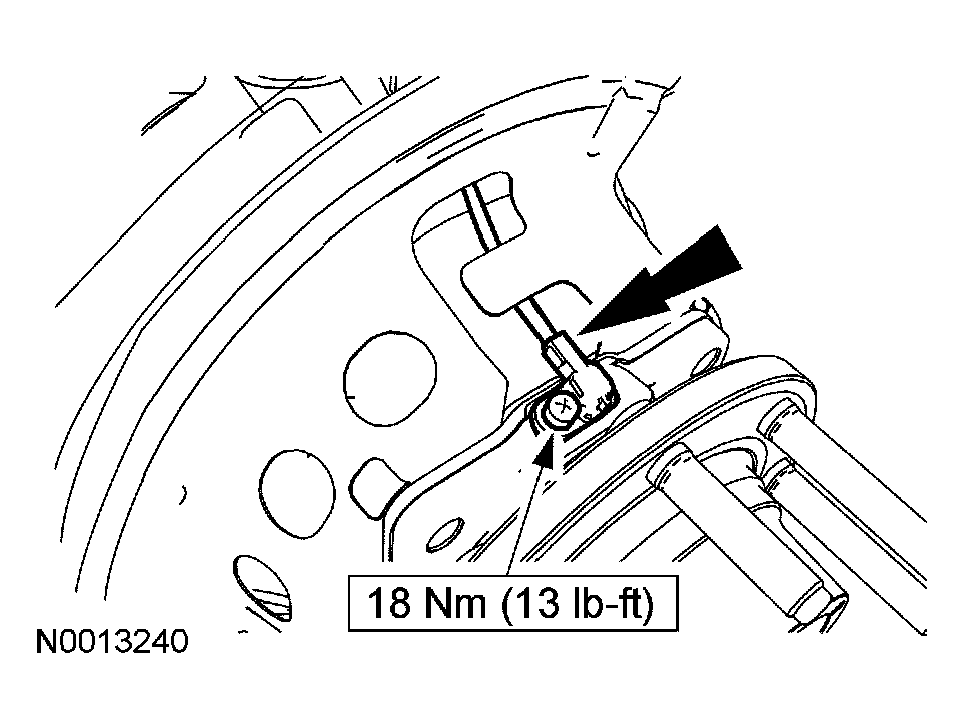

    Fig 1: Removing 2 Screws & Front Wheel Speed Sensor
    G03924228Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
