Removal & Installation

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable. Rotate center instrument panel finish panel vents inward. See Fig 1. Through vent openings, grasp center instrument panel finish panel and pull outward. Detach center instrument panel finish panel.
  2. Disconnect Passenger Airbag Deactivation (PAD) switch connector. See Fig 2. Disconnect 4WD control switch connector (if equipped). See Fig 3. Remove center instrument panel finish panel.
  3. Remove 4 screws attaching control panel to instrument panel. See Fig 4. Pull control panel far enough from opening to disconnect electrical connectors and illumination light. See Fig 5. Disconnect vacuum harness connector. Remove control panel from instrument panel.
  4. To install, reverse removal procedure.

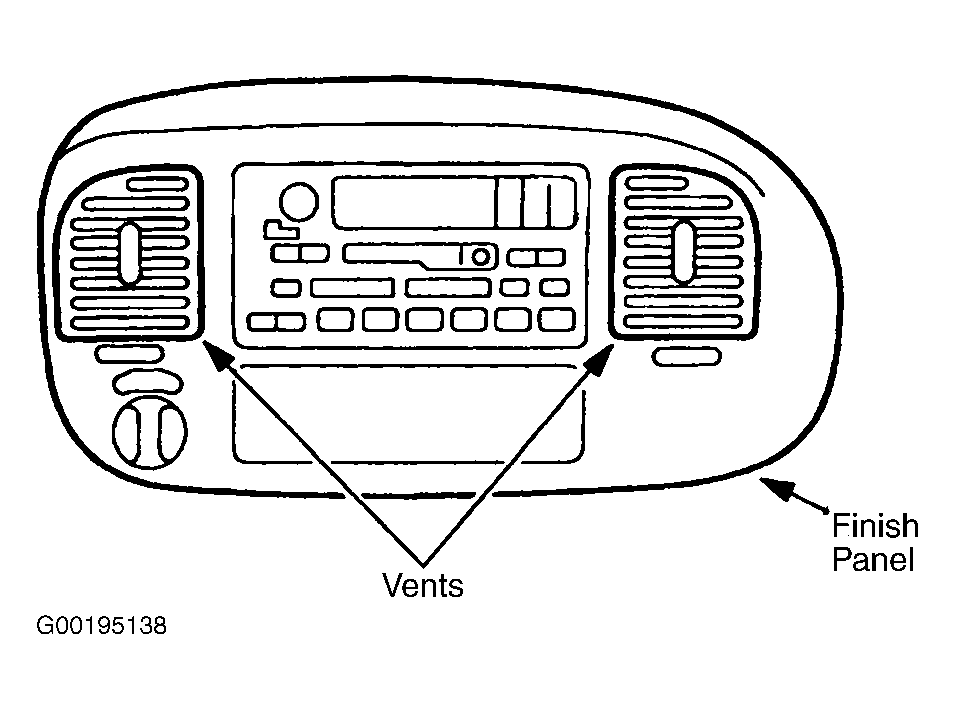

Fig 1: Identifying Finish Panel Vents
G00195138Courtesy of FORD MOTOR CO.

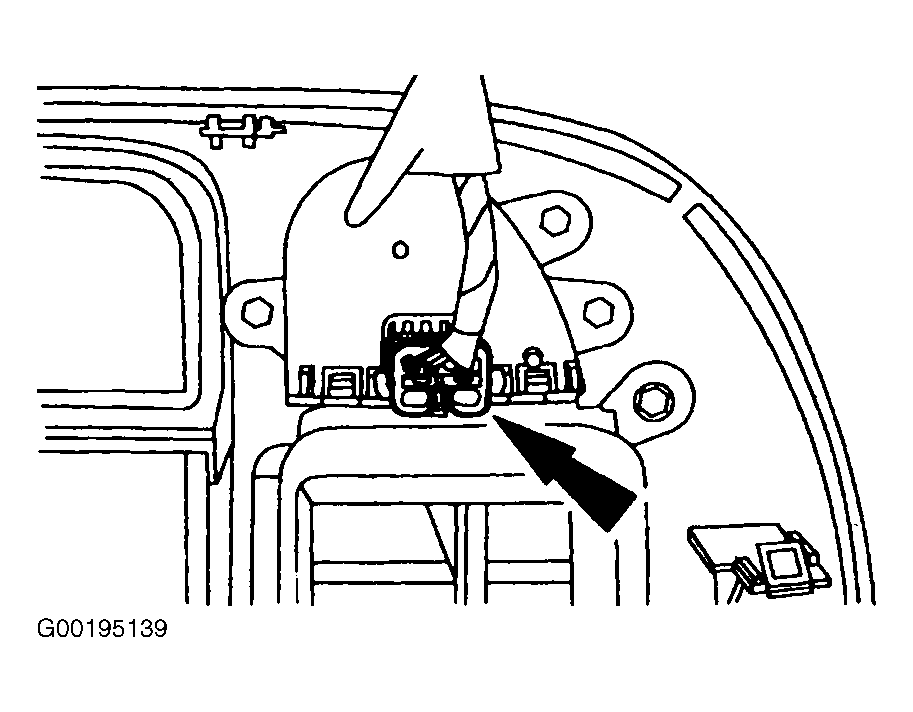

Fig 2: Identifying Passenger Air Bag Deactivation Switch Connector
G00195139Courtesy of FORD MOTOR CO.

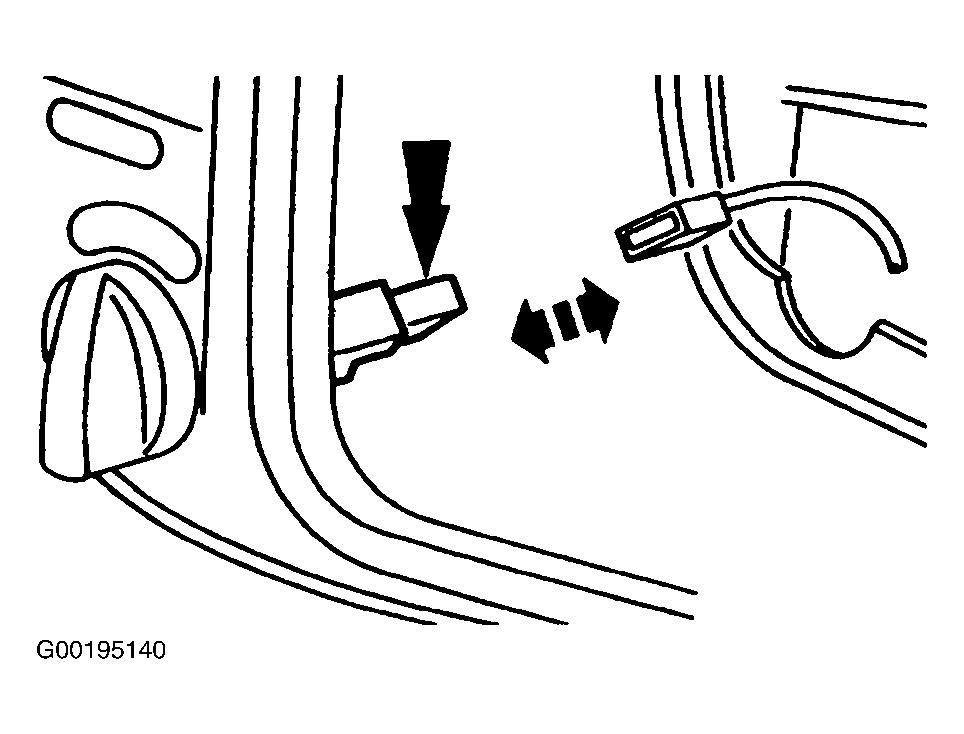

Fig 3: Disconnecting 4WD Control Switch Connector
G00195140Courtesy of FORD MOTOR CO.

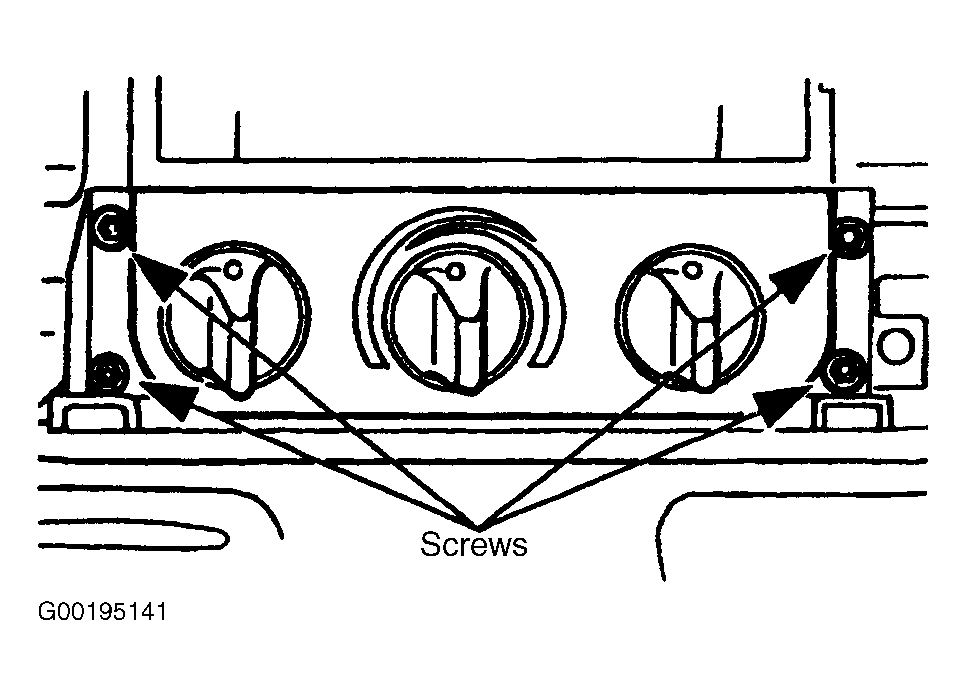

Fig 4: Removing & Installing Control Panel
G00195141Courtesy of FORD MOTOR CO.

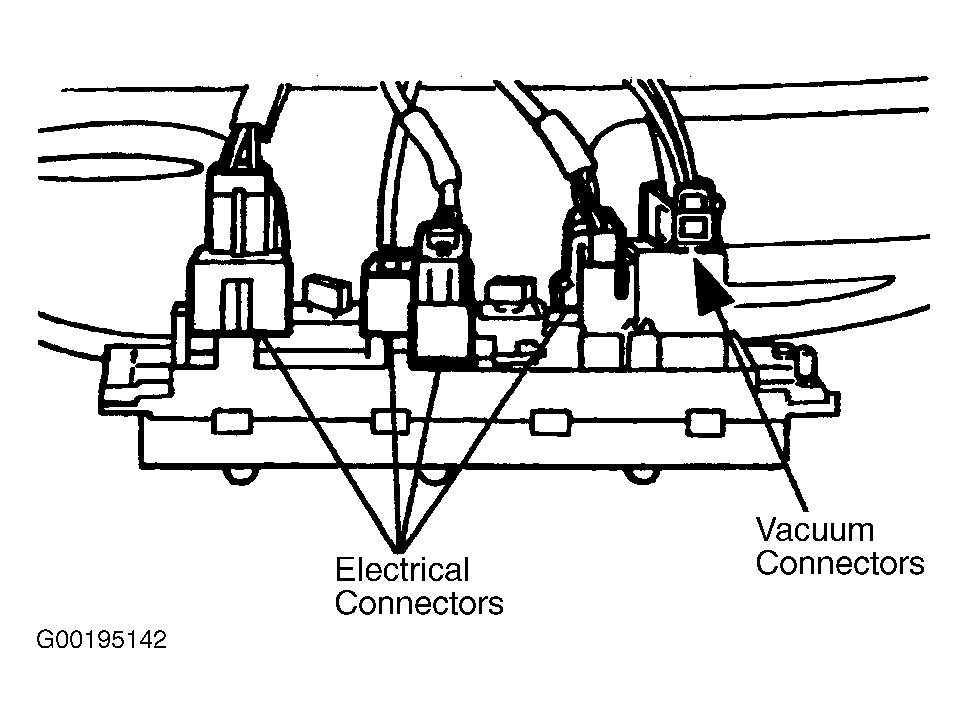

Fig 5: Disconnecting Control Panel Connectors
G00195142Courtesy of FORD MOTOR CO.
