Removal & Installation

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS  . RCM is located on center tunnel, under instrument panel. Disable air bag system. See DISABLING SYSTEM  under DISABLING & ACTIVATING AIR BAG SYSTEM.
  2. Remove push pins and lower center instrument panel finish panel. Disengage RCM electrical connector locking clip and disconnect electrical connector. Remove RCM bracket retaining bolts. Remove RCM with bracket from vehicle.
  3. To install, reverse removal procedure. Tighten fasteners to specification. See TORQUE SPECIFICATIONS  . Connect negative battery cable. With air bag simulators installed at all deployable devices, perform system operation check. See SYSTEM OPERATION CHECK  . Activate air bag system. See ACTIVATING SYSTEM  under DISABLING & ACTIVATING AIR BAG SYSTEM.

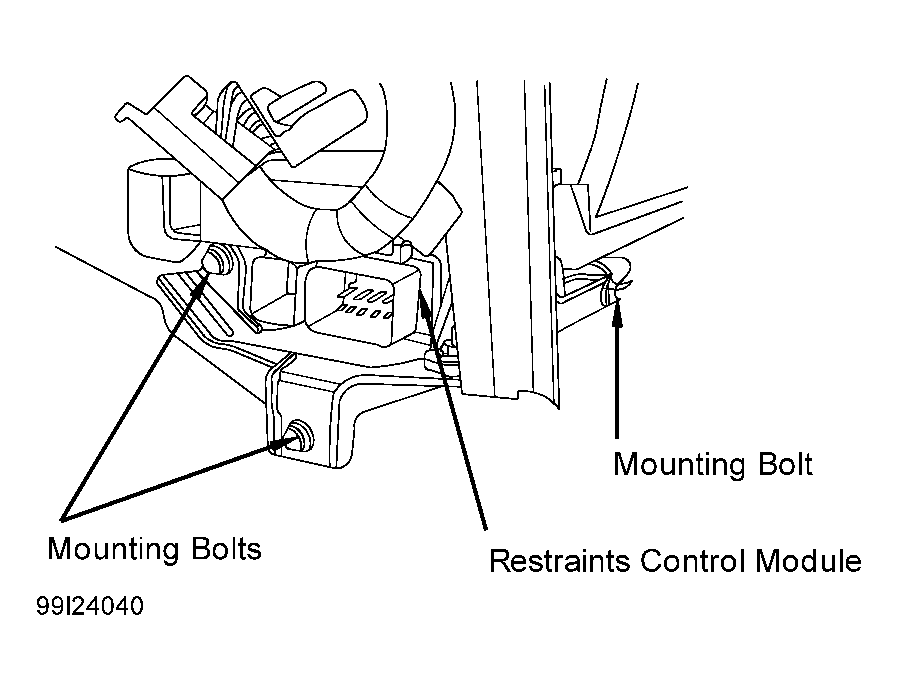

Fig 1: Identifying Restraints Control Module (RCM)
G99I24040Courtesy of FORD MOTOR CO.
