Pinpoint Test N: The Turn Signal Lamps Are Inoperative

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. N1 CHECK THE VOLTAGE TO THE INDICATOR FLASHER
    • Disconnect: Indicator Flasher Relay C2047.
    • Key in ON position.
    • Measure the voltage between the indicator flasher relay C2047-5, harness side and ground.

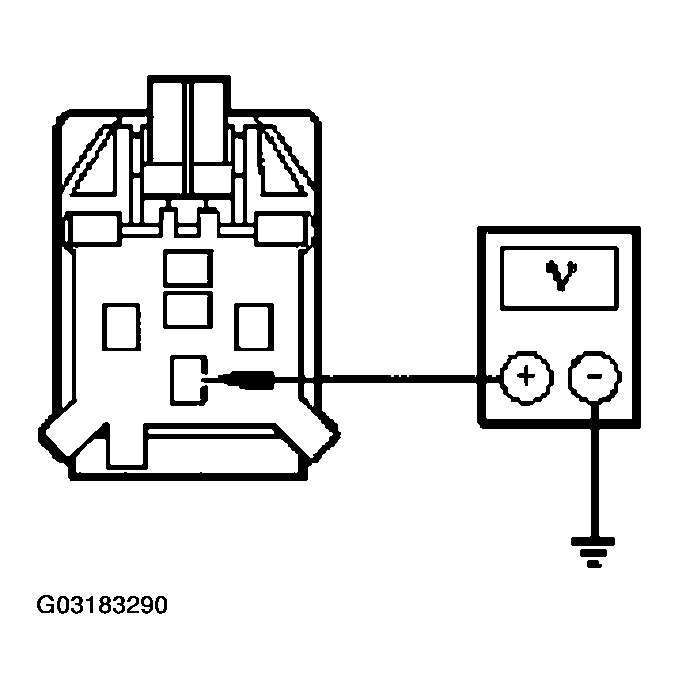

    Fig 1: Checking Voltage To Indicator Flasher
    G03183290Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?

    Yes

    GO to N2.

    No

    REPAIR the supply circuit. TEST the system for normal operation.

  2. N2 CHECK CIRCUIT 1205 (BK) FOR AN OPEN
    • Key in OFF position.
    • Measure the resistance between the indicator flasher relay C2047-4, circuit 1205 (BK), harness side and ground.

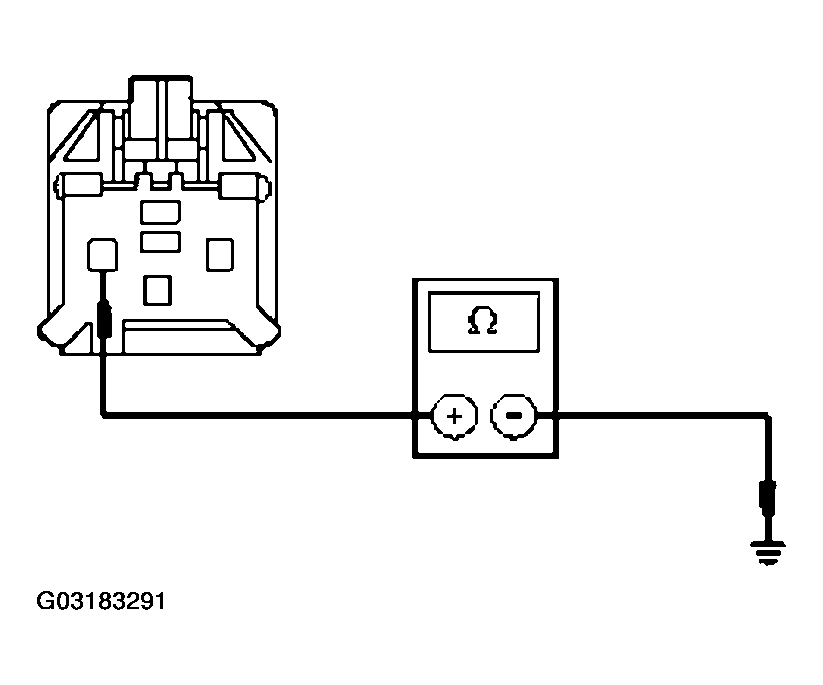

      Fig 2: Checking Circuit 1205 (BK) For An Open
      G03183291Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?

    Yes

    GO to N3.

    No

    REPAIR the circuit. TEST the system for normal operation.

  3. N3 CHECK CIRCUIT 44 (LB) FOR AN OPEN OR SHORT TO GROUND
    • Key in OFF position.
    • Disconnect: Multifunction Switch C202b.
    • Measure the resistance between the multifunction switch C202b-4, circuit 44 (LB), harness side and the indicator flasher relay C2047-1, circuit 44 (LB), harness side; and between the multifunction switch C202b-4, circuit 44 (LB), harness side and ground.

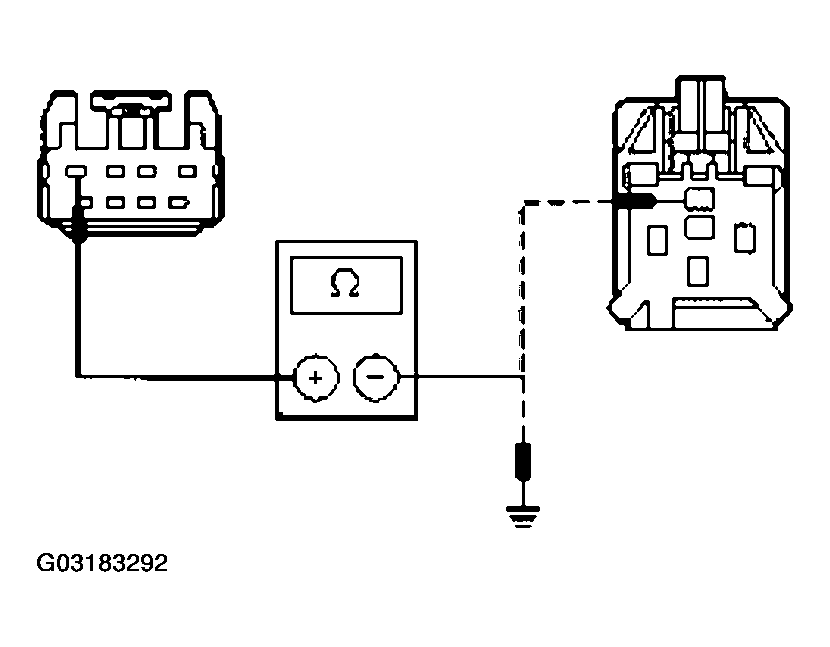

      Fig 3: Checking Circuit 44 (LB) For An Open Or Short To Ground
      G03183292Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms between the multifunction switch and the indicator flasher relay; and greater than 10,000 ohms between the multifunction switch and ground?

    Yes

    GO to N4.

    No

    REPAIR the circuit. TEST the system for normal operation.

  4. N4 CHECK THE MULTIFUNCTION SWITCH
    • Carry out the multifunction switch component test.

      Refer to COMPONENT TESTING for schematic and connector information.

    • Is the multifunction switch OK?

    Yes

    INSTALL a new indicator flasher relay. TEST the system for normal operation.

    No

    INSTALL a new multifunction switch. Refer to STEERING COLUMN SWITCHES . TEST the system for normal operation.
