Removal And Installation

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the hood latch. For additional information, refer to Hood Latch .
  2. Disconnect the 2 hood latch release handle and cable locators.
    3. Fig 1: Hood Latch Release Handle And Cable Locators
    GF0011454Courtesy of FORD MOTOR CO.
  3. Remove the hood latch release handle and cable cover.

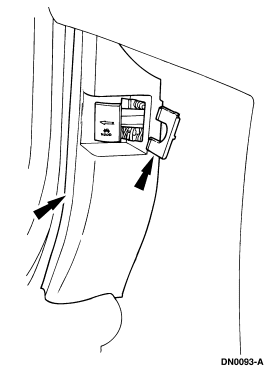

    4. Fig 2: Hood Latch Release Handle And Cable Cover
    GF0011455Courtesy of FORD MOTOR CO.
  4. Remove the 2 screws and the hood latch release handle and the cable.
  5. To install, reverse the removal procedure.
