Pinpoint Test A: Both Headlamps Are Inoperative

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. A1 CHECK FOR VOLTAGE TO THE SJB
    • Key in OFF position.
    • Disconnect: SJB C2280b.
    • Measure the voltage between the SJB, harness side and ground as follows:
      SJB CONNECTOR-PIN REFERENCE

      SJB Connector-Pin Circuit
      C2280b-2 1695 (YE/WH)
      C2280b-3 54 (LG/YE)
      C2280b-29 1682 (RD/LB)
    • Are the voltages greater than 10 volts?

    Yes:  GO to  A2.

    No:  VERIFY the BJB fuse 2 (25A) (Escape, Mariner), fuse 3 (25A) (Escape, Mariner), fuse 21 (40A) (Escape, Mariner), fuse 12 (40A) (Hybrid), fuse 13 (40A) (Hybrid), or fuse 23 (40A) (Hybrid) is OK. If OK, REPAIR the circuit(s) in question. TEST the system for normal operation.

  2. A2 CHECK CIRCUIT 570 (BK/WH) FOR AN OPEN
    • Disconnect: Multifunction Switch C2080.
    • Measure the resistance between the multifunction switch C2080-10, circuit 570 (BK/WH), harness side and ground.
      Fig 1: Checking Circuit 570 (BK/WH) For An Open
      G04621951Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?

    Yes:  GO to  A3.

    No:  REPAIR the circuit. TEST the system for normal operation.

  3. A3 CHECK THE MULTIFUNCTION SWITCH

    Yes:  GO to  A4.

    No:  INSTALL a new multifunction switch. REFER to STEERING COLUMN MULTIFUNCTION SWITCH . TEST the system for normal operation.

  4. A4 CHECK CIRCUIT 1033 (RD/YE) FOR AN OPEN
    • Disconnect: SJB C2280e.
    • Measure the resistance between the multifunction switch C2080-13, circuit 1033 (RD/YE), harness side and the SJB C2280e-1, circuit 1033 (RD/YE), harness side.

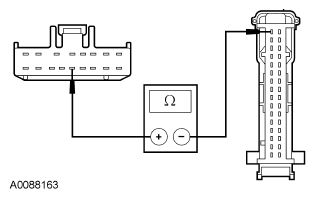

      Fig 2: Checking Circuit 1033 (RD/YE) For An Open
      G04621952Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?

    Yes:  GO to  A5.

    No:  REPAIR the circuit. TEST the system for normal operation.

  5. A5 CHECK FOR CORRECT SJB OPERATION
    • Disconnect all the SJB connectors.
    • Check for:
      • corrosion
      • pushed-out pins
    • Connect all the SJB connectors and make sure they seat correctly.
    • Operate the system and verify the concern is still present.
    • Is the concern still present?

    Yes:  INSTALL a new SJB. REFER to SMART JUNCTION BOX (SJB) . TEST the system for normal operation.

    No:  The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector.
