Pinpoint Test T: The Reversing Lamps Are Inoperative
- T1 CHECK THE DIGITAL TRANSMISSION RANGE (TR) SENSOR ADJUSTMENT WARNING: If equipped with a fire suppression system, refer to FIRE SUPPRESSION SYSTEM for important safety warnings.
- Key in OFF position.
- If equipped with a fire suppression system, depower the system. REFER to FIRE SUPPRESSION SYSTEM .
- Check the digital TR sensor adjustment. Refer to AUTOMATIC TRANSAXLE/TRANSMISSION .
- Is the digital TR sensor adjusted correctly?
Yes : GO to T2.
No : ADJUST the digital TR sensor. REFER to AUTOMATIC TRANSAXLE/TRANSMISSION . TEST the system for normal operation.
If equipped with a fire suppression system, REPOWER the system. REFER to FIRE SUPPRESSION SYSTEM .
- T2 CHECK CIRCUIT 1789 (VT/WH) FOR AN OPEN
- Disconnect: Digital TR Sensor C167.
- Key in ON position.

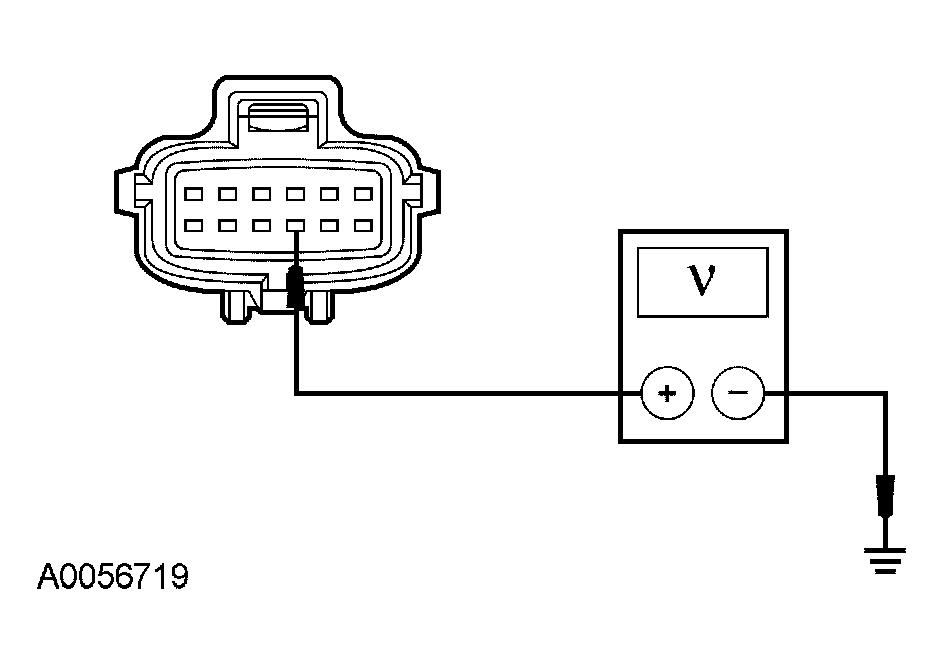

- Measure the voltage between the digital TR sensor C167-9, circuit 1789 (VT/WH), harness side and ground.
- Is the voltage greater than 10 volts?
Yes : GO to T3.
No : VERIFY the CJB fuse 20 (10A) is OK. If OK, REPAIR the circuit. TEST the system for normal operation. If equipped with a fire suppression system, REPOWER the system. REFER to FIRE SUPPRESSION SYSTEM .
- T3 CHECK CIRCUIT 140 (BK/PK) FOR AN OPEN
- Key in OFF position.

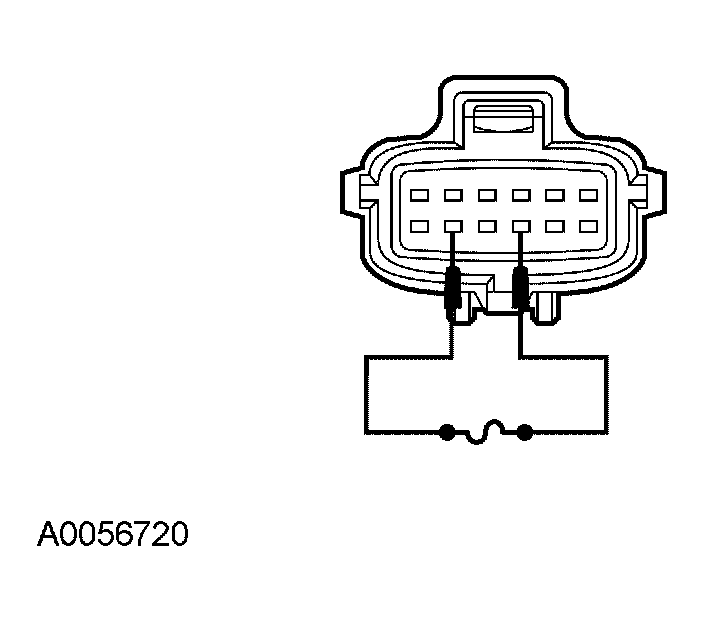

- Connect a fused (10A) jumper wire between the digital TR sensor C167-9, circuit 1789 (VT/WH), harness side and the digital TR sensor C167-11, circuit 140 (BK/PK), harness side.
- Key in ON position.
- Do the reversing lamps illuminate?
Yes : INSTALL a new digital TR sensor. REFER to AUTOMATIC TRANSAXLE/TRANSMISSION . TEST the system for normal operation. If equipped with a fire suppression system, REPOWER the system. REFER to FIRE SUPPRESSION SYSTEM .
No : REPAIR the circuit. TEST the system for normal operation. If equipped with a fire suppression system, REPOWER the system. REFER to FIRE SUPPRESSION SYSTEM .
