Removal & Installation

  1. Remove the brake shoes and linings. See REAR BRAKE SHOES .
  2. Disconnect the brake line fitting. See Fig 1.
  3. Remove the two rear wheel cylinder bolts and remove the wheel cylinder.
  4. To install, reverse removal procedure. Adjust brake shoes as necessary. See REAR BRAKE SHOES  under ADJUSTMENTS. Bleed system as necessary. See BLEEDING BRAKE SYSTEM .

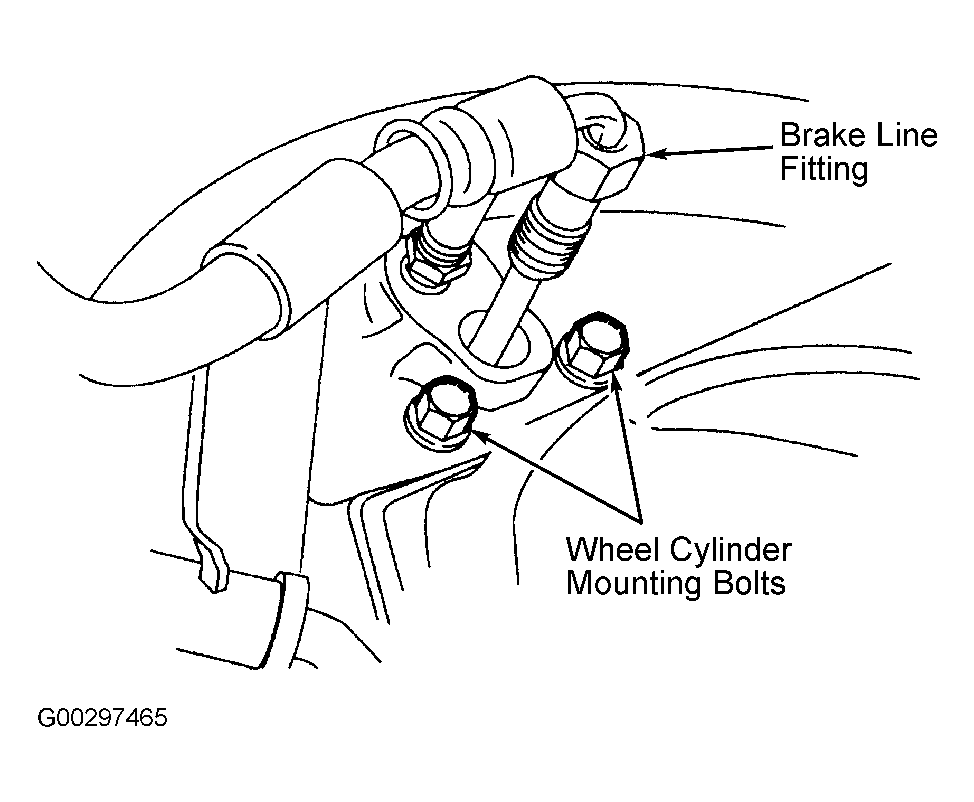

Fig 1: Identifying Wheel Cylinder Mounting Bolts & Brake Line Fitting
G00297465Courtesy of FORD MOTOR CO.
