Removal & Installation

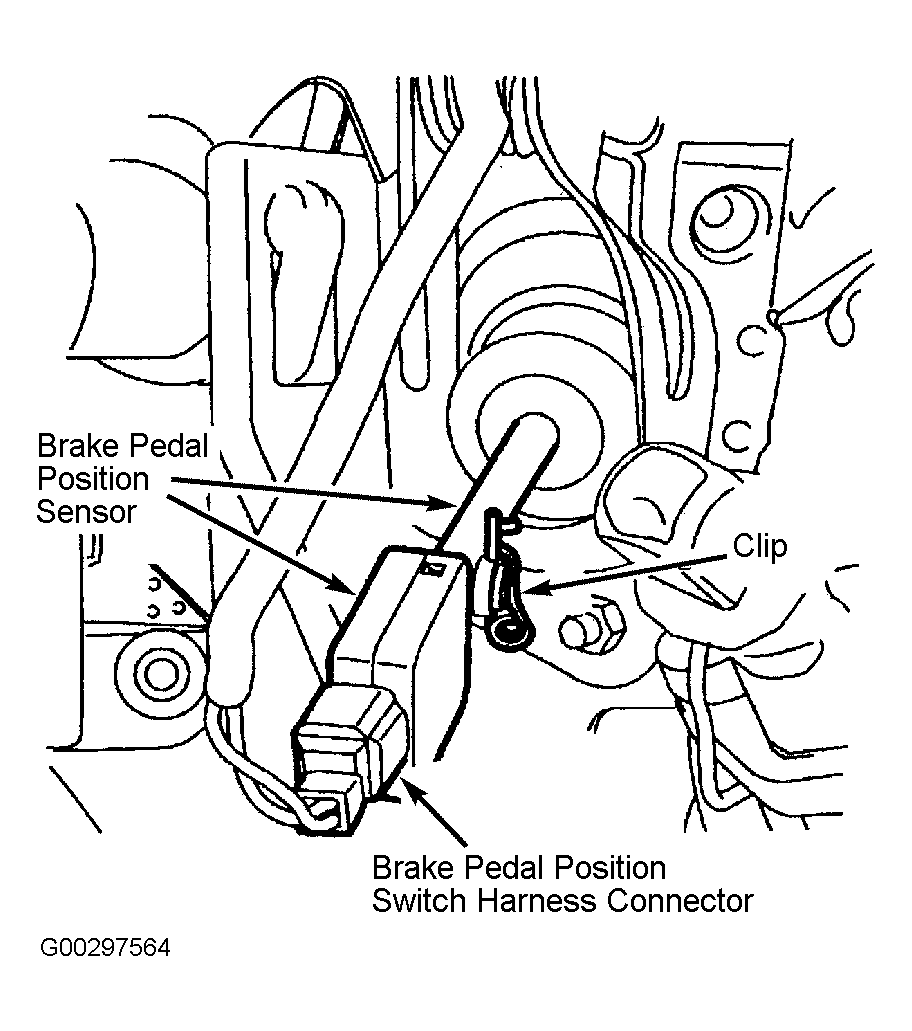

  1. Remove the brake pedal position switch. Disconnect the harness connector. Remove the clip. Remove the switch and the bushing. See Figure.

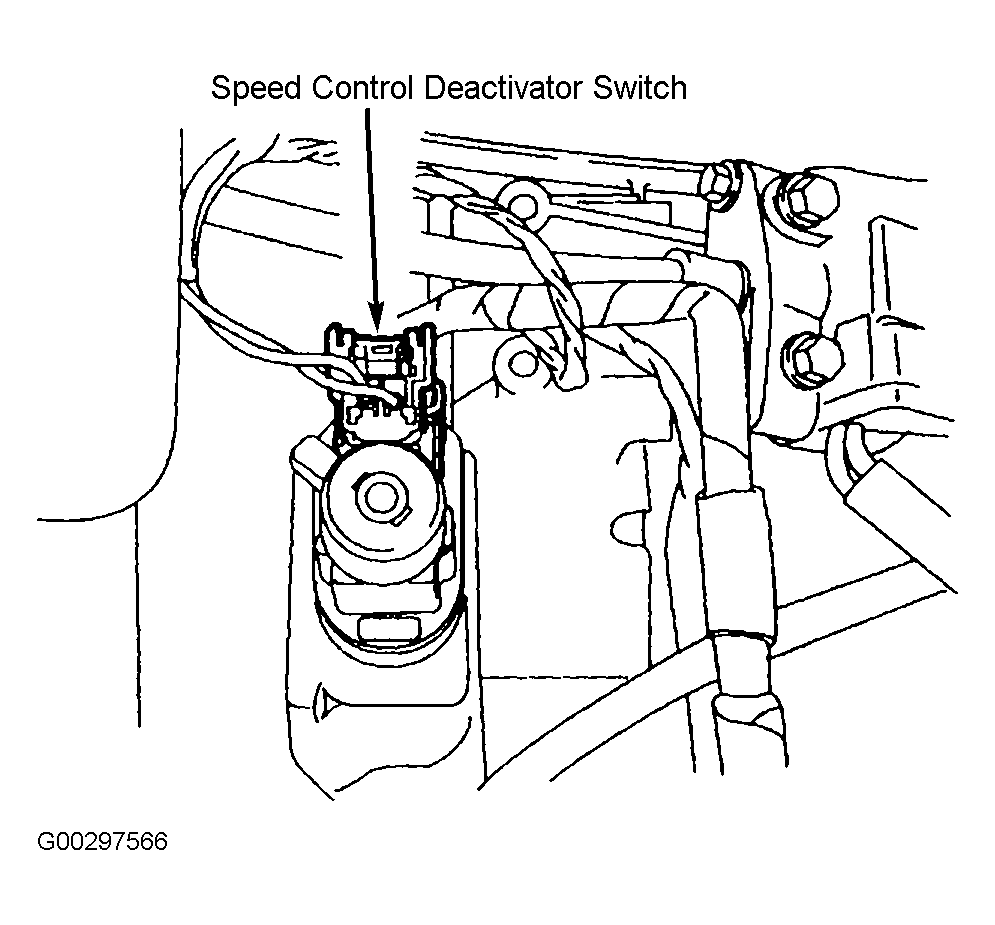

  2. Disconnect the speed control deactivator switch harness connector and detach the wiring harness retainers. See Figure.
  3. Remove the speed control deactivator switch. See Fig 2.
  4. Remove the upper mounting bolts. See Fig 1.

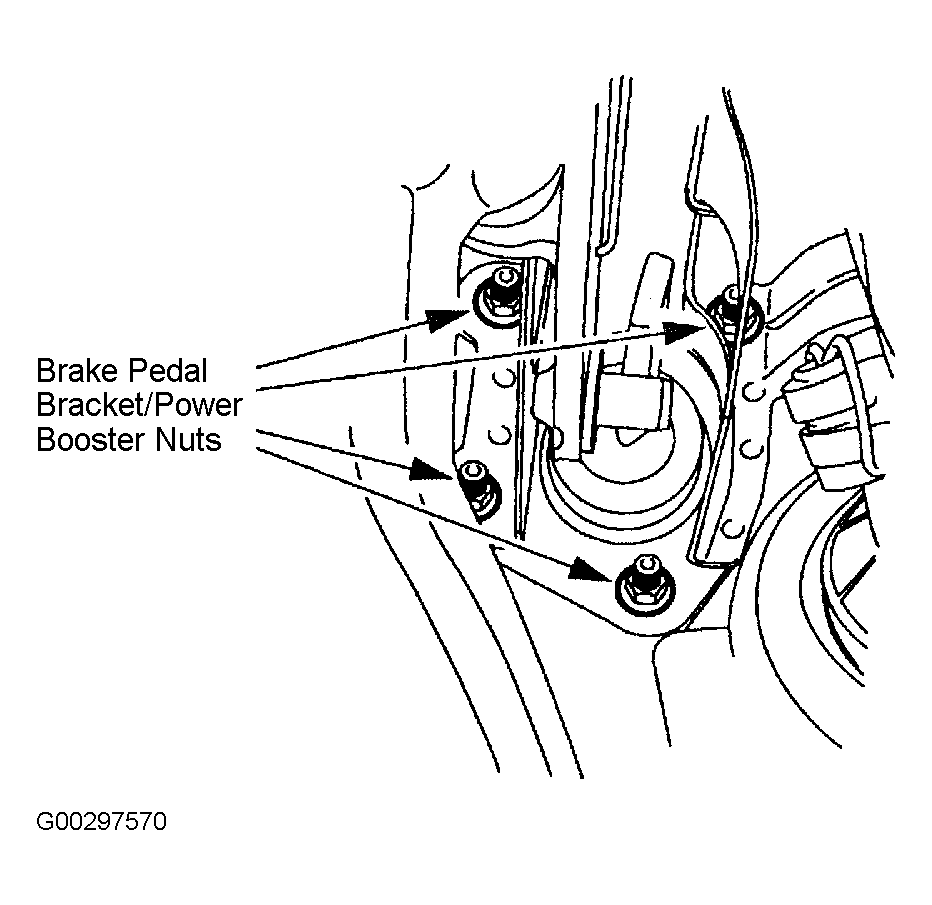

  5. Remove the brake pedal bracket/power booster nuts and the brake pedal. See Figure.
  6. To install, reverse the removal procedure.

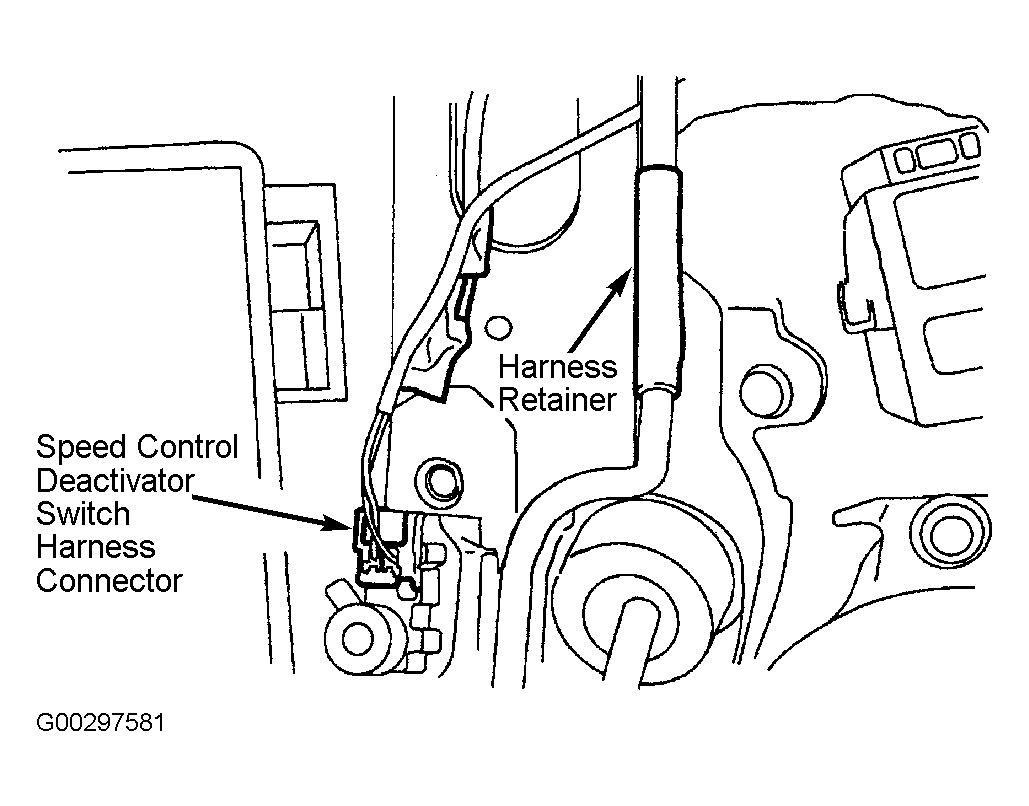

Fig 1: Identifying Speed Control Deactivator Switch Harness Connector & Harness Retainers
G00297581Courtesy of FORD MOTOR CO.

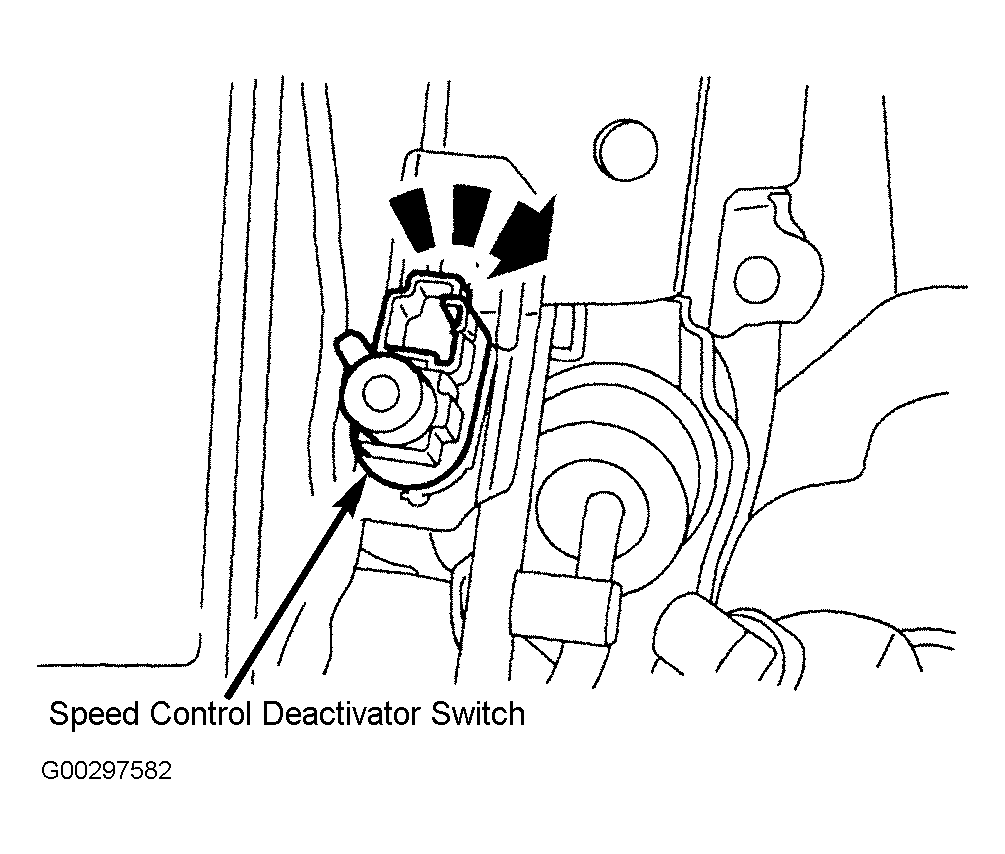

Fig 2: Removing Speed Control Deactivator Switch
G00297582Courtesy of FORD MOTOR CO.

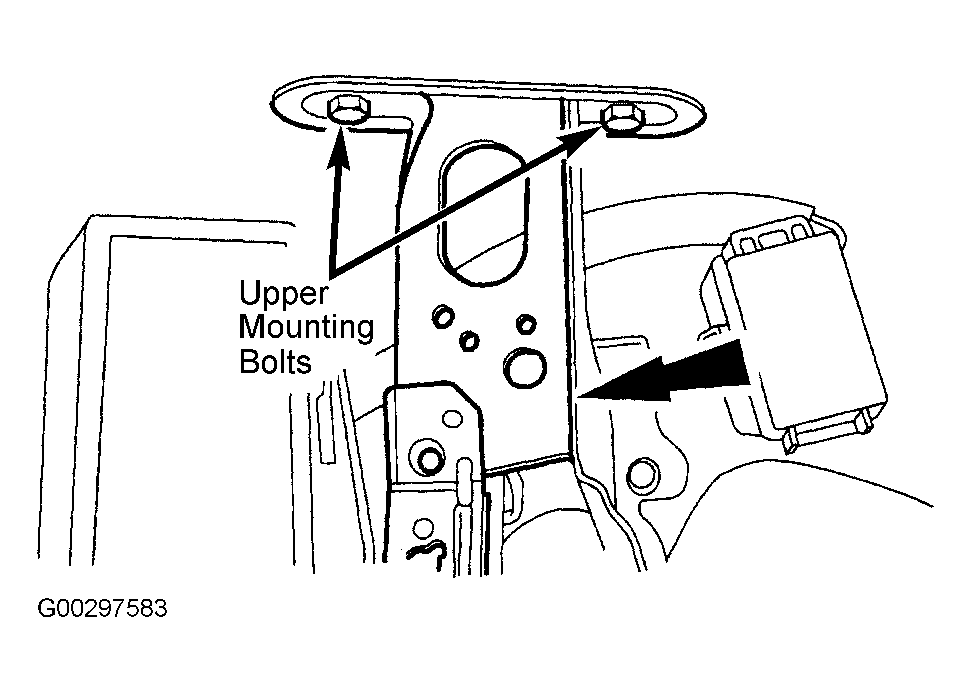

Fig 3: Locating Upper Mounting Bolts
G00297583Courtesy of FORD MOTOR CO.
