Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Release the tension on the rear parking brake. For additional information, refer to PARKING BRAKE CABLE TENSION RELEASE .
Separate the parking brake cables at the parking brake equalizer.

Fig 1: Separating Parking Brake Cables At Parking Brake Equalizer
Courtesy of FORD MOTOR CO.
Remove the 2 wires form bracket bolts from the frame rail and position the cable and conduit aside.

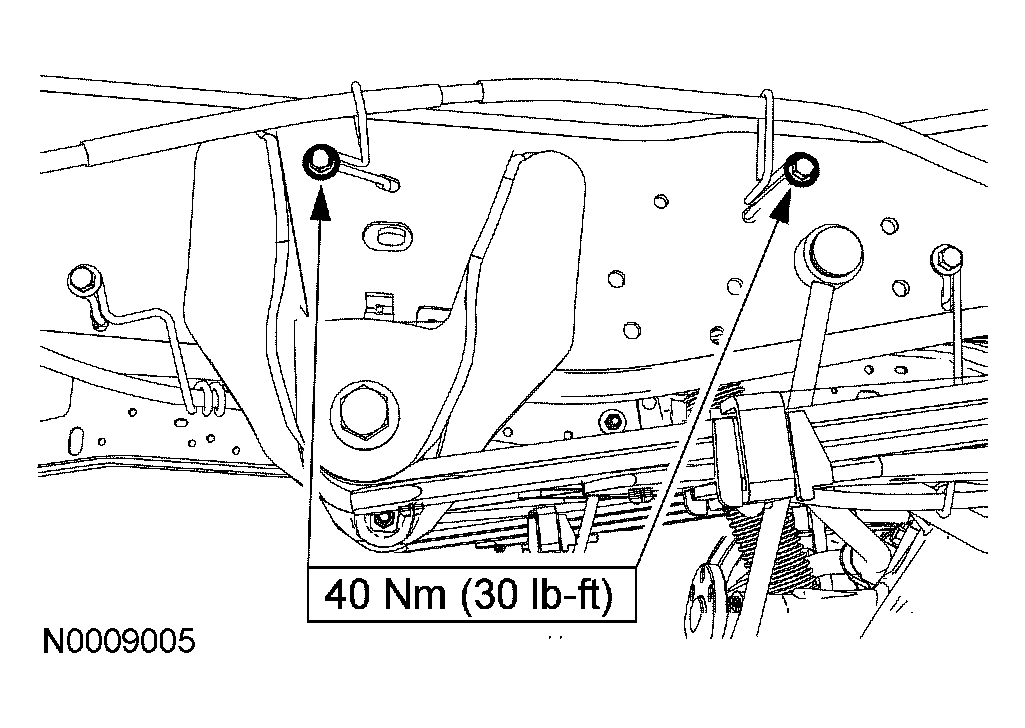

Fig 2: Removing 2 Wires Form Bracket Bolts From Frame Rail
Courtesy of FORD MOTOR CO.

NOTE: The parking brake cable and conduit must be routed to the outside of the leaf spring assembly.

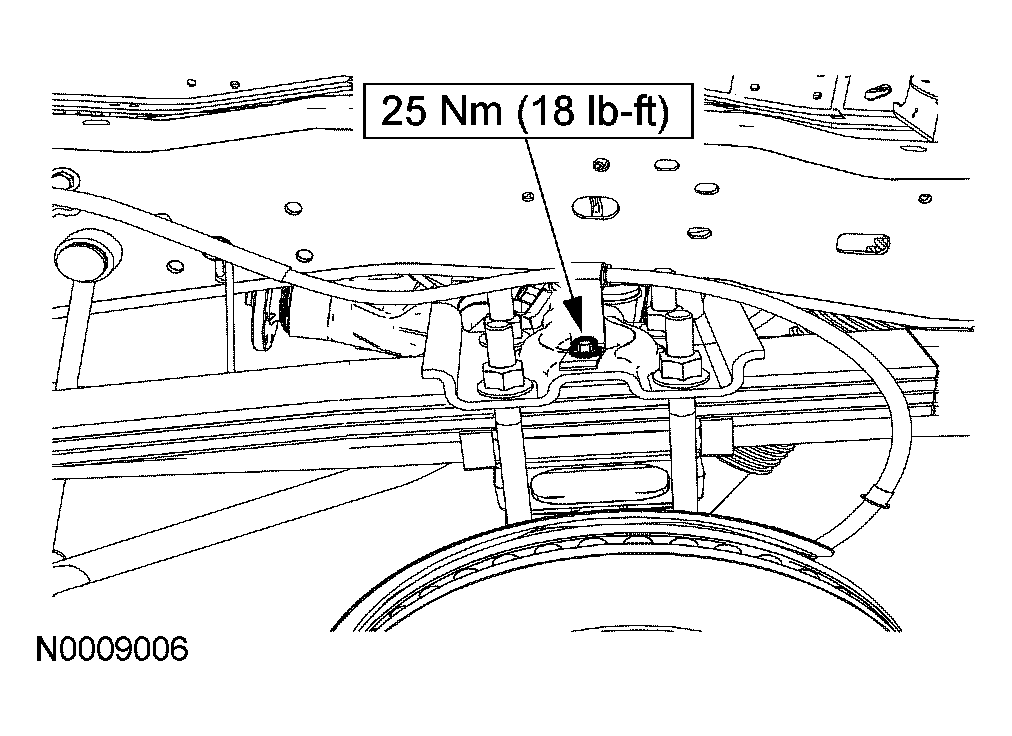

Fig 3: Removing Parking Brake Cable Bracket Bolt From LH Spring Bracket

Courtesy of FORD MOTOR CO.

Remove the parking brake cable bracket bolt from the LH spring bracket.
Release the parking brake cable from the LH parking brake bracket assembly.

Fig 4: Locating Parking Brake Cable At LH Bracket Assembly
Courtesy of FORD MOTOR CO.
Rotate the parking brake cable 90 degrees to release it from the parking brake actuating lever and remove the cable.

Fig 5: Locating Parking Brake Actuating Levers
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
