Removal and Installation

WARNING: This page is about a different car, the 2006 Ford Pickup and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the driveshaft. For additional information, refer to DRIVESHAFT .
Remove the rear wheels and tires. For additional information, refer to WHEELS & TIRES .
Disconnect the rear anti-lock brake sensor.

Fig 1: Disconnecting Rear Anti-Lock Brake Sensor
Courtesy of FORD MOTOR CO.
Remove the nuts and the stone shield.
- To install, tighten to 62 Nm (46 lb-ft).

  Fig 2: Locating Stone Shield
  Courtesy of FORD MOTOR CO.
Remove the caliper pin bolts.
- To install, tighten F250-F350 to 36 Nm (27 lb-ft). Tighten F450-F550 to 55 Nm (41 lb-ft).

  Fig 3: Locating Caliper Pin Bolts
  Courtesy of FORD MOTOR CO.
Remove the rear disc brake caliper.

Fig 4: Locating Rear Disc Brake Caliper
Courtesy of FORD MOTOR CO.

NOTE: Make sure the parking brake control is fully released.

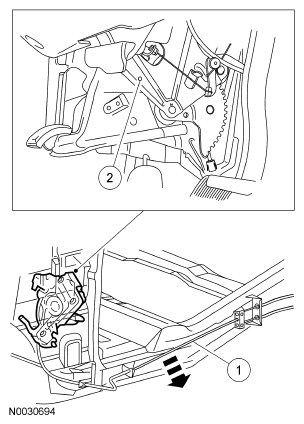

Release the tension on the parking brake system.
1. Have an assistant pull the front parking brake cable and conduit to its full range.
2. Insert a suitable retainer.

  Fig 5: Releasing Tension On Parking Brake System
  Courtesy of FORD MOTOR CO.
Disconnect the parking brake cable at the parking brake lever.
- Left side shown, right side similar.

  Fig 6: Disconnecting Parking Brake Cable At Parking Brake Lever
  Courtesy of FORD MOTOR CO.
Remove the cable clamp bolt.
- To install, tighten to 20 Nm (15 lb-ft).

  Fig 7: Identifying Cable Clamp Bolt
  Courtesy of FORD MOTOR CO.
Unclip the brake line and remove the retainer from the parking brake cable bracket and position the cable aside.
- To install, tighten to 18 Nm (13 lb-ft).

  Fig 8: Identifying Retainer From Parking Brake Cable Bracket
  Courtesy of FORD MOTOR CO.
Remove the bolt from the brake hose bracket.
- Left side shown, right side similar.
- To install, tighten to 7 Nm (62 lb-in).

  Fig 9: Identifying Bolt From Brake Hose Bracket
  Courtesy of FORD MOTOR CO.
Remove the vent hose at the brake hose junction block.

Fig 10: Removing Vent Hose At Brake Hose Junction Block
Courtesy of FORD MOTOR CO.
Remove the brake junction block from the rear axle housing and let it hang.

Fig 11: Locating Brake Junction Block From Rear Axle Housing
Courtesy of FORD MOTOR CO.
Remove the brake lines from the rear axle housing tie strap (but not from the disc brake calipers) and let the tubing hang.

WARNING: Strap the axle securely to the jack.

Fig 12: Locating Suitable Transmission Jack To Support Axle

Courtesy of FORD MOTOR CO.

Use a suitable transmission jack to support the axle.
Remove the lower shock absorber nuts and bolts.

Fig 13: Locating Lower Shock Absorber Nuts And Bolts
Courtesy of FORD MOTOR CO.
Loosen the nuts from both lower ends of the stabilizer bar links.

Fig 14: Locating Nuts From Both Lower Ends Of Stabilizer Bar Links
Courtesy of FORD MOTOR CO.

NOTE: When lowering or raising the differential housing, position the sway bar forward to clear the front of the differential housing.

Fig 15: Locating Stabilizer Bar Mounting Brackets And U-Bolts

Courtesy of FORD MOTOR CO.

Remove the nuts from both stabilizer bar retainer-to-axle brackets and remove the stabilizer bar retainers, stabilizer bar mounting brackets and U-bolts. Let the stabilizer bar hang from the links.

NOTE: Once the rear spring plate nuts and bolts are removed, new nuts and bolts must be installed.

Fig 16: Locating Rear Spring Plate U-Bolts And Nuts

Courtesy of FORD MOTOR CO.

Remove the rear spring plate U-bolts and nuts.
Lower the axle from the vehicle.
To install, reverse the removal procedure.
