Special Tool(s)

WARNING: This page is about a different car, the 2004 Ford Pickup and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

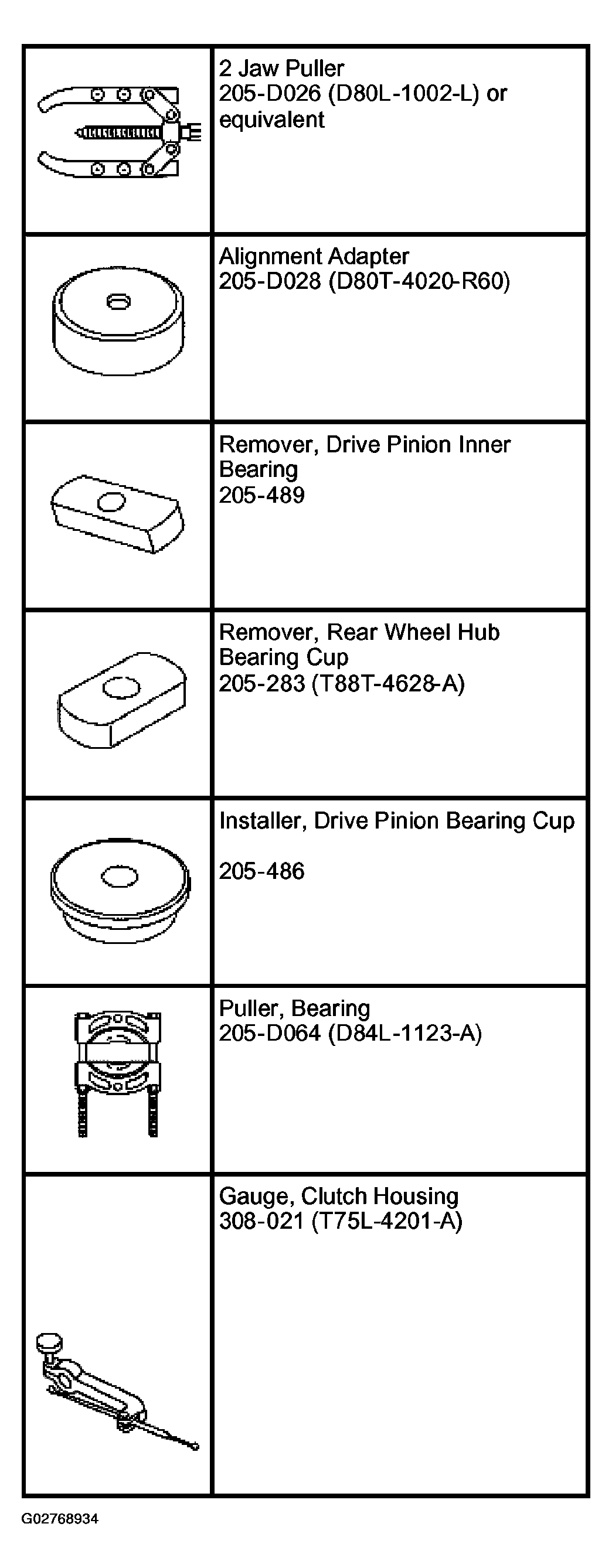

Fig 1: Identifying Special Tools(1 of 3)
G02768934Courtesy of FORD MOTOR CO.

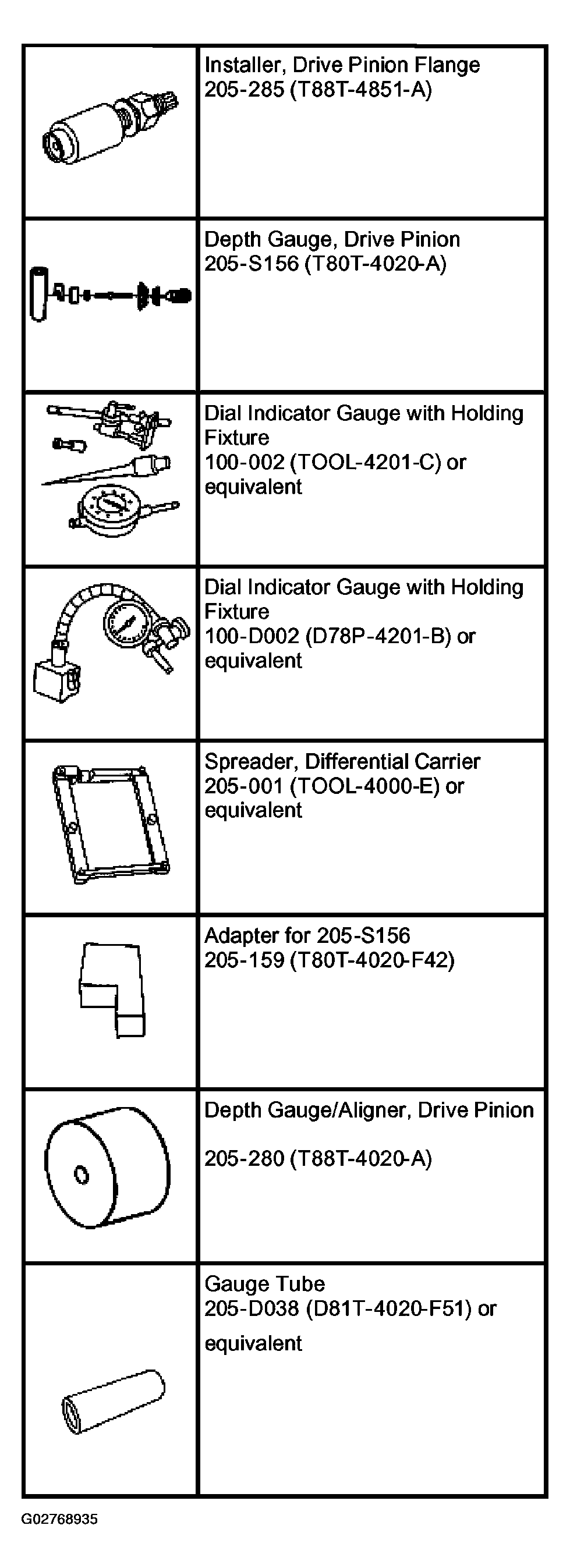

Fig 2: Identifying Special Tools(2 of 3)
G02768935Courtesy of FORD MOTOR CO.

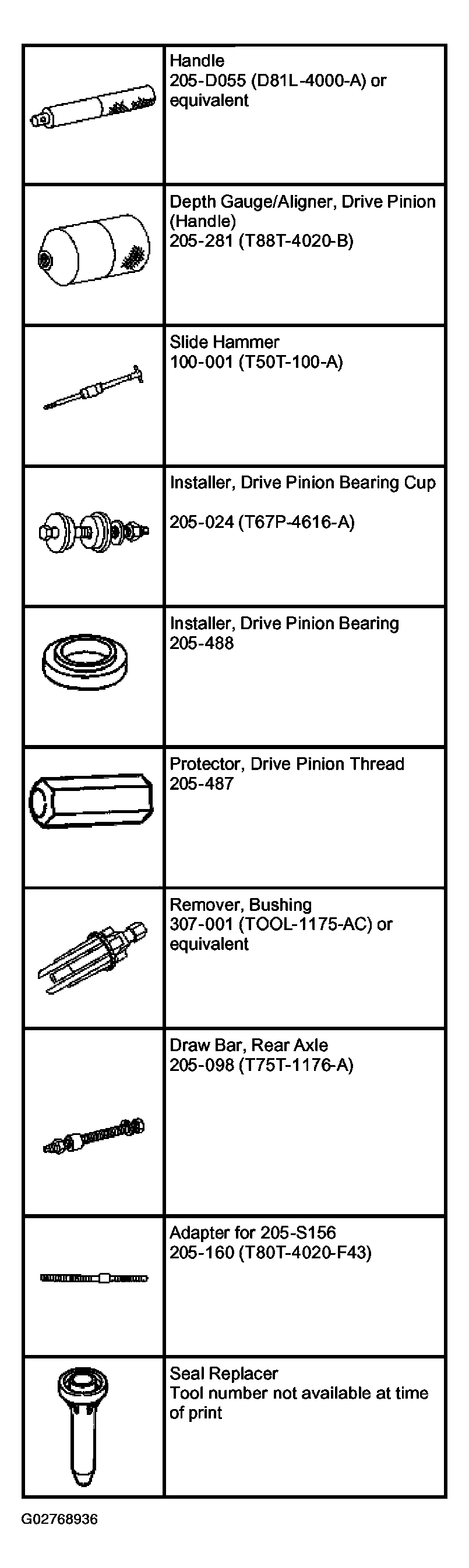

Fig 3: Identifying Special Tools(3 of 3)
G02768936Courtesy of FORD MOTOR CO.
