Removal & Installation

  1. Raise and support vehicle. Remove rear wheels.
  2. Pull back parking brake lever at rear caliper. Disconnect parking brake cable from lever. Remove conduit retaining clip (if equipped). Disconnect parking brake cable from brake caliper. See Fig 1.
  3. Using suitable brake hose clamp, clamp brake hose. Loosen brake fluid hose from caliper. See Fig 2.
  4. Disconnect caliper from brake anchor plate. See Fig 3.
  5. Remove pads from caliper and anchor plate.
  6. Remove caliper and disconnect from hose, if service is necessary.
  7. To install, reverse removal procedures. Use Rear Brake Caliper Piston Adjuster (T75P-2588-A) and Adapter (T87P-2588-A) for adjuster to retract caliper piston into caliper. See Fig 4. Ensure caliper retaining bolt springs are correctly located. See Fig 3.
Fig 1: Disconnecting Parking Brake Cable At Rear Caliper
G00294599Courtesy of FORD MOTOR CO.

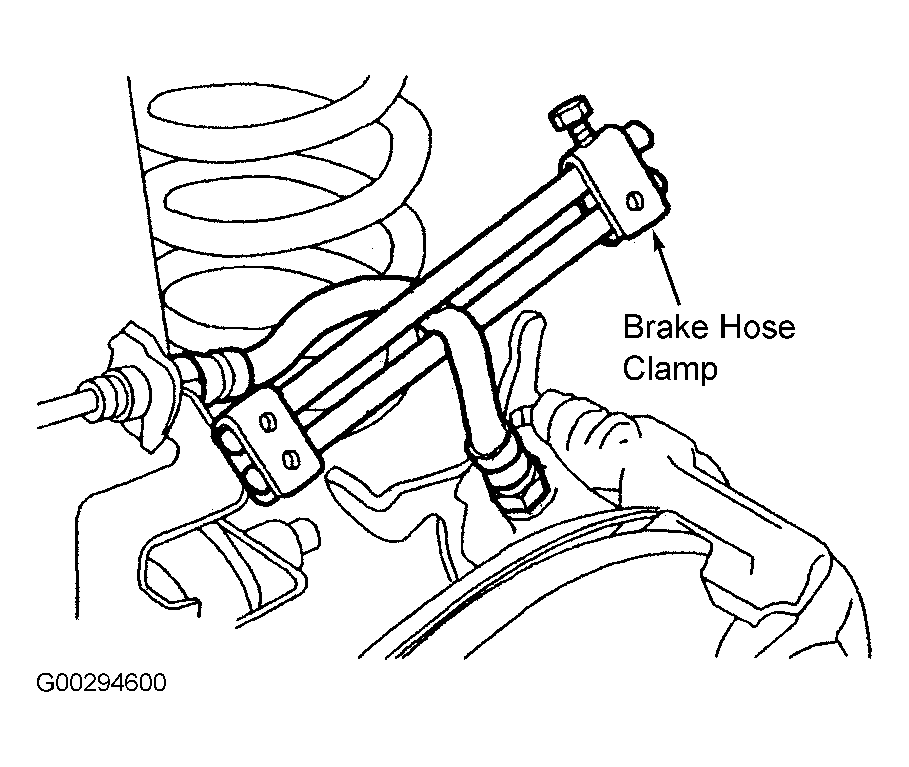

Fig 2: Installing Brake Hose Clamp
G00294600Courtesy of FORD MOTOR CO.

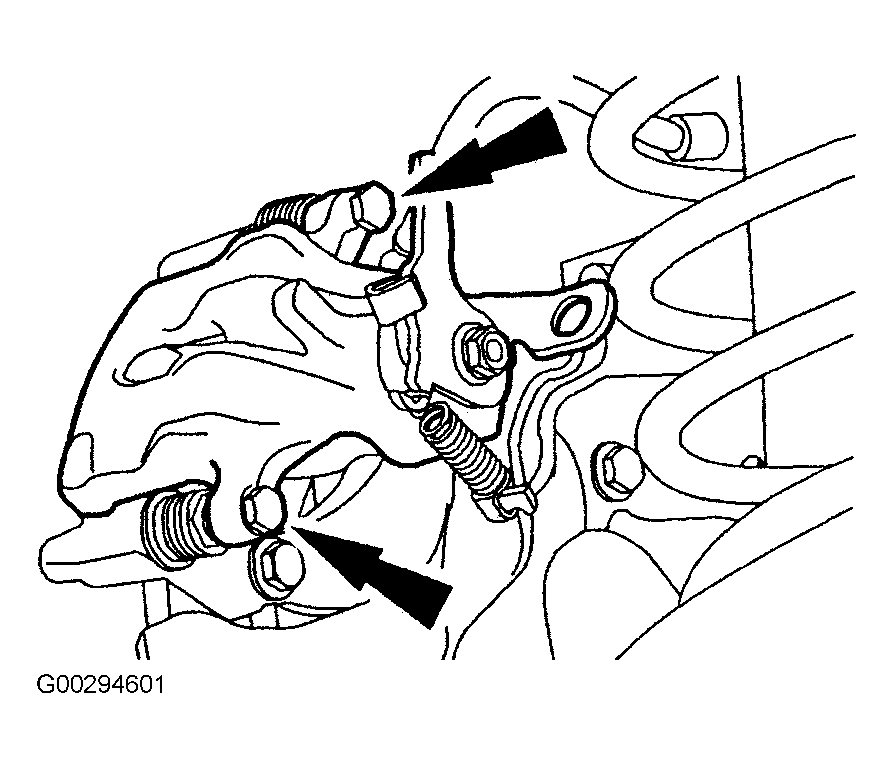

Fig 3: Locating Caliper Mounting Bolts & Springs
G00294601Courtesy of FORD MOTOR CO.

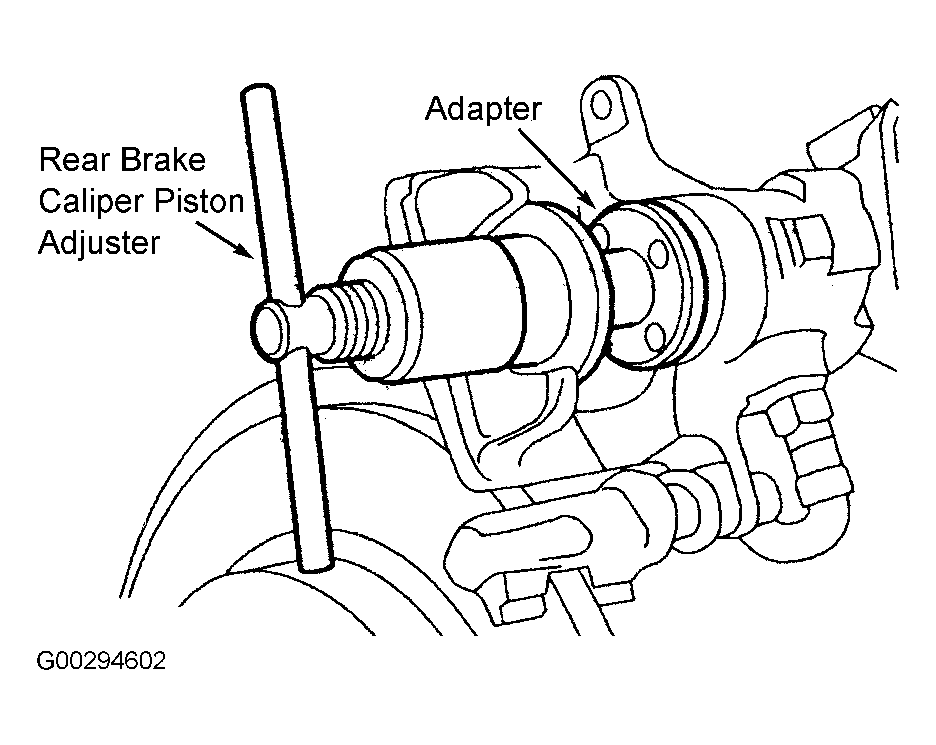

Fig 4: Retracting Piston Using Special Tools
G00294602Courtesy of FORD MOTOR CO.
