Pinpoint Test A: Shift And Torque Converter Clutch Solenoids (Only)

NOTE: Refer to TRANSAXLE VEHICLE HARNESS CONNECTOR .

NOTE: Refer to TRANSMISSION in SYSTEM WIRING DIAGRAMS article.

NOTE: Read and record all DTCs. All TR Sensor and OSS DTCs must be repaired before entering Output State Control (OSC).

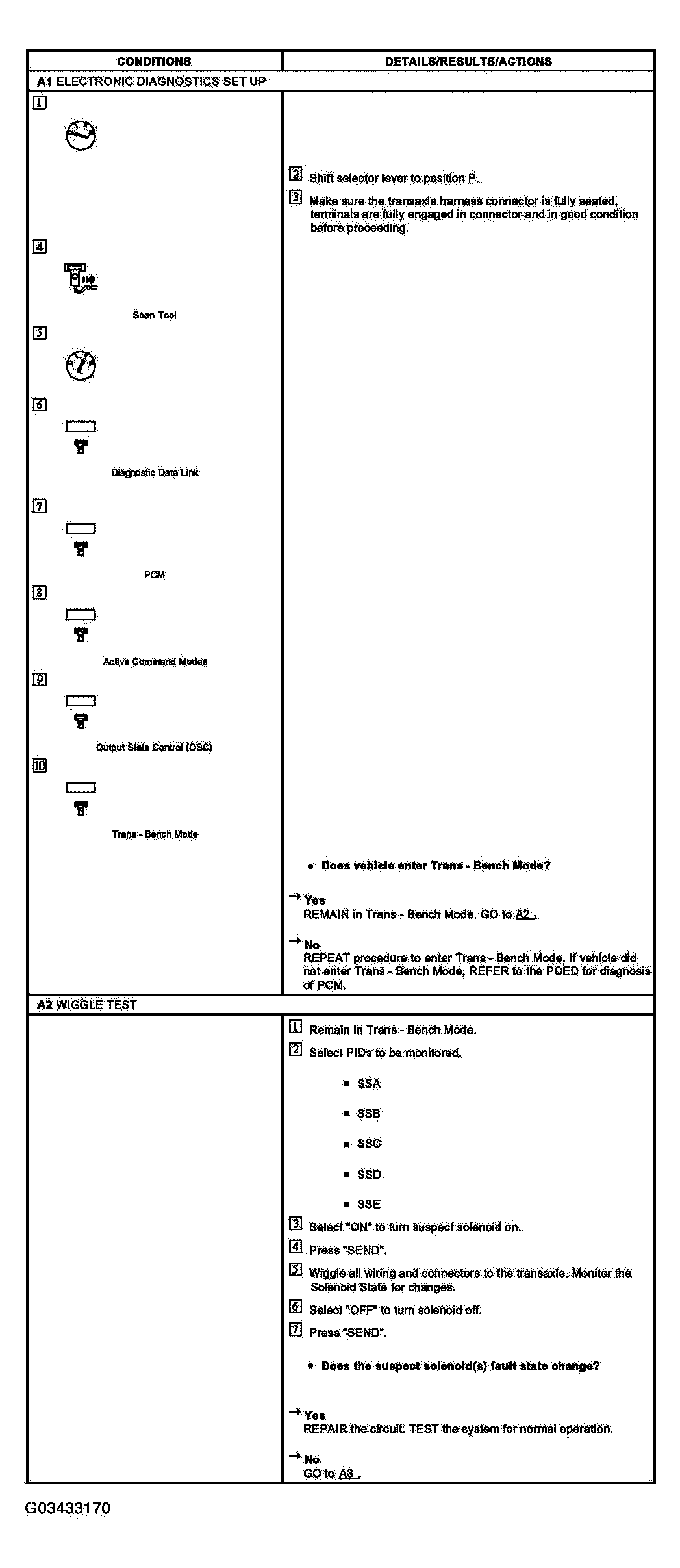

Fig 1: Pinpoint Test A - Shift And Torque Converter Clutch Solenoids (Only)(A1-A2)

Courtesy of FORD MOTOR CO.

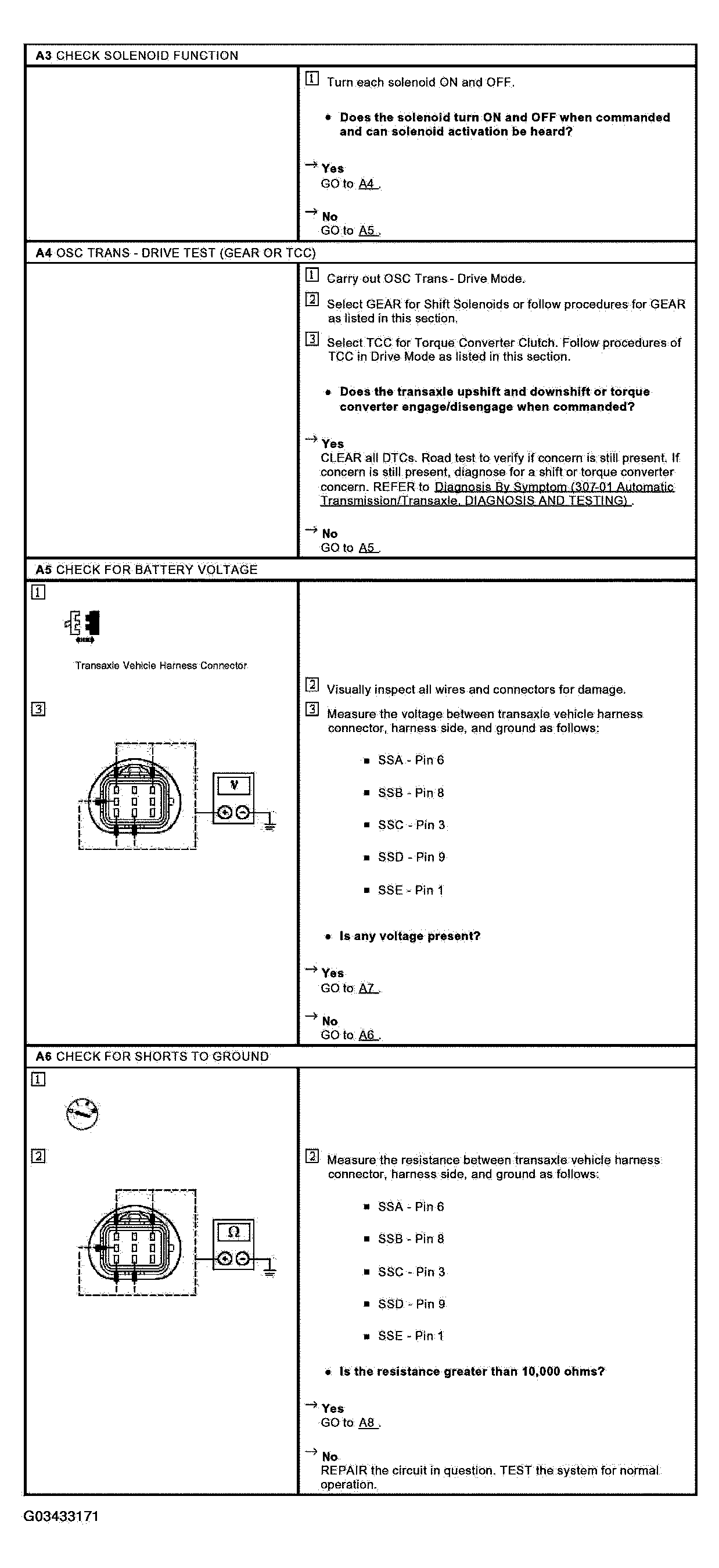

Fig 2: Pinpoint Test A - Shift And Torque Converter Clutch Solenoids (Only)(A3-A6)

Courtesy of FORD MOTOR CO.

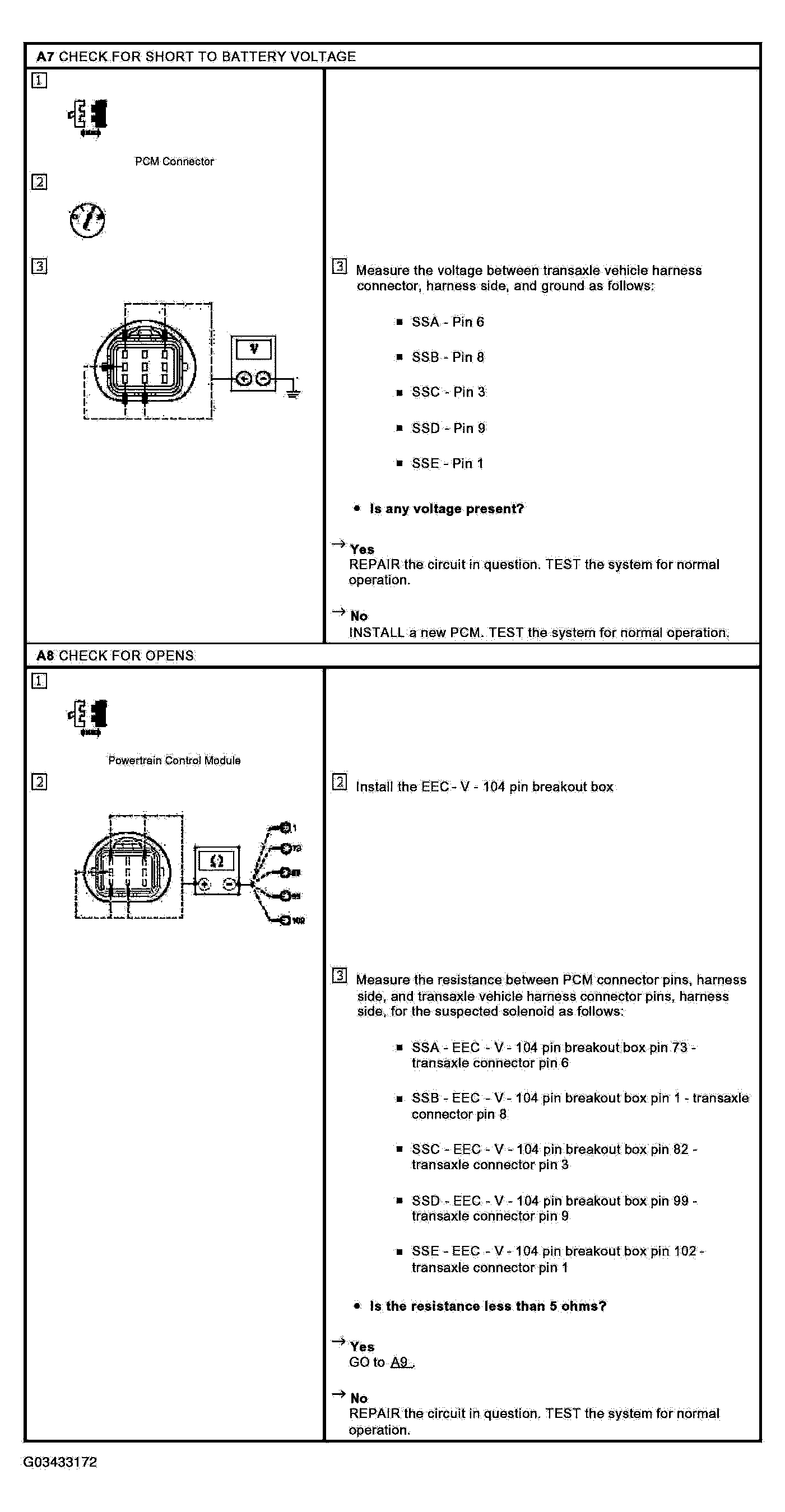

Fig 3: Pinpoint Test A - Shift And Torque Converter Clutch Solenoids (Only)(A7-A8)

Courtesy of FORD MOTOR CO.

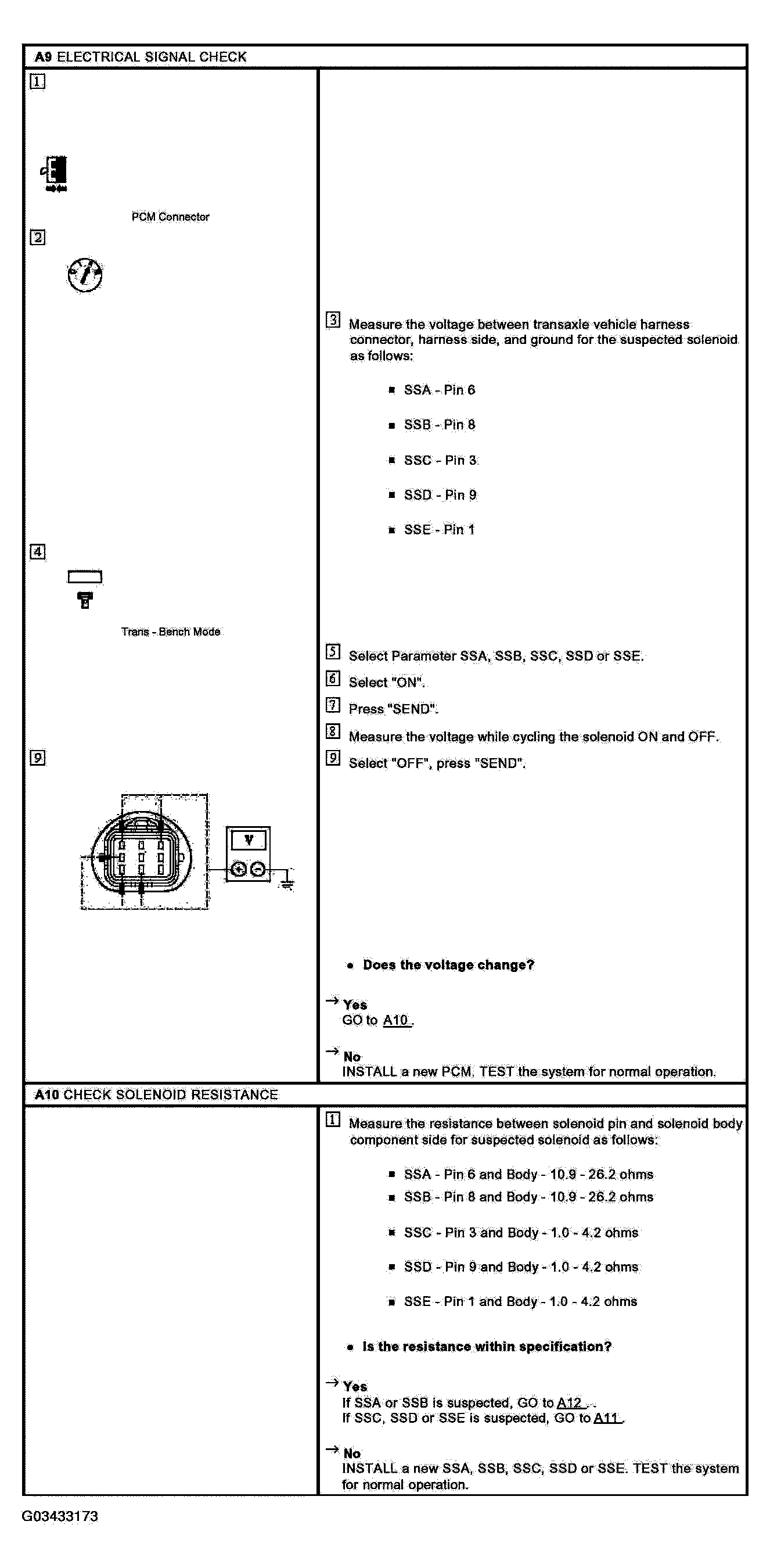

Fig 4: Pinpoint Test A - Shift And Torque Converter Clutch Solenoids (Only)(A9-A10)

Courtesy of FORD MOTOR CO.

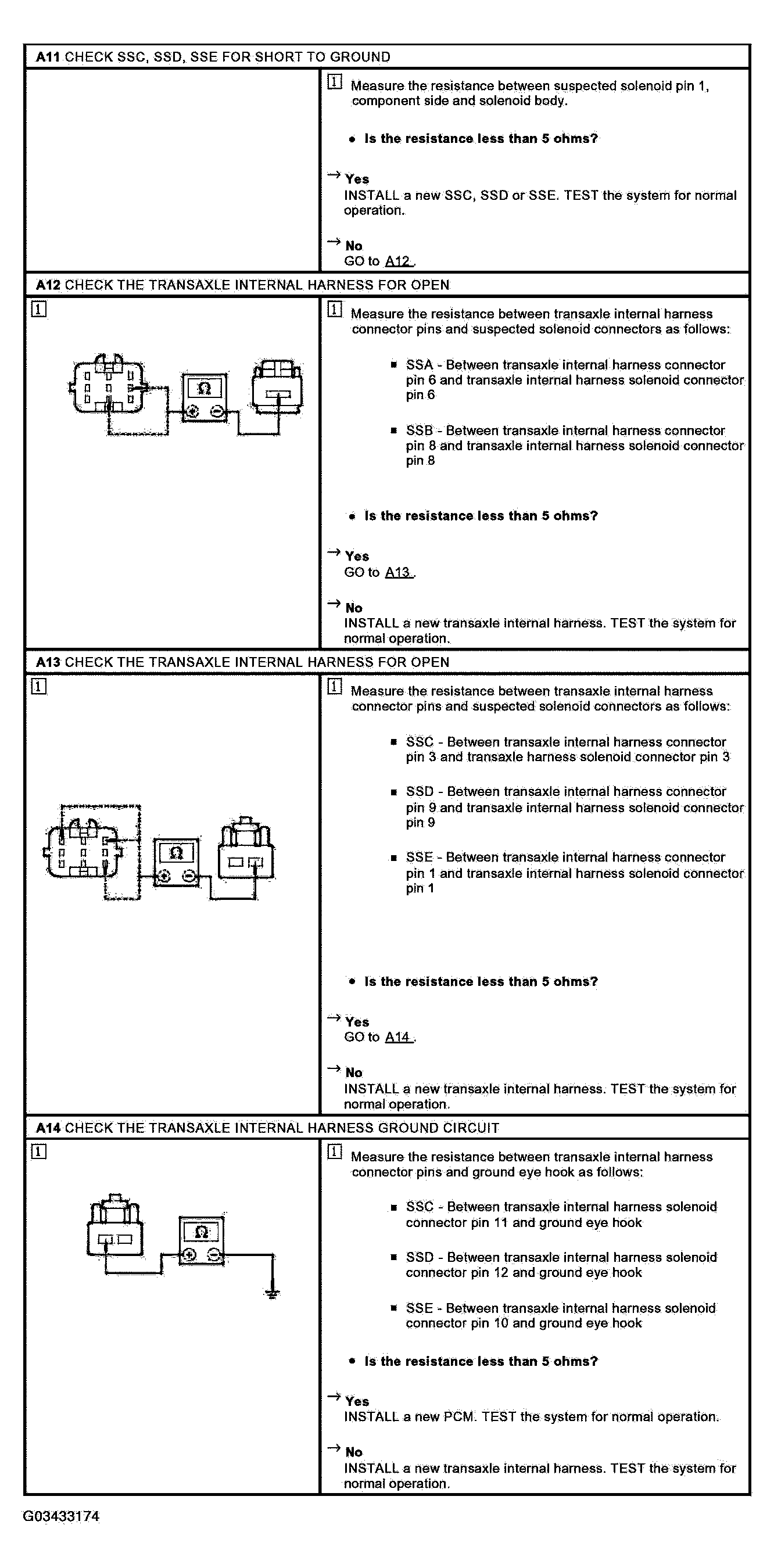

Fig 5: Pinpoint Test A - Shift And Torque Converter Clutch Solenoids (Only)(A11-A14)

Courtesy of FORD MOTOR CO.
