Tire Pressure Monitoring System (TPMS) Sensor: Notes

WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

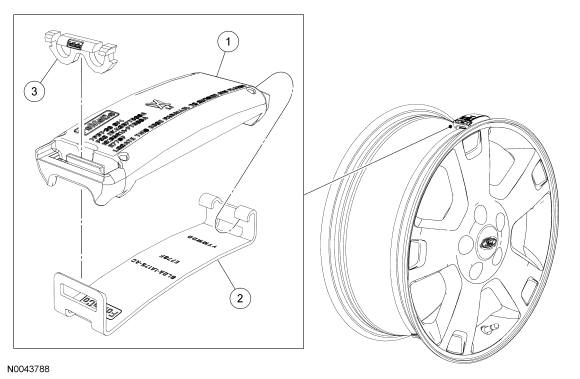

Fig 1: Exploded View Of Tire Pressure Monitoring System (TPMS) Sensor
GF0000767Courtesy of FORD MOTOR CO.
Item Part Number Description
1 1A150/1A189 Tire pressure sensor/sensor kit
2 1A175 Sensor cradle
3 14C202 Locking clip (also part of 1A189)
