Compass Zone Adjustment - Without Message Center

    NOTE: The compass zone setting is preset from the factory to Zone 8.

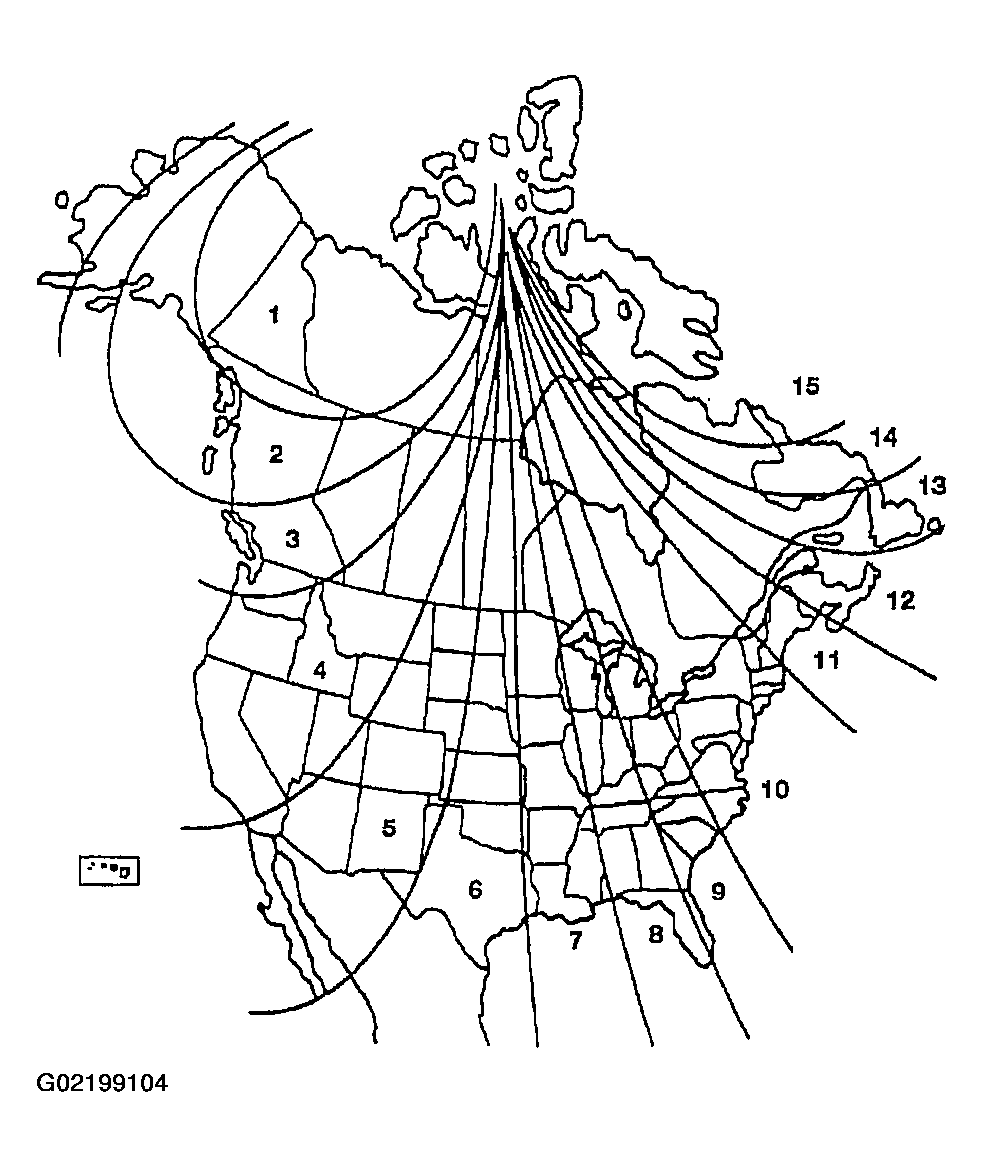

    Fig 1: Identifying Compass Zone Adjustment - Without Message Center
    G02199104Courtesy of FORD MOTOR CO.
  1. Determine which magnetic zone you are in for your geographic location.
  2. Turn the ignition key to the ON position.
  3. Locate the compass module at the base of the mirror. Press the button located on the compass sensor module gently until ZONE and the current zone setting (1-15) is displayed in the compass display and release the button.
    Fig 2: Locating Compass Module
    G02199105Courtesy of FORD MOTOR CO.
  4. Press the button repeatedly to cycle through the possible zone settings until the setting for your geographic location is displayed.
  5. Release the button to exit the zone setting mode. After approximately five seconds the display will report the direction and the zone will be set.
