Symptom Chart

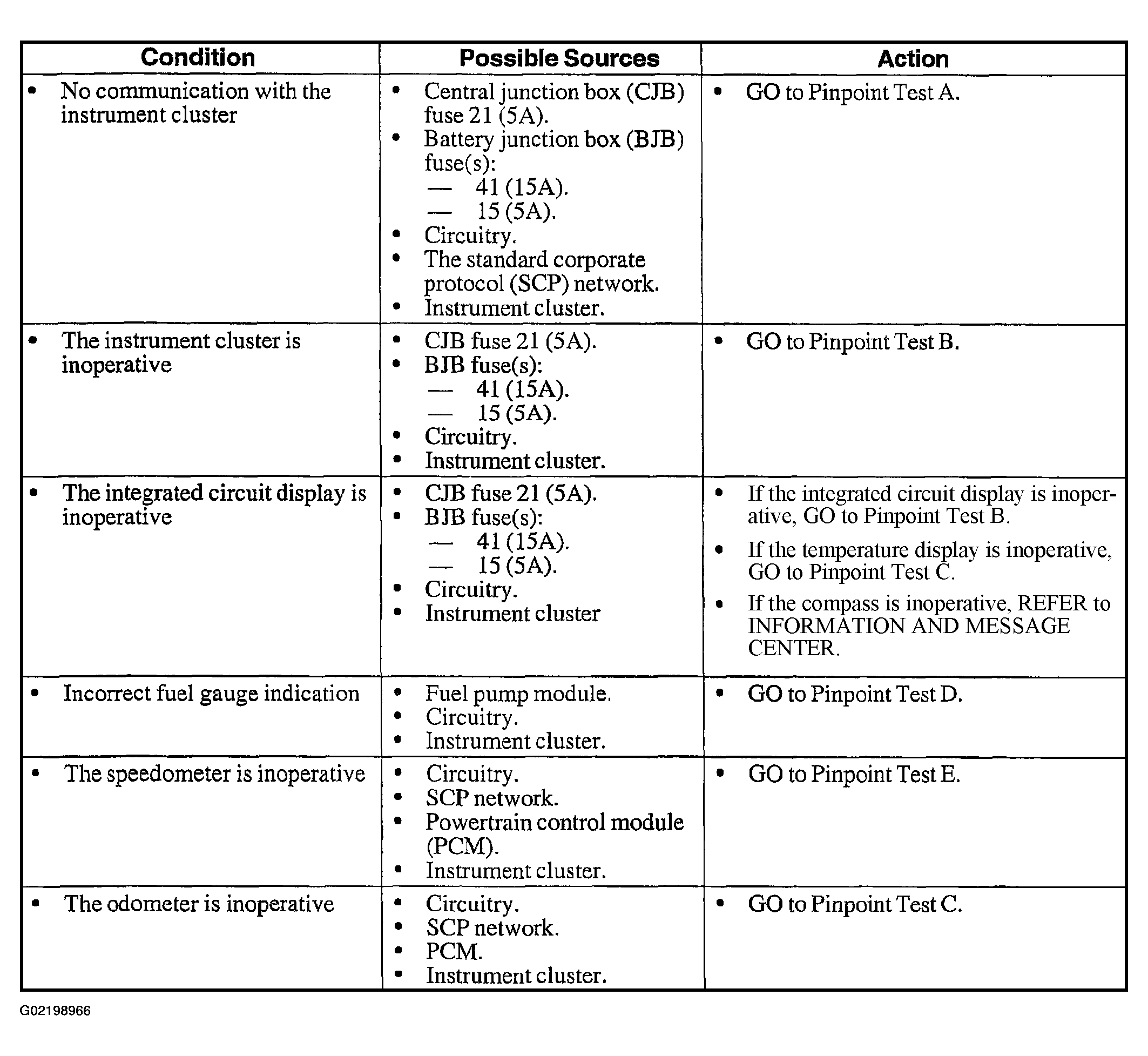

Fig 1: Symptom Chart (1 Of 4)
G02198966Courtesy of FORD MOTOR CO.

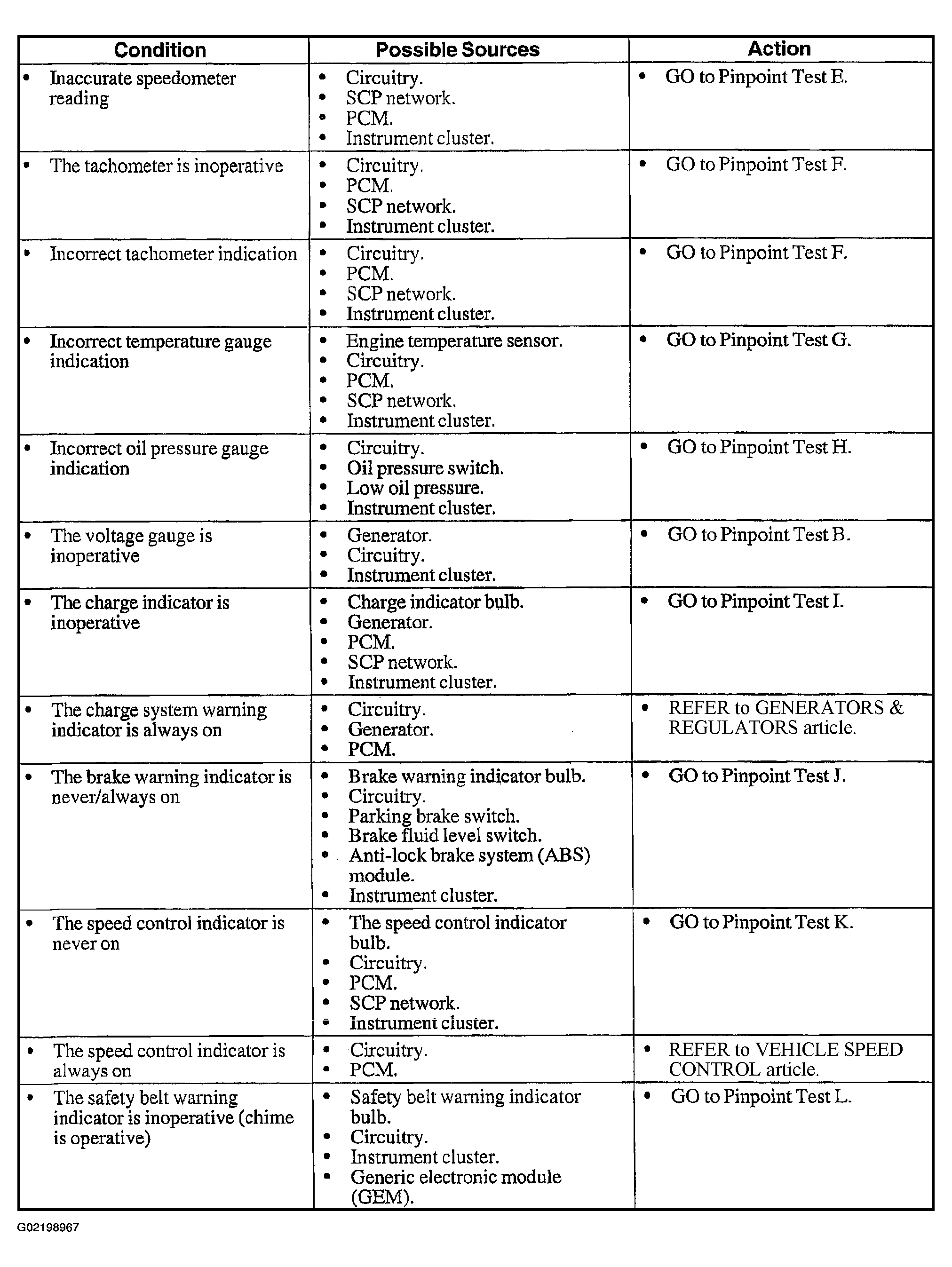

Fig 2: Symptom Chart (2 Of 4)
G02198967Courtesy of FORD MOTOR CO.

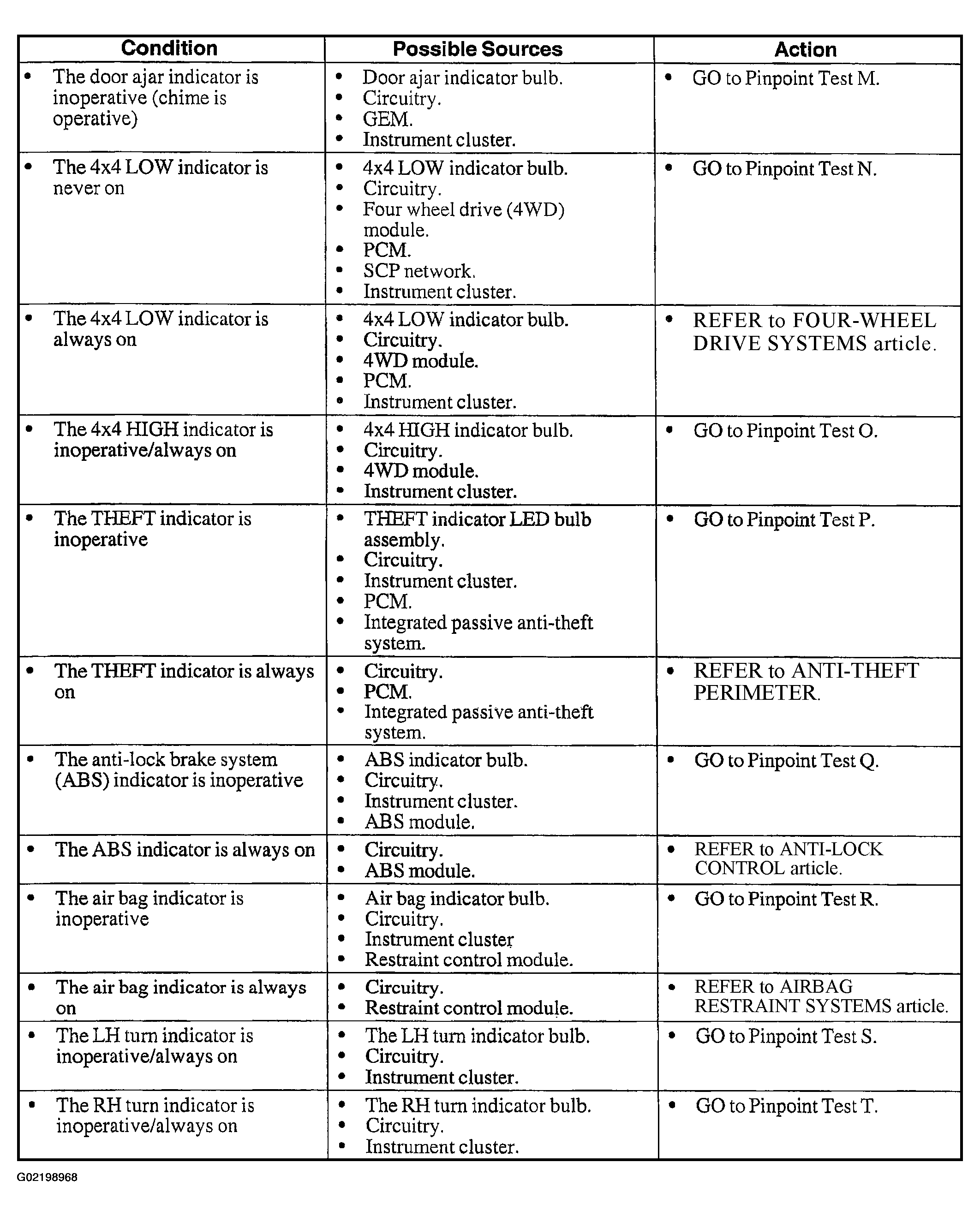

Fig 3: Symptom Chart (3 Of 4)
G02198968Courtesy of FORD MOTOR CO.

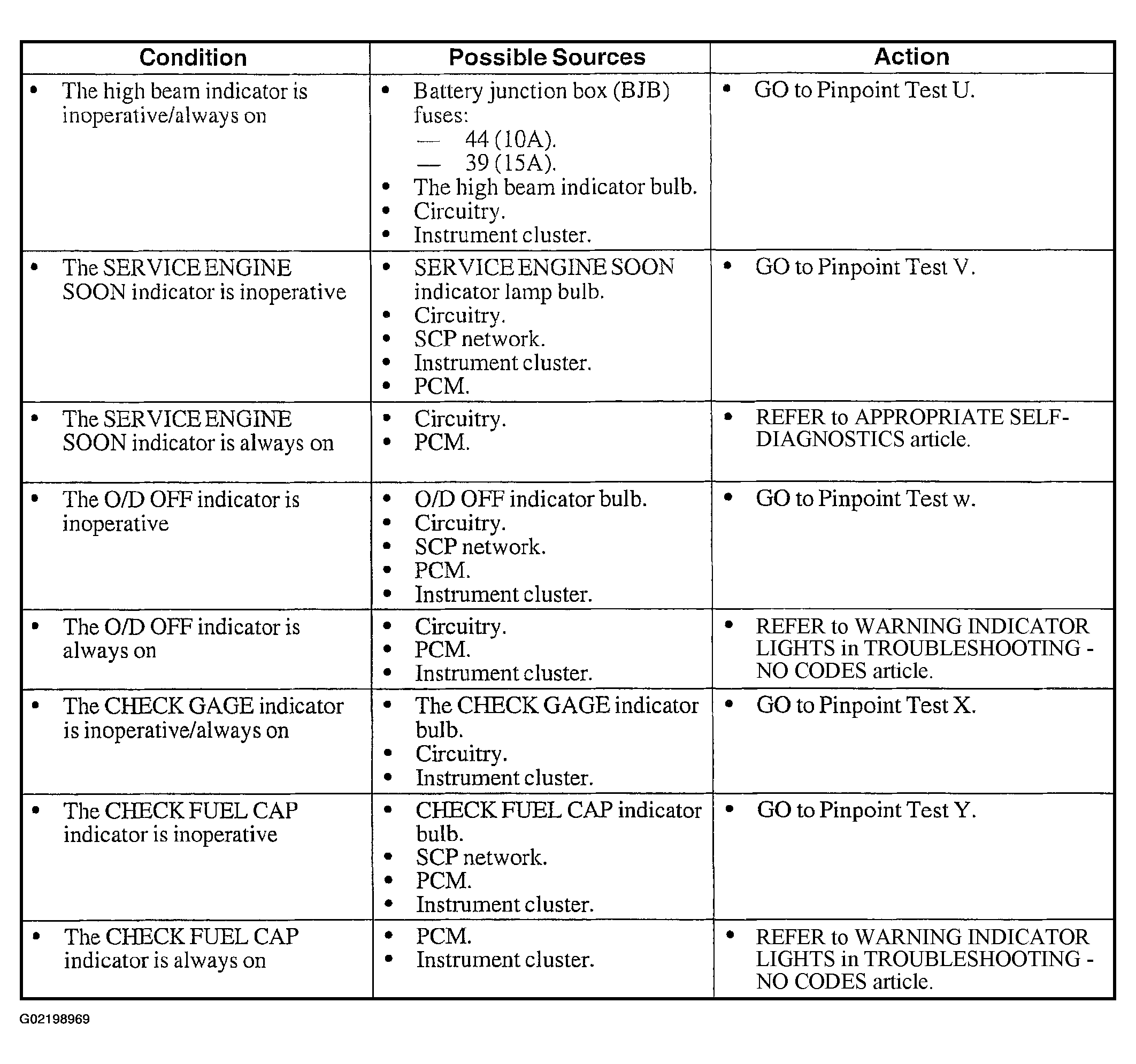

Fig 4: Symptom Chart (4 Of 4)
G02198969Courtesy of FORD MOTOR CO.
