Pinpoint Test B: The Instrument Cluster Illumination Is Inoperative

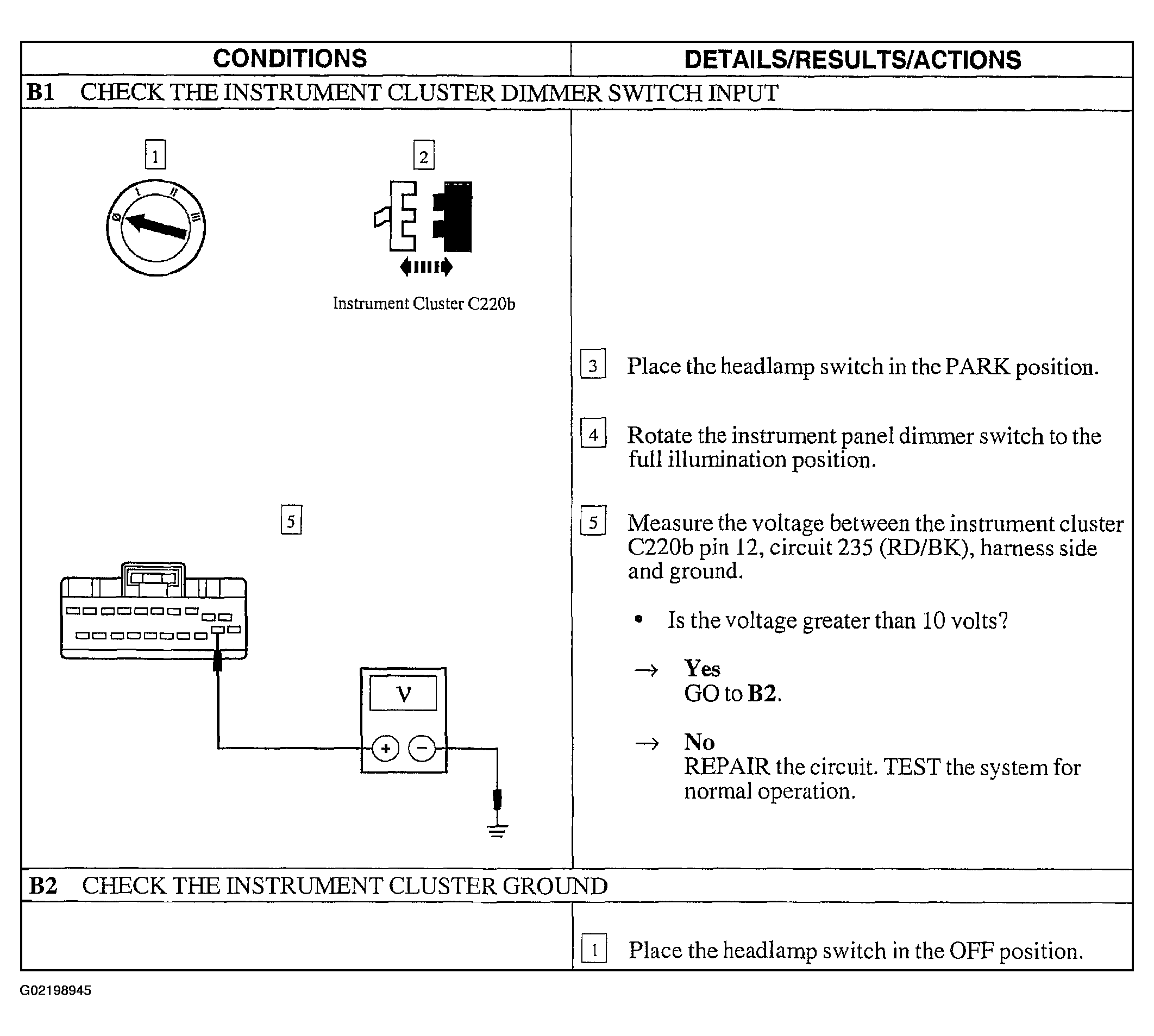

Fig 1: Pinpoint Test B: Instrument Cluster Illumination Is Inoperative (B1 & B2)
G02198945Courtesy of FORD MOTOR CO.

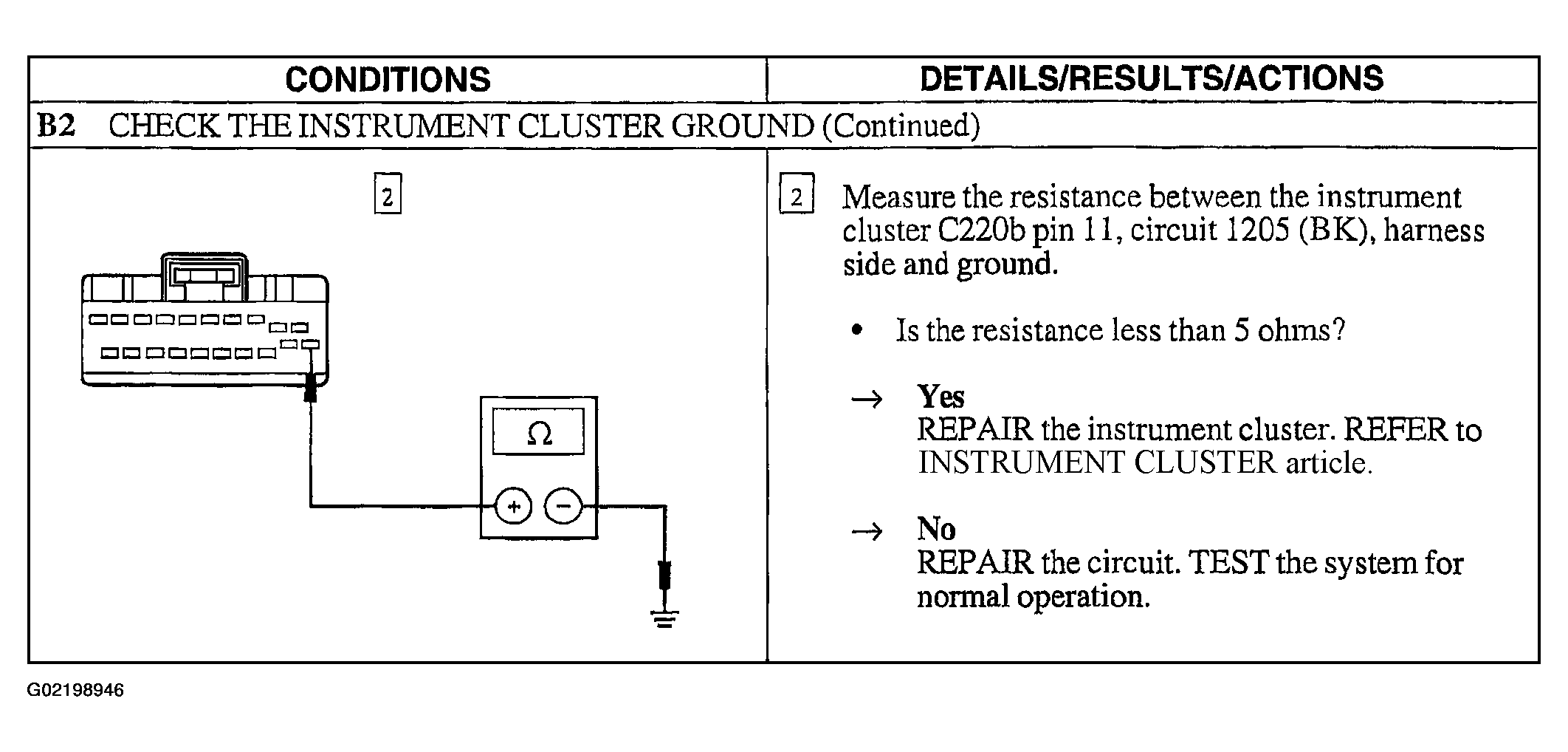

Fig 2: Pinpoint Test B: Instrument Cluster Illumination Is Inoperative (B2)
G02198946Courtesy of FORD MOTOR CO.
