Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable (14301). Refer to BATTERY, MOUNTING AND CABLES .
Remove the air cleaner housing.
Remove the brake master cylinder nuts.

Fig 1: Removing Brake Master Cylinder Nuts
Courtesy of FORD MOTOR CO.

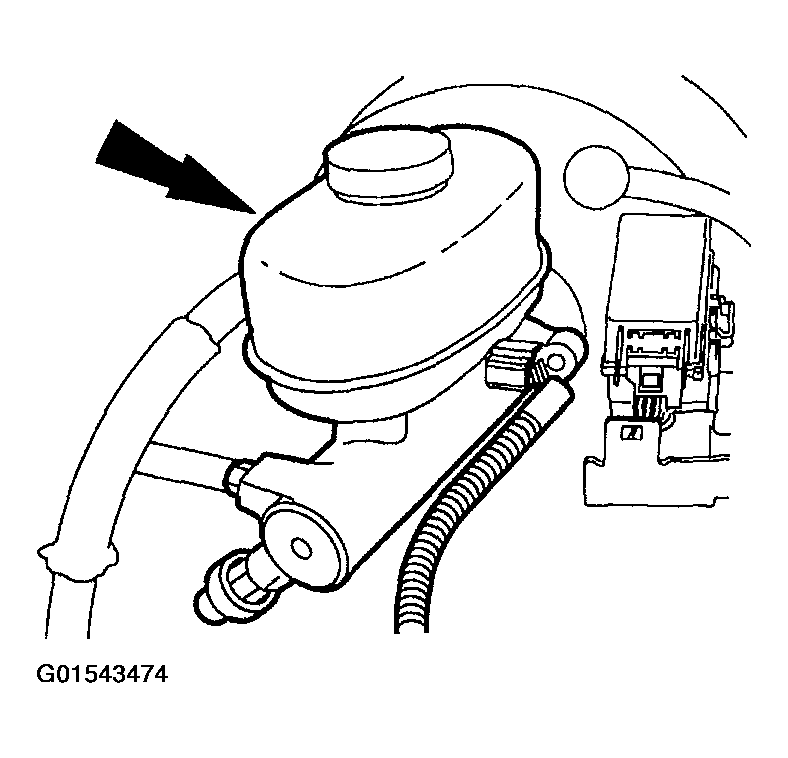

Position the brake master cylinder (2140) aside.

Fig 2: Positioning Brake Master Cylinder
Courtesy of FORD MOTOR CO.

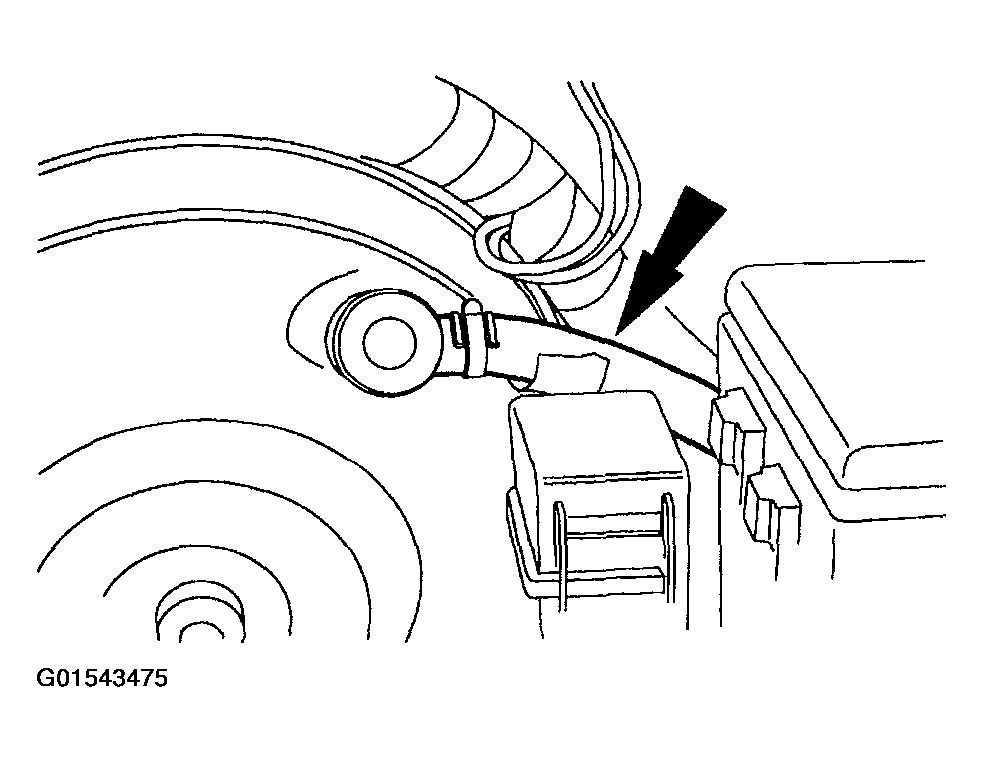

Disconnect the booster vacuum hose.

Fig 3: Disconnecting Booster Vacuum Hose
Courtesy of FORD MOTOR CO.
Disconnect the power distribution box auxiliary relay and set aside.

Fig 4: Disconnecting Power Distribution Box Auxiliary Relay
Courtesy of FORD MOTOR CO.
Remove the instrument panel steering column opening cover.

Fig 5: Removing Instrument Panel Steering Column Opening Cover
Courtesy of FORD MOTOR CO.

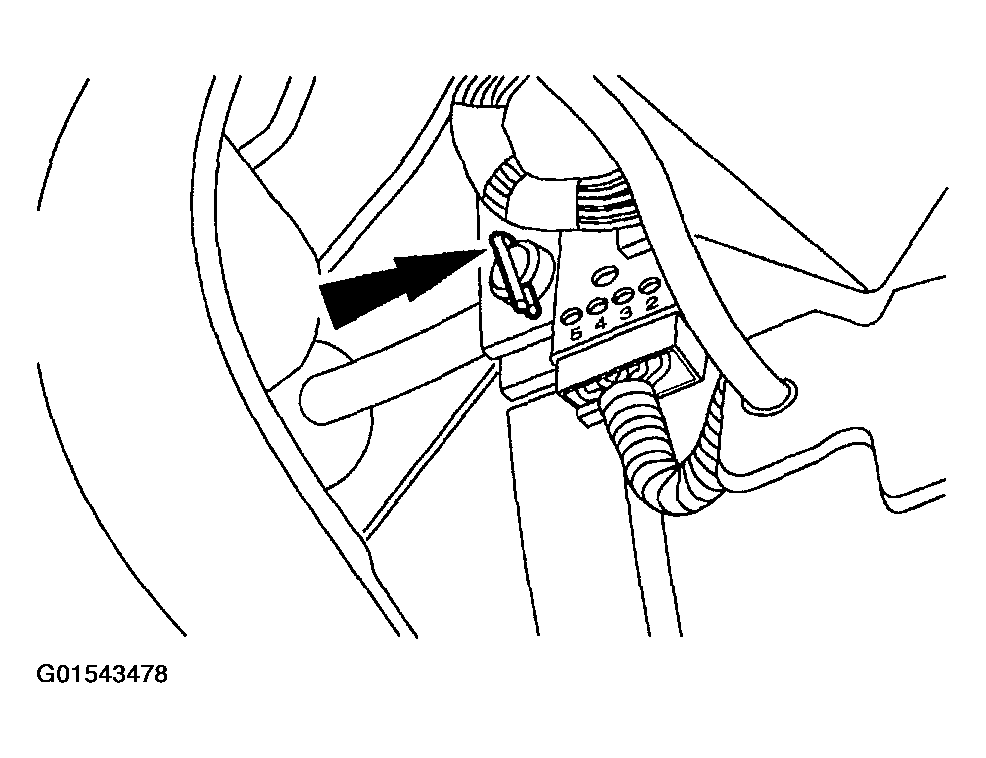

Remove the brake pedal position (BPP) switch self-locking pin.

Fig 6: Removing Brake Pedal Position (BPP) Switch Self-Locking Pin
Courtesy of FORD MOTOR CO.

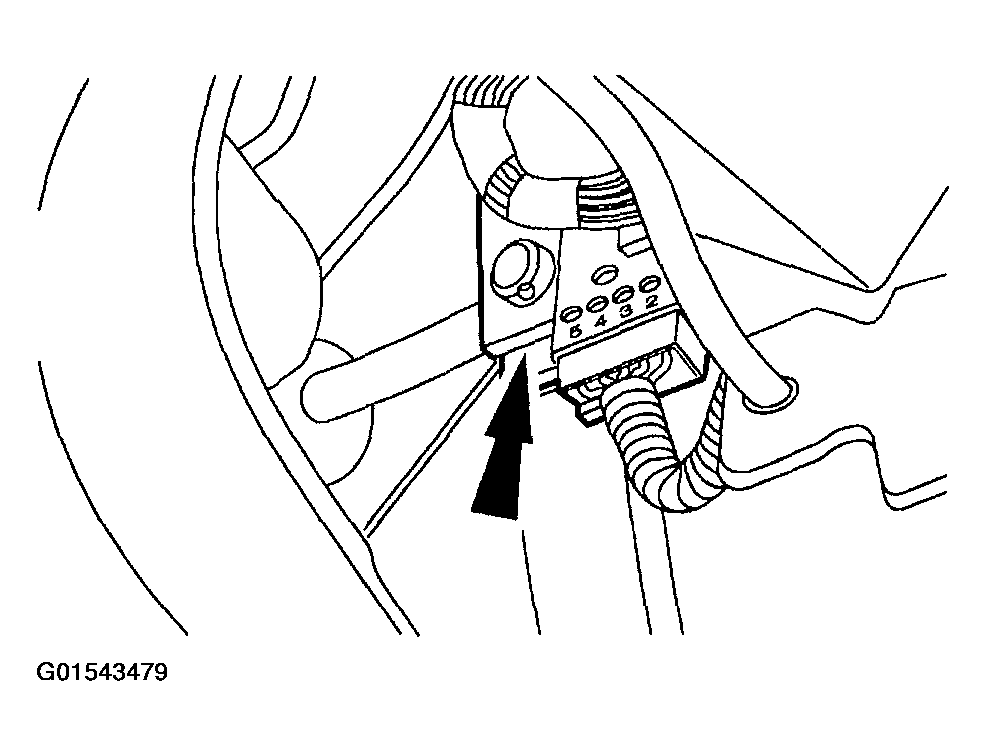

Remove the brake pedal position (BPP) switch (13480) and the brake booster push rod from the brake pedal pin.

Fig 7: Removing Brake Pedal Position (BPP) Switch And Brake Booster Push Rod From Brake Pedal Pin
Courtesy of FORD MOTOR CO.

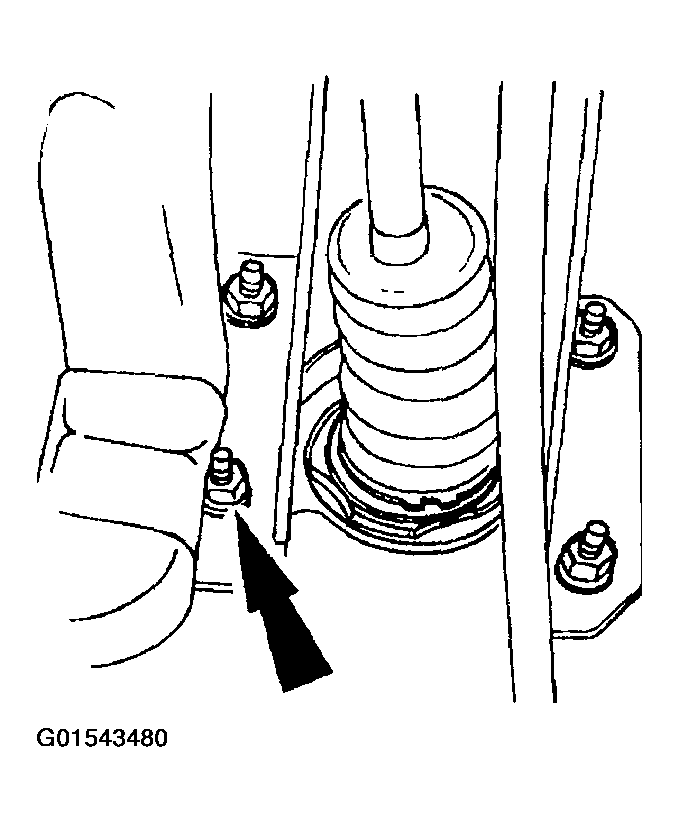

Remove the power brake booster nuts.

Fig 8: Removing Power Brake Booster Nuts
Courtesy of FORD MOTOR CO.
Remove the power brake booster (2005).

Fig 9: Removing Power Brake Booster
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

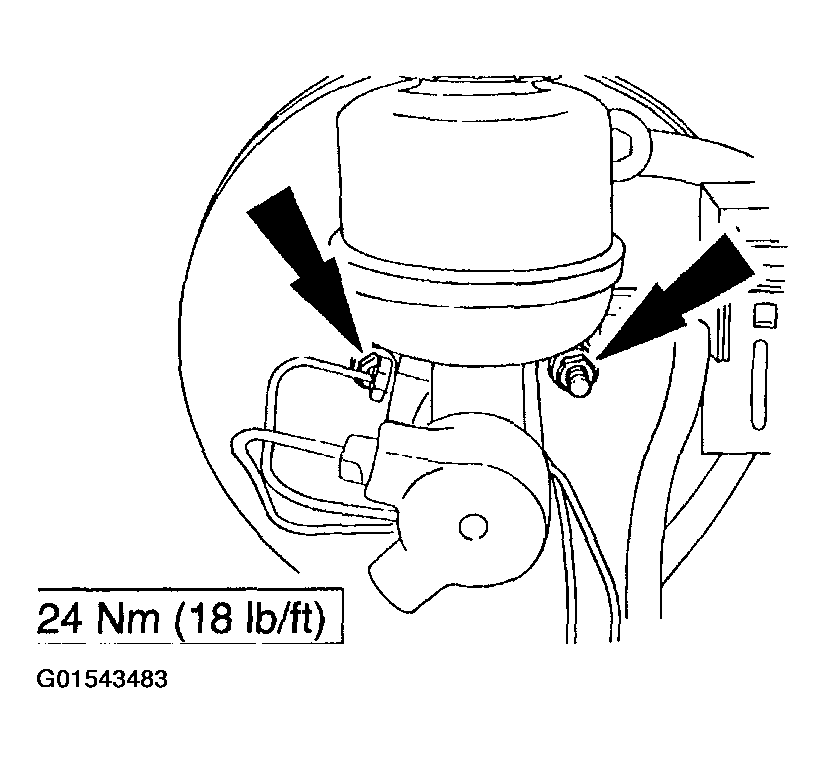

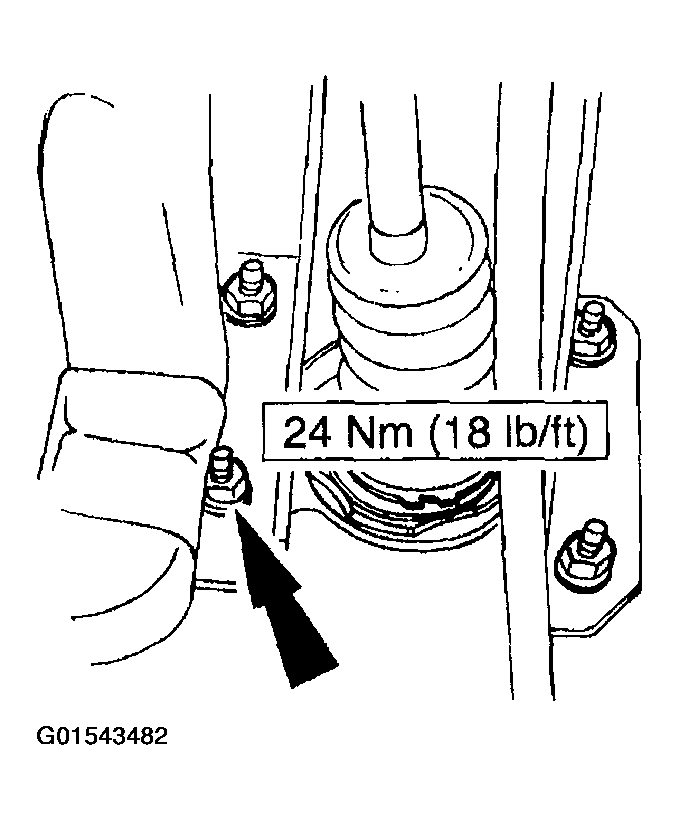

Fig 10: Installing Brake Booster Nuts
Courtesy of FORD MOTOR CO.

Fig 11: Installing Power Brake Booster
Courtesy of FORD MOTOR CO.
