Pinpoint Test F: The Outside Air Temperature Is Inaccurate/Inoperative

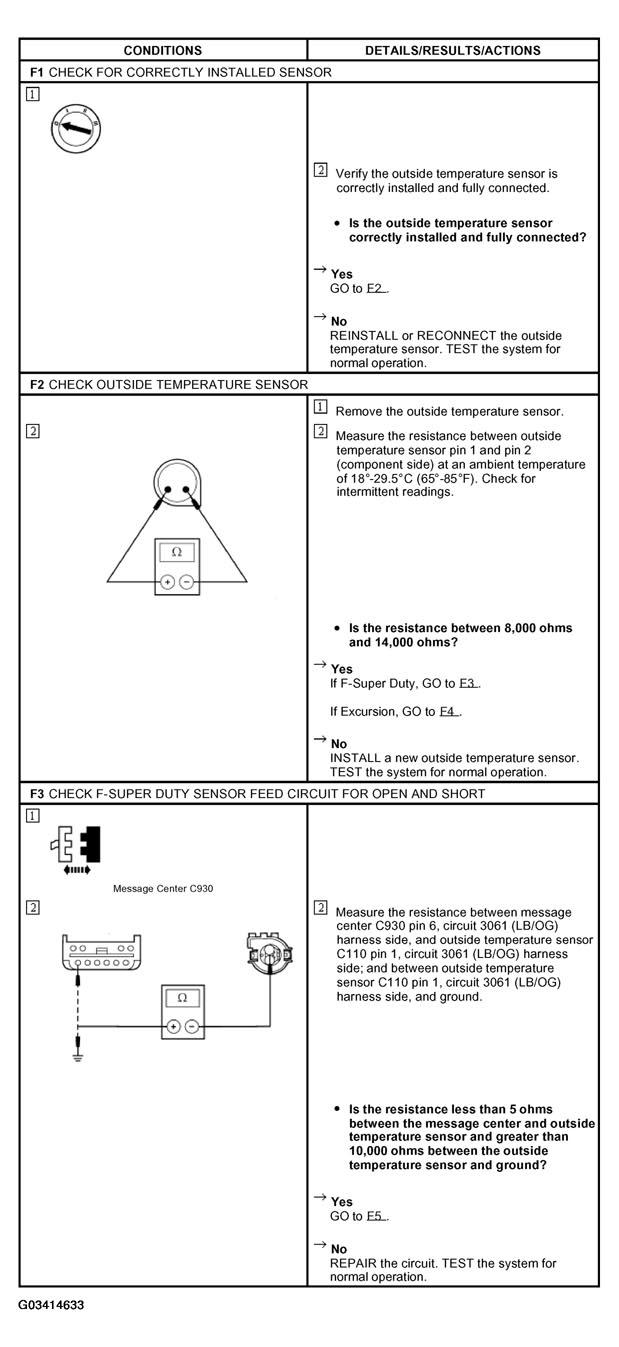

Fig 1: Pinpoint Test F: Outside Air Temperature Is Inaccurate/Inoperative (F1-F3)

Courtesy of FORD MOTOR CO.

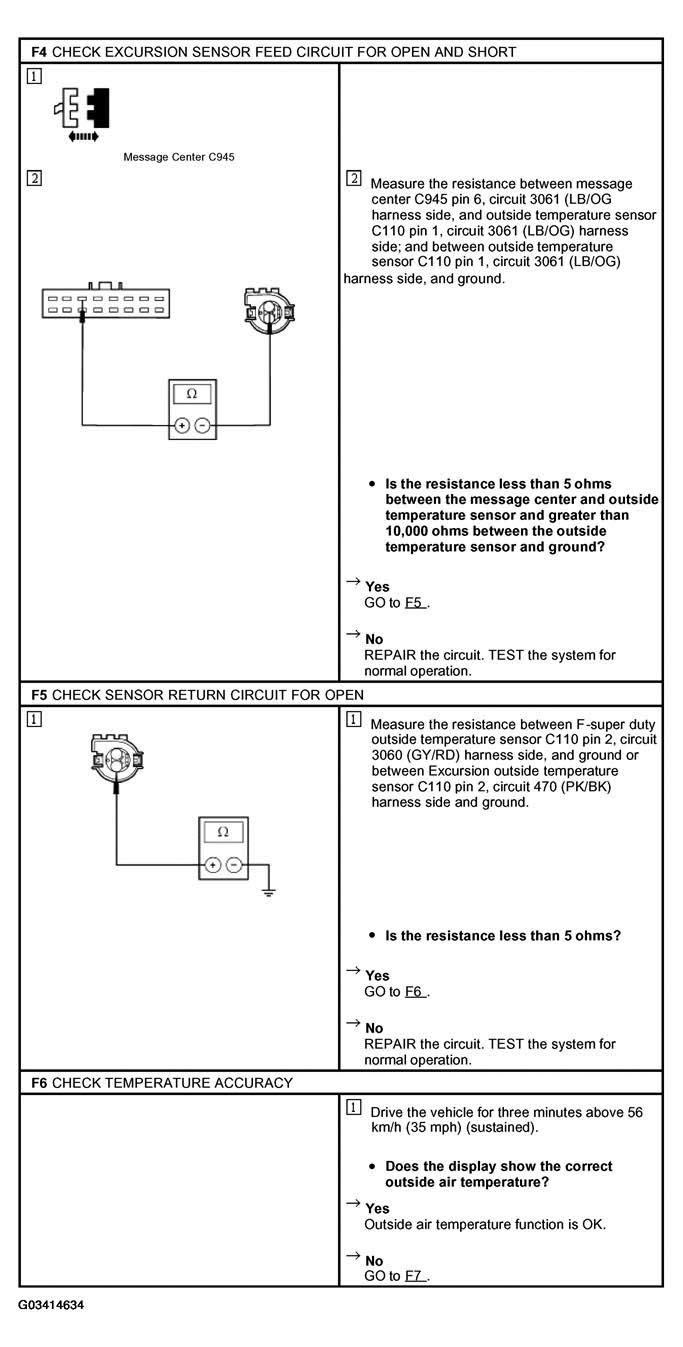

Fig 2: Pinpoint Test F: Outside Air Temperature Is Inaccurate/Inoperative (F4-F6)

Courtesy of FORD MOTOR CO.

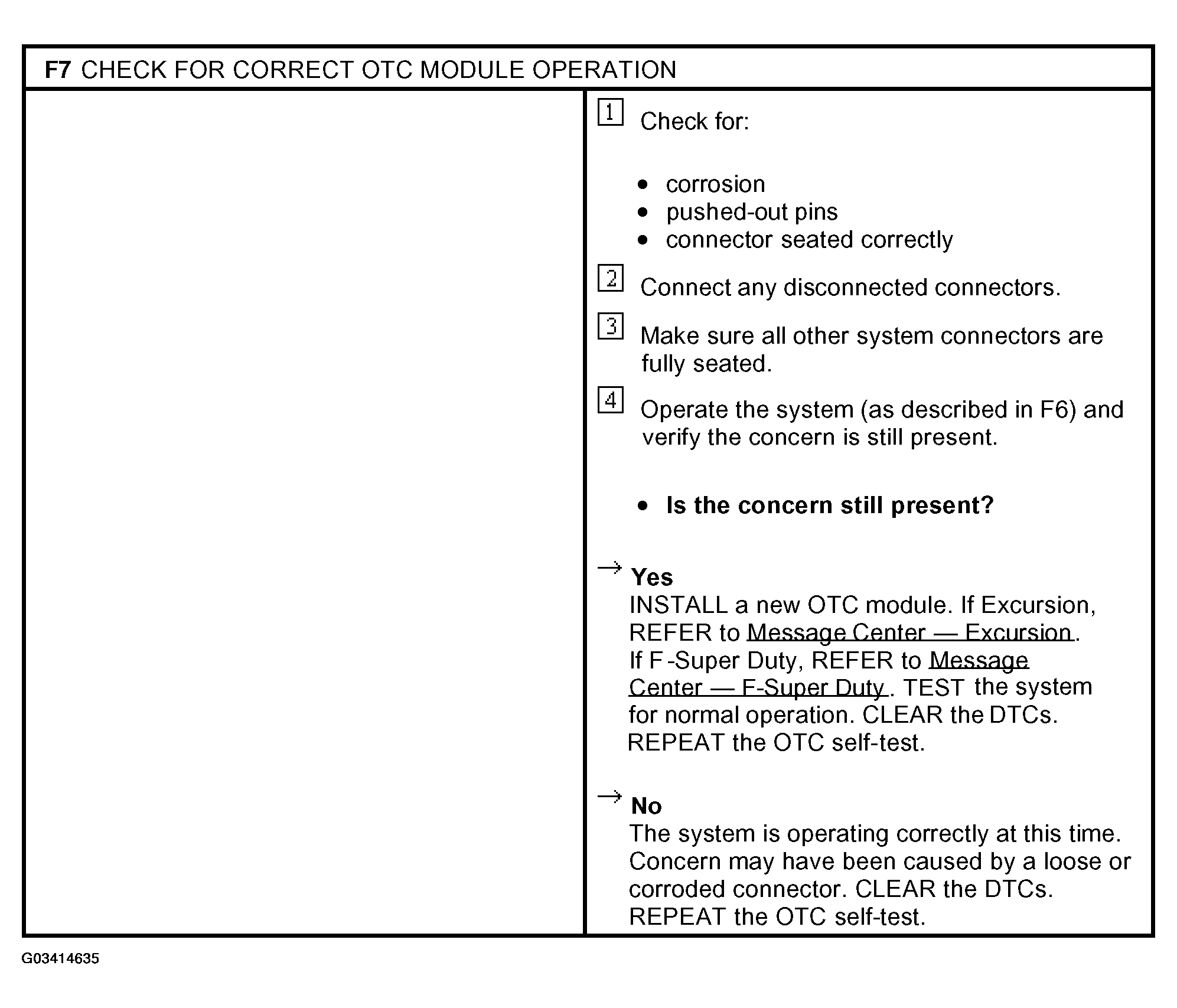

Fig 3: Pinpoint Test F: Outside Air Temperature Is Inaccurate/Inoperative (F7)

Courtesy of FORD MOTOR CO.
