Pinpoint Test B: No Communication With The Message Center - F Series Super Duty

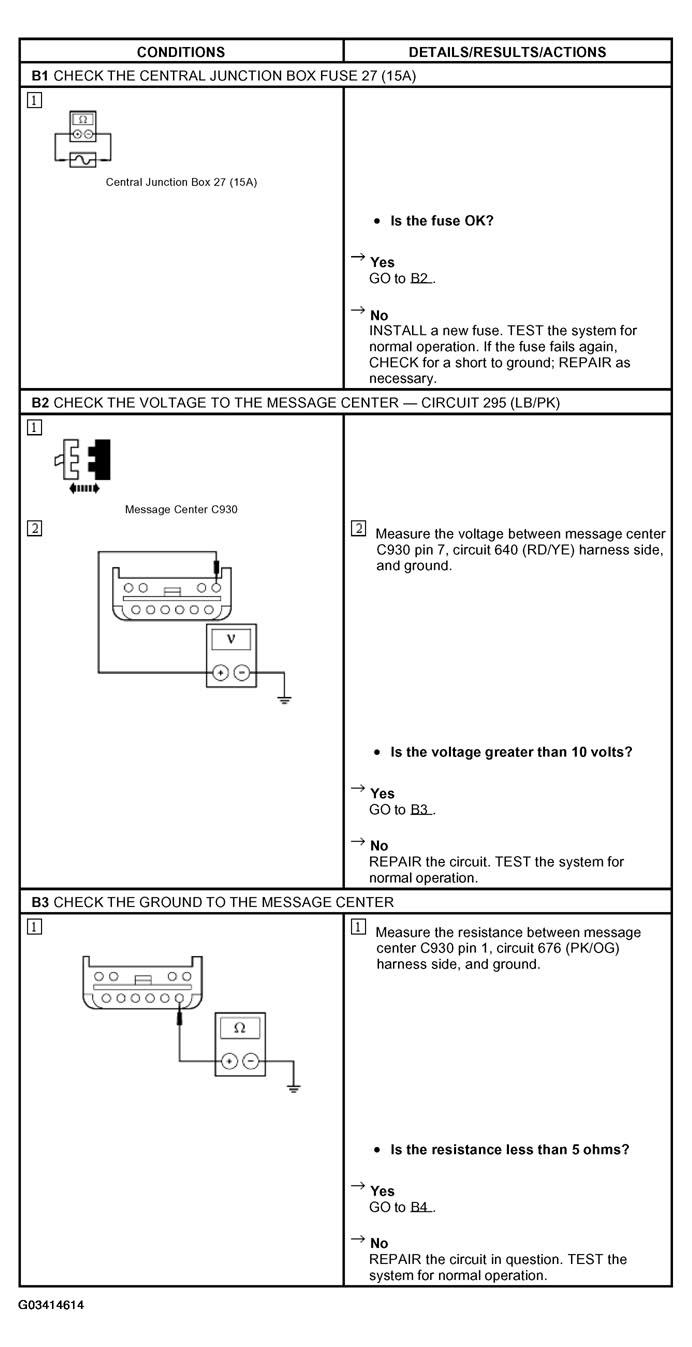

Fig 1: Pinpoint Test B: No Communication With Message Center - F Series Super Duty (B1-B3)
G03414614Courtesy of FORD MOTOR CO.

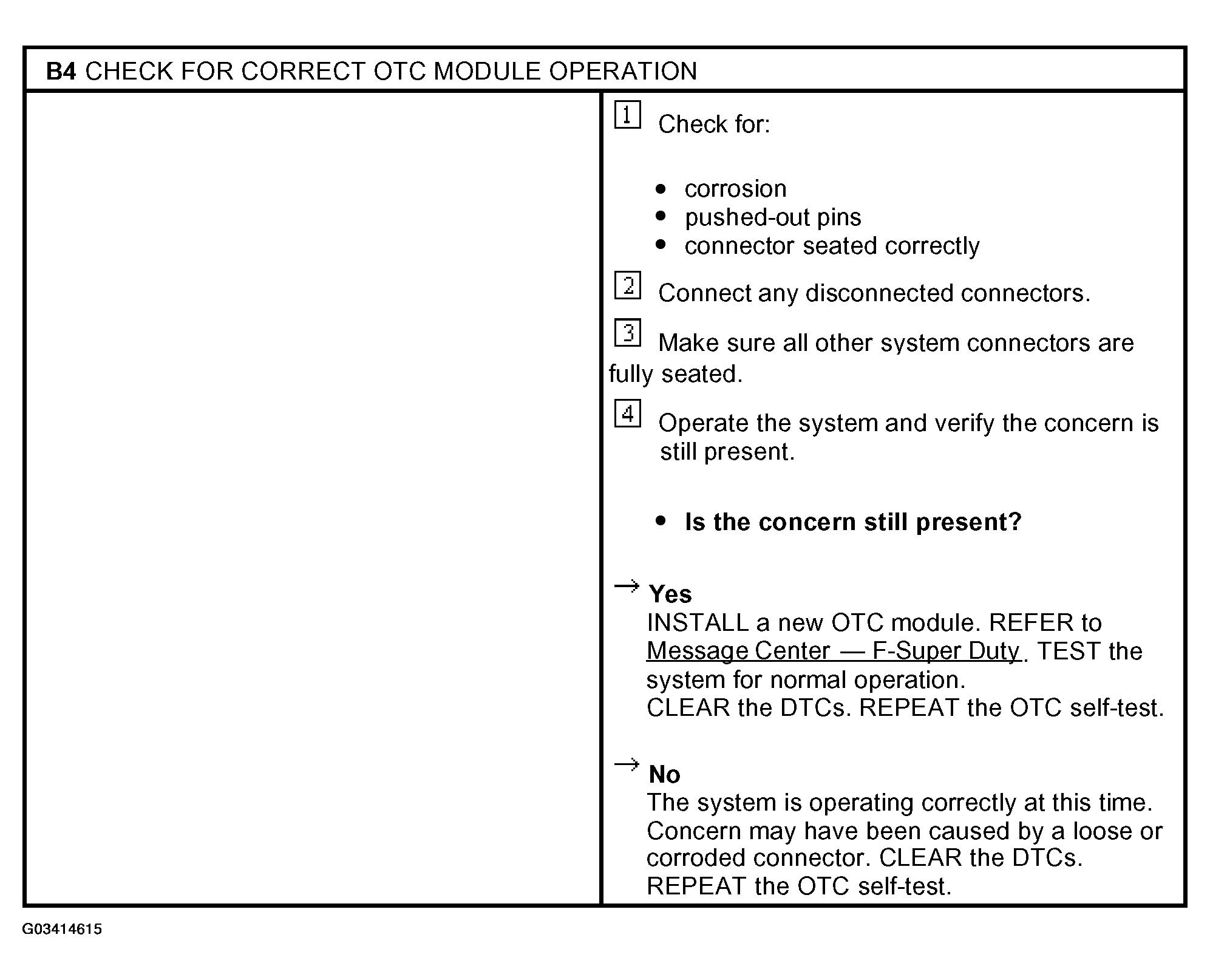

Fig 2: Pinpoint Test B: No Communication With Message Center - F Series Super Duty (B4)
G03414615Courtesy of FORD MOTOR CO.
