Pinpoint Test A: The Compass Is Inaccurate

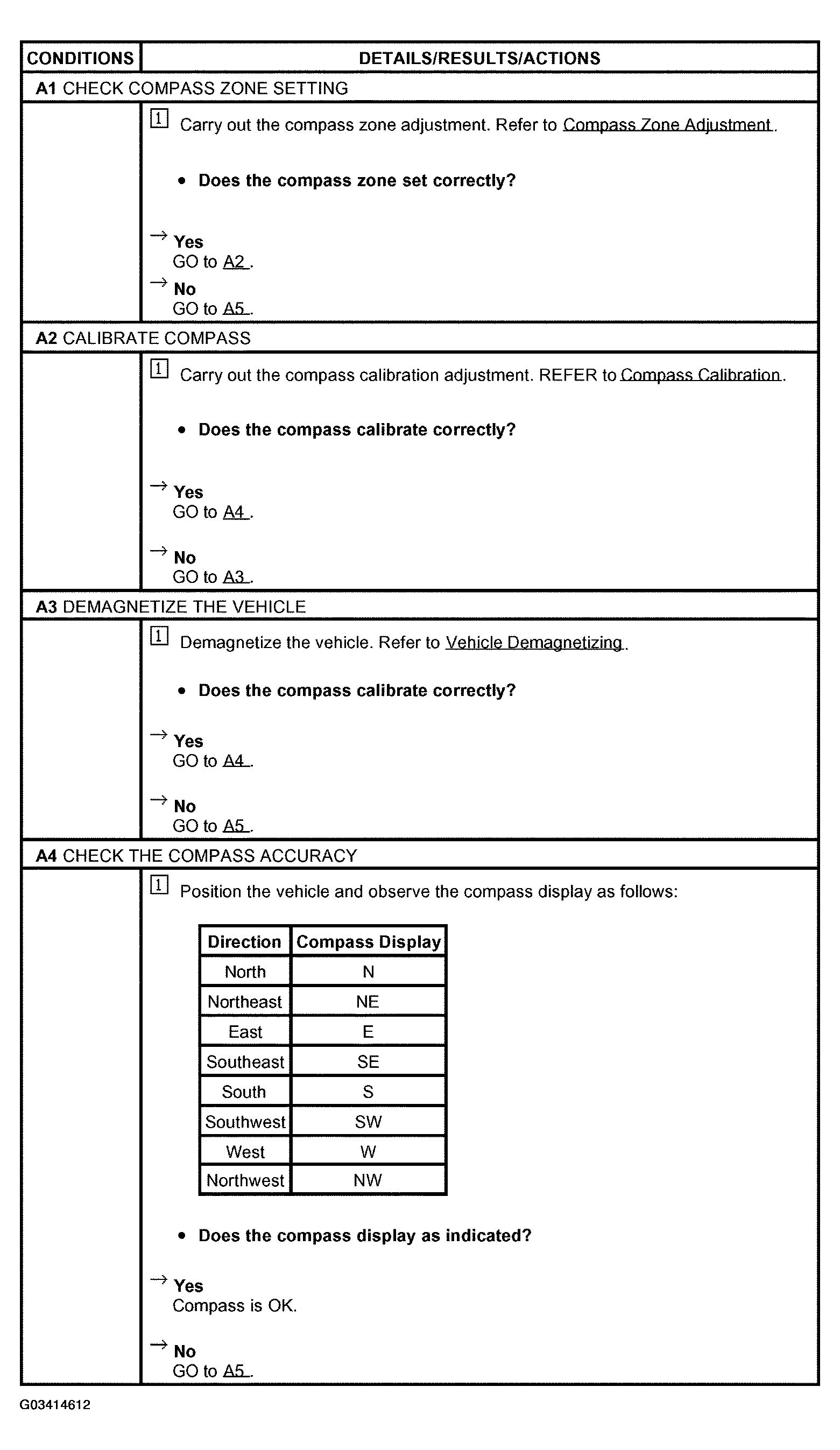

Fig 1: Pinpoint Test A: Compass Is Inaccurate (A1-A4)
G03414612Courtesy of FORD MOTOR CO.

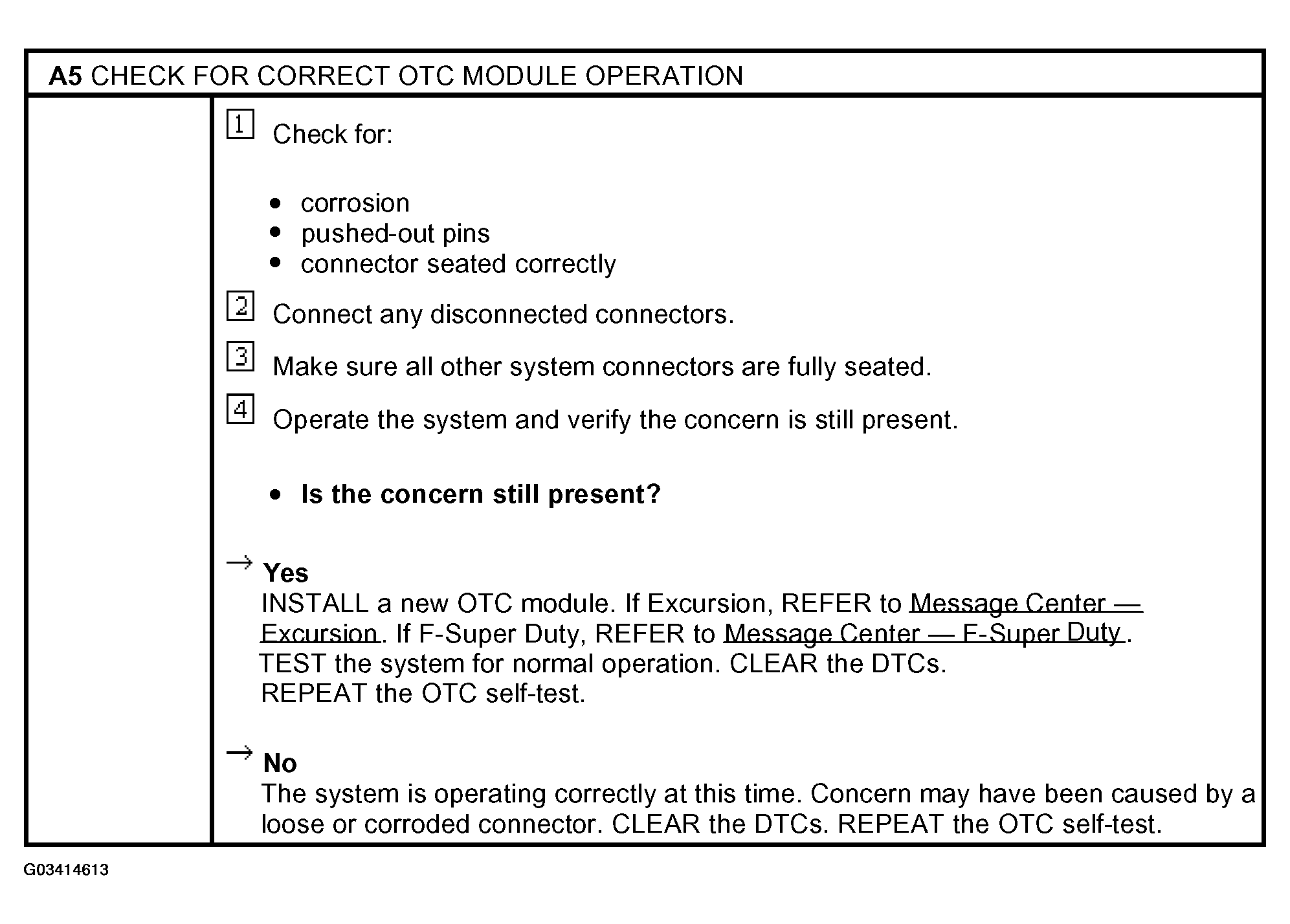

Fig 2: Pinpoint Test A: Compass Is Inaccurate (A5)
G03414613Courtesy of FORD MOTOR CO.
