Bearings, Cups and Seals: Installation

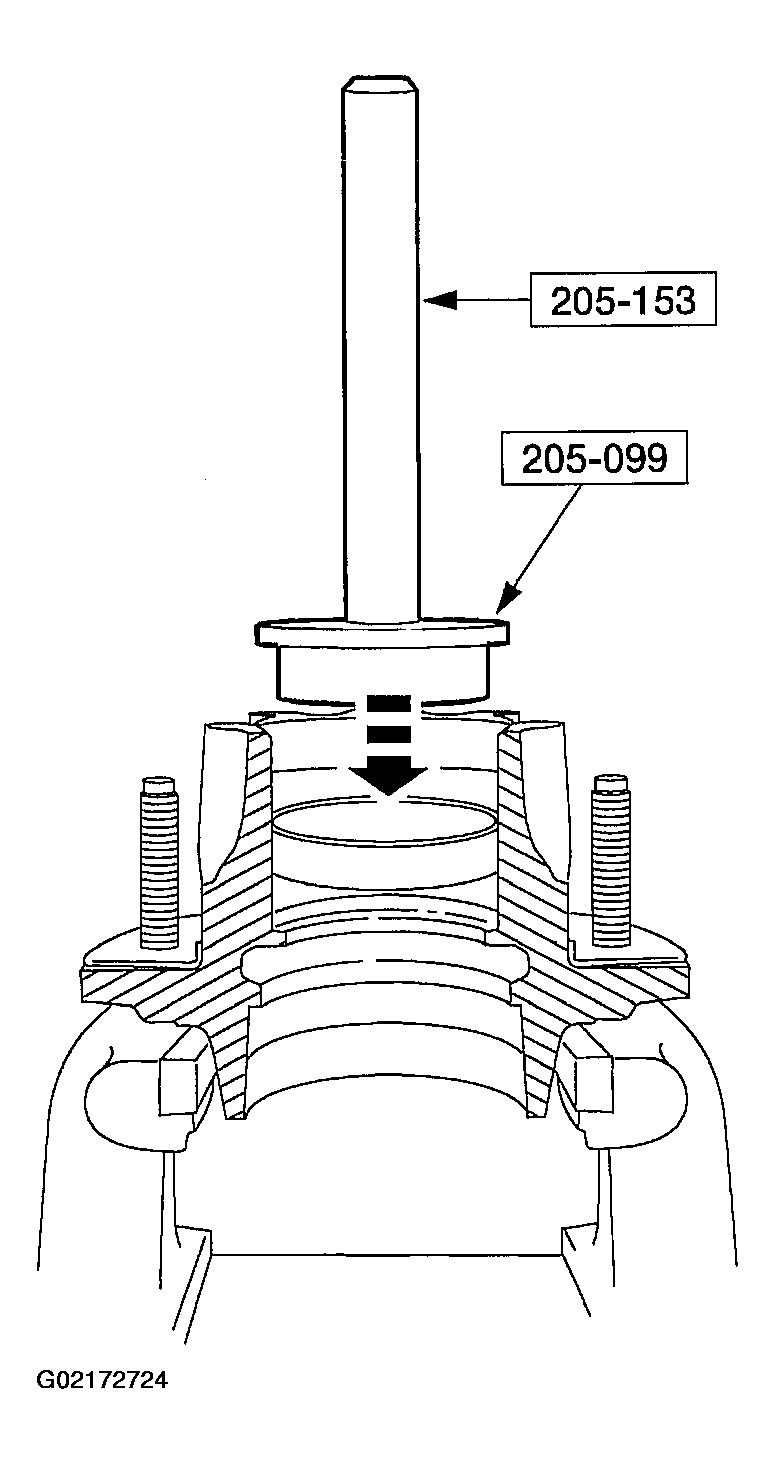

With the hub facing upward, position the outer bearing cup in the hub bore and place the special tools on the bearing cup.

Fig 1: Positioning Outer Bearing Cup In Hub Bore
Courtesy of FORD MOTOR CO.

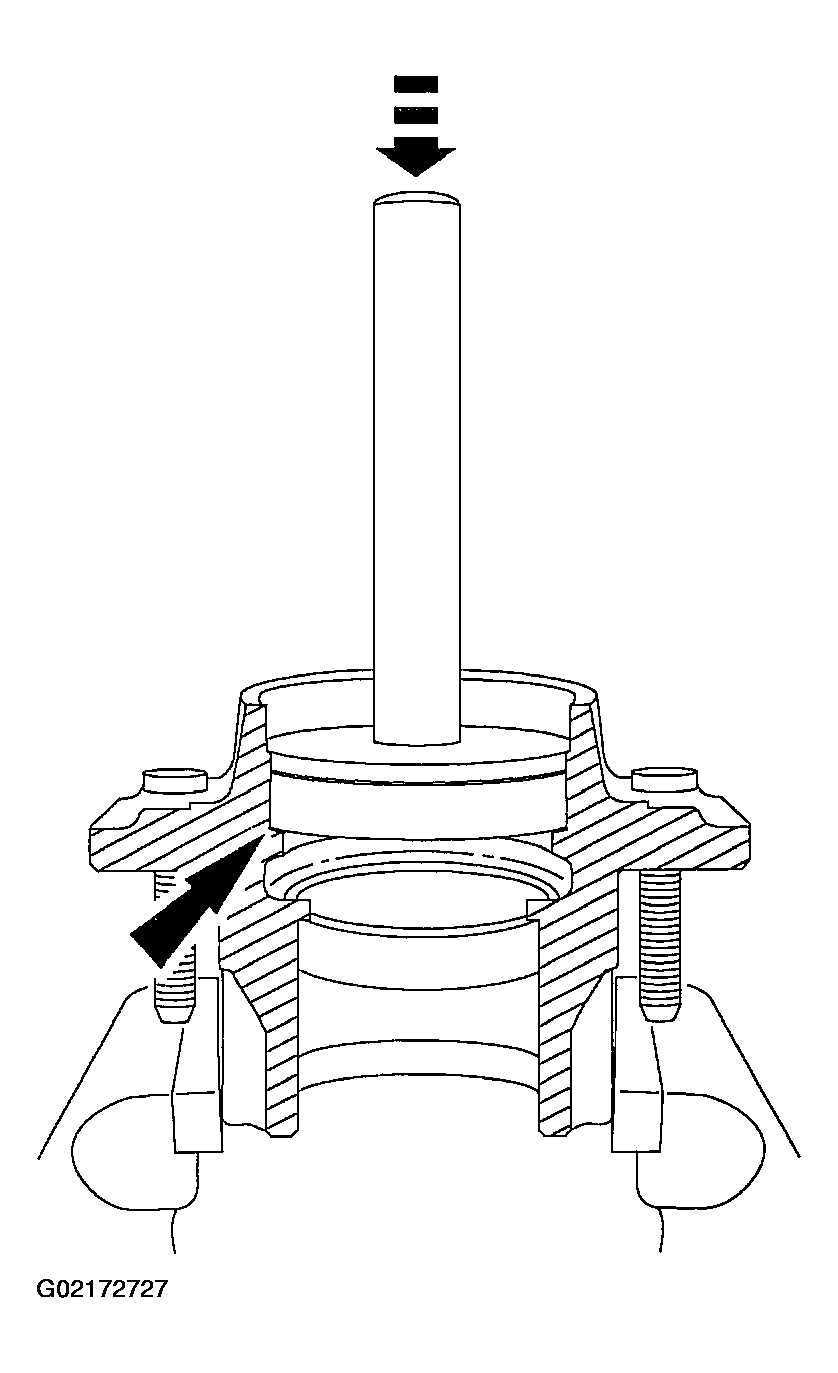

Drive the outer bearing cup into the fully seated position.

Fig 2: Installing Outer Bearing Cup Into Fully Seated Position
Courtesy of FORD MOTOR CO.

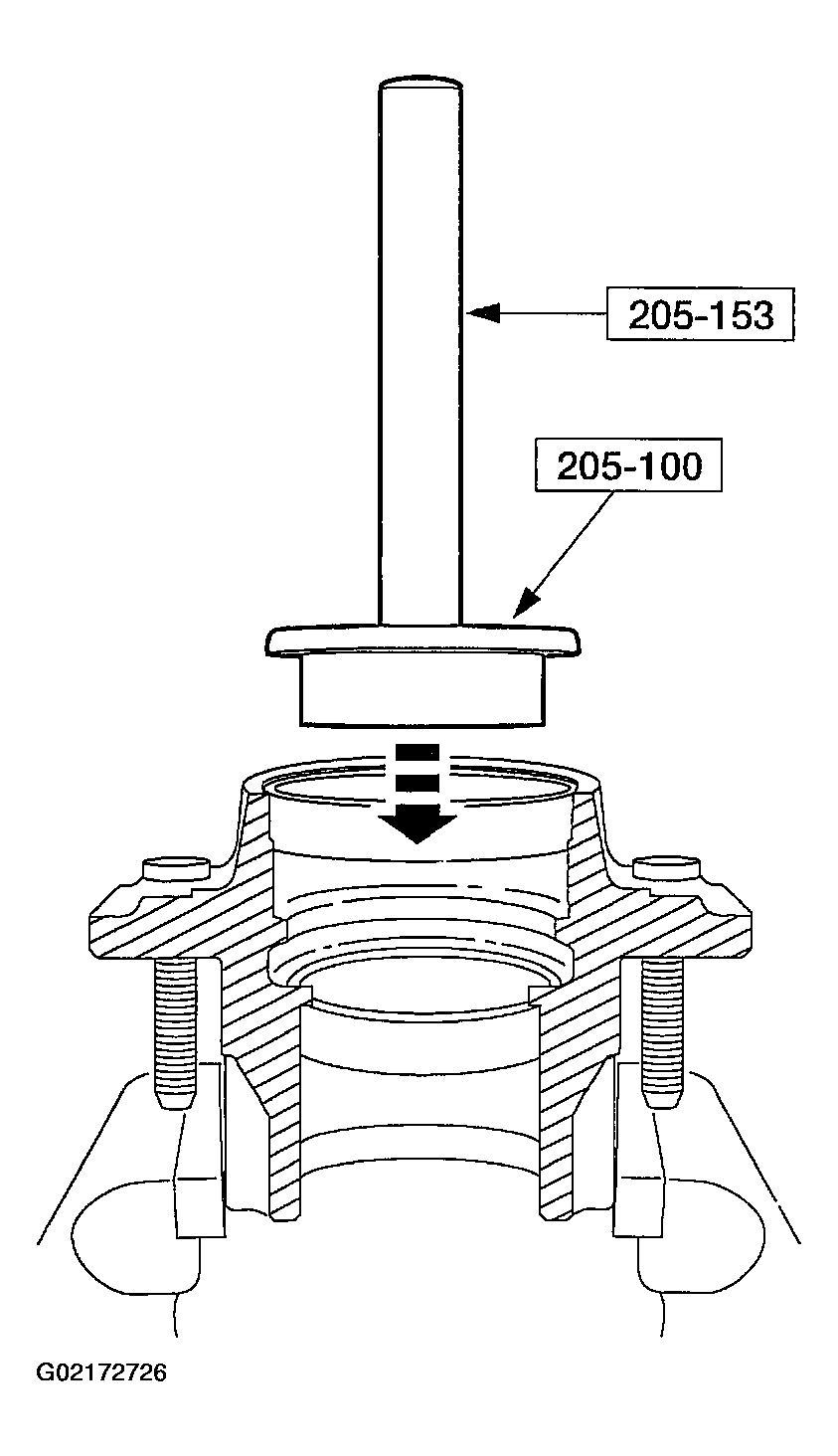

Reposition the hub facing downward. Position the inner bearing cup in the hub bore and place the special tools on the bearing cup.

Fig 3: Positioning Hub Facing Downward
Courtesy of FORD MOTOR CO.

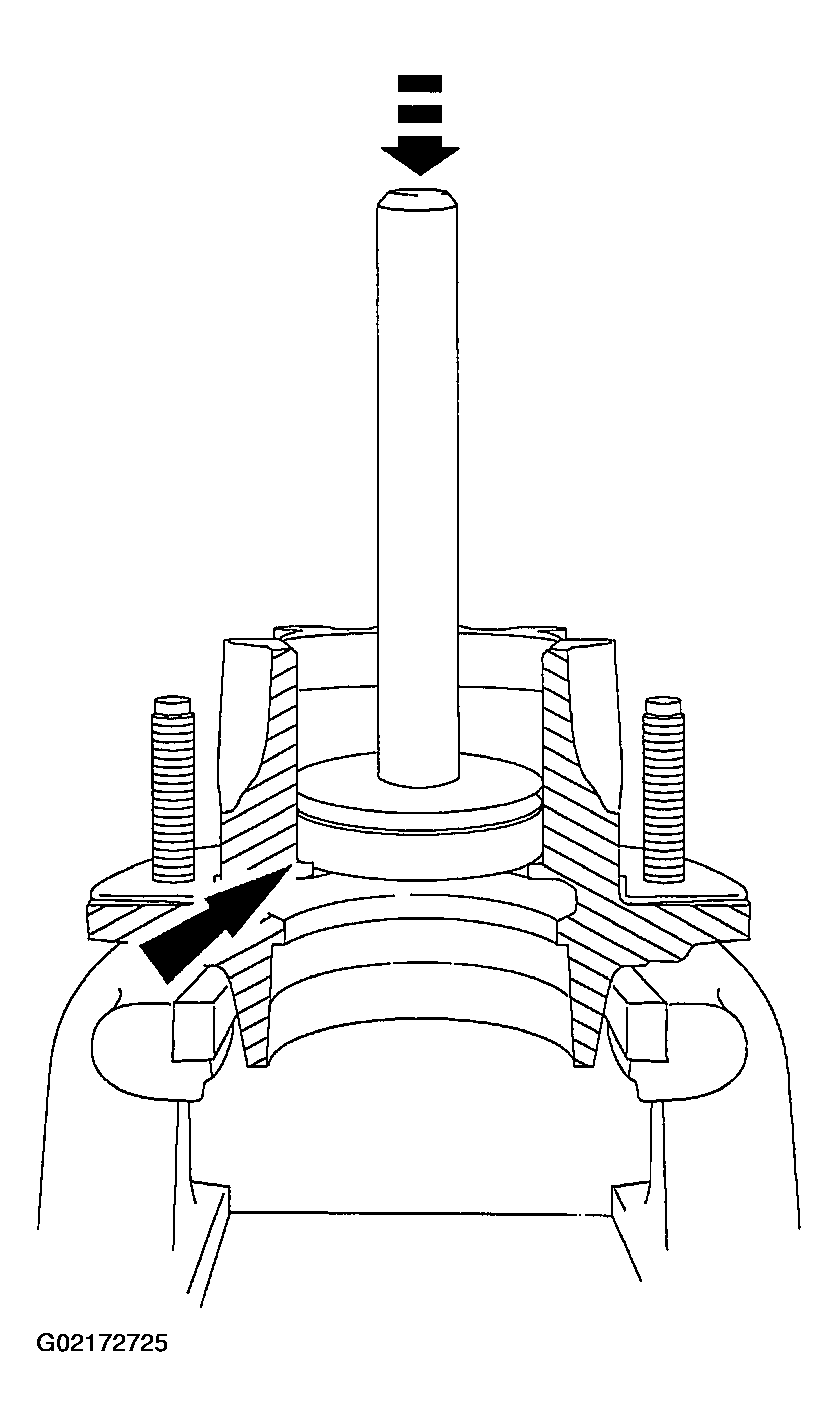

Drive the inner bearing cup into the fully seated position.

Fig 4: Installing Inner Bearing Cup
Courtesy of FORD MOTOR CO.

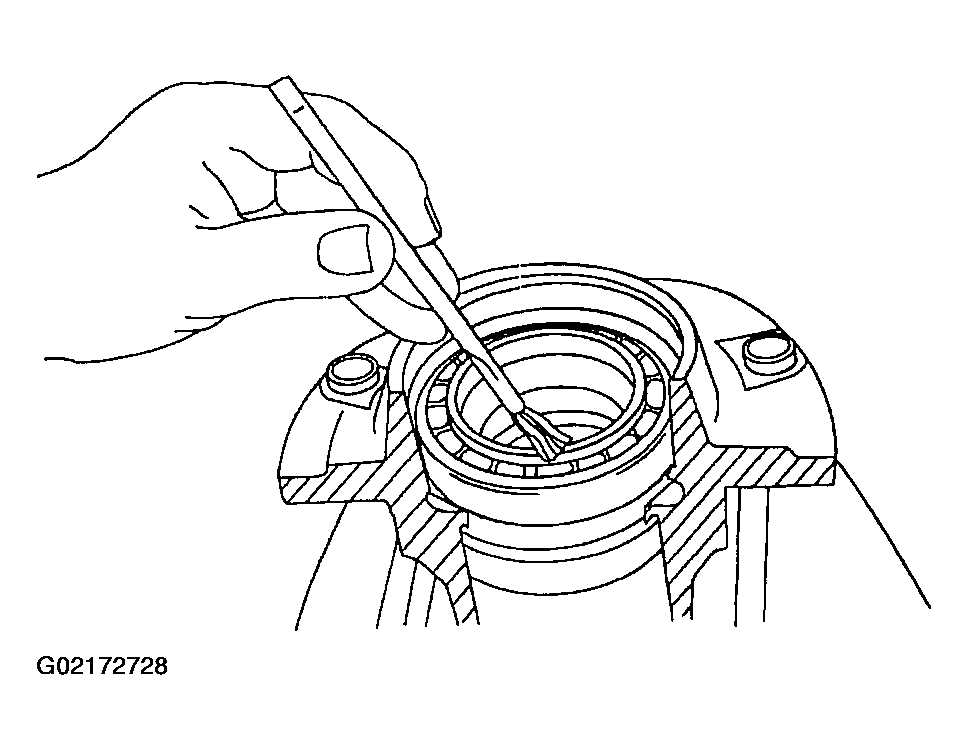

NOTE: The hub bearings must be prelubed with grease prior to installation. Pack each bearing with a bearing packing tool. Also apply grease to the thrust surface of the bearing. Use Premium Long-Life Grease XG-1-C or equivalent meeting Ford specification ESA-M1C75-B.

Fig 5: Applying Grease To Thrust Surface Of Bearing

Courtesy of FORD MOTOR CO.

Position the greased inner bearing in the inner bearing cup.

NOTE: The grease on the bearing and slinger holds the slinger in position during seal installation.

Fig 6: Installing Bearing Seal

Courtesy of FORD MOTOR CO.

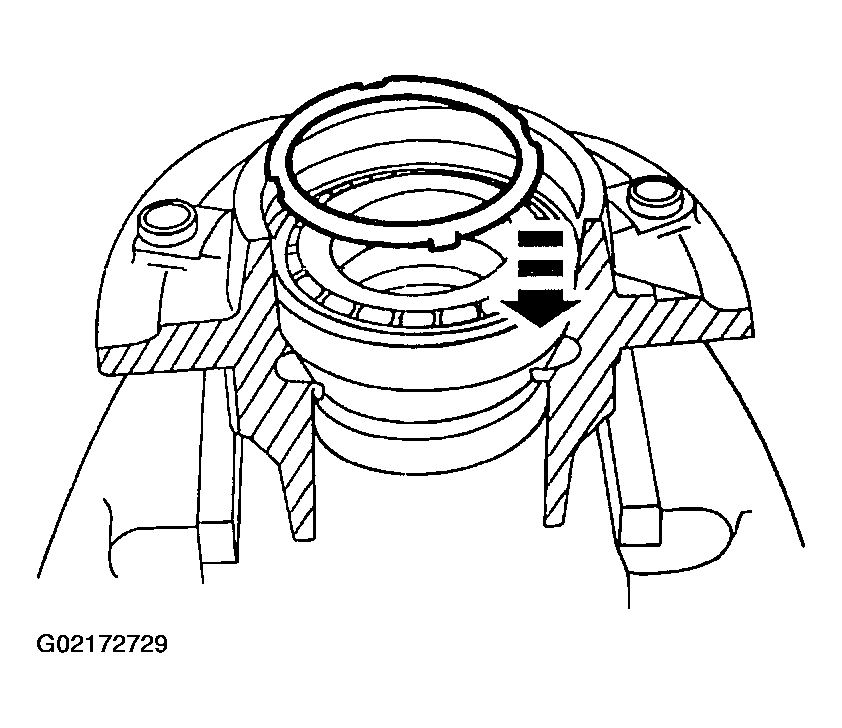

Position the slinger on the greased bearing with the tangs facing the bearing.

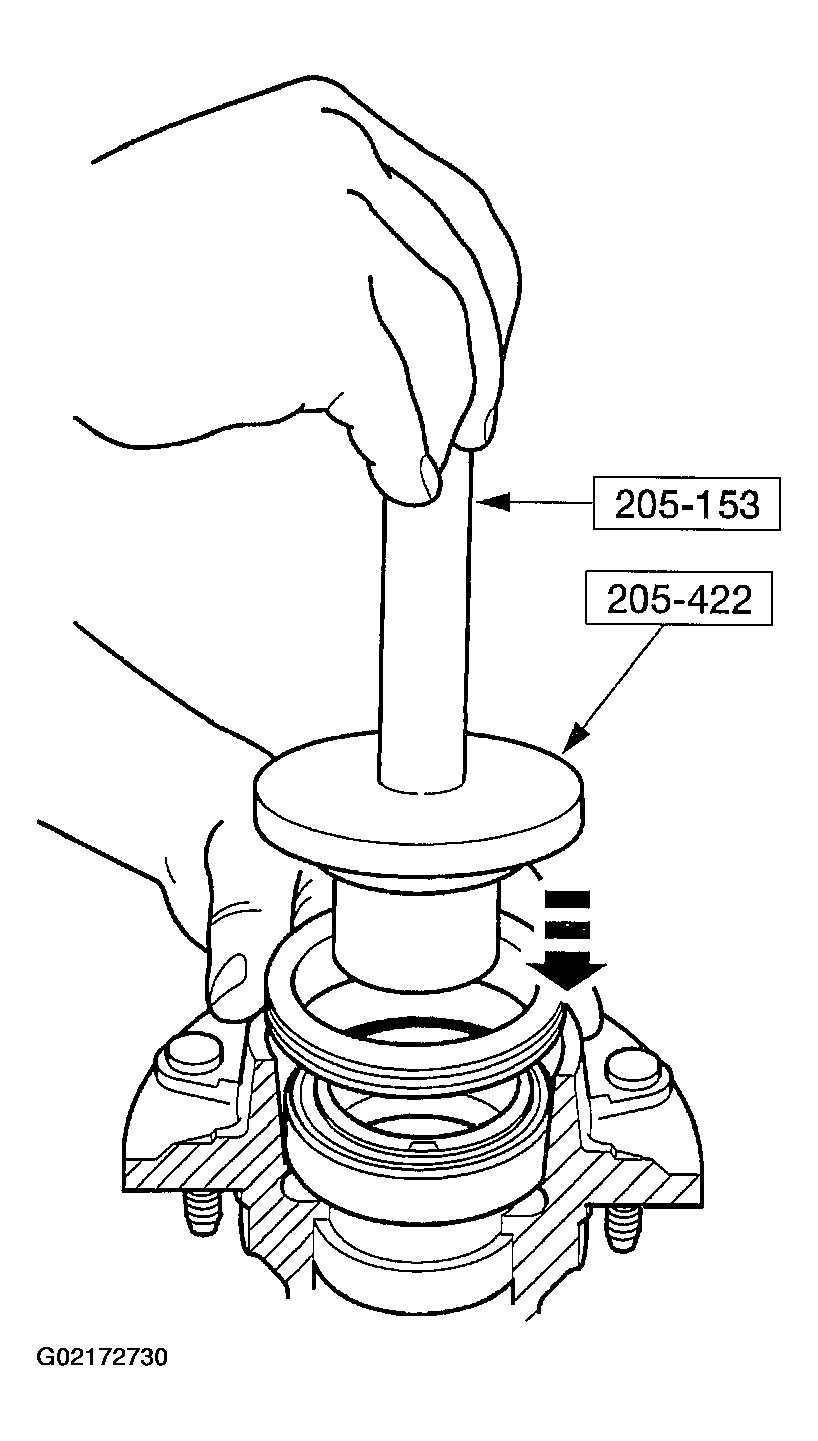

With the slinger in place, position the hub seal in the hub bore and place the special tools on the hub seal.

Fig 7: Positioning Hub Seal In Hub Bore
Courtesy of FORD MOTOR CO.
Holding the tool straight, drive the hub seal into position so that the seal flange bottoms out in the hub.

Fig 8: Installing Hub Seal
Courtesy of FORD MOTOR CO.
